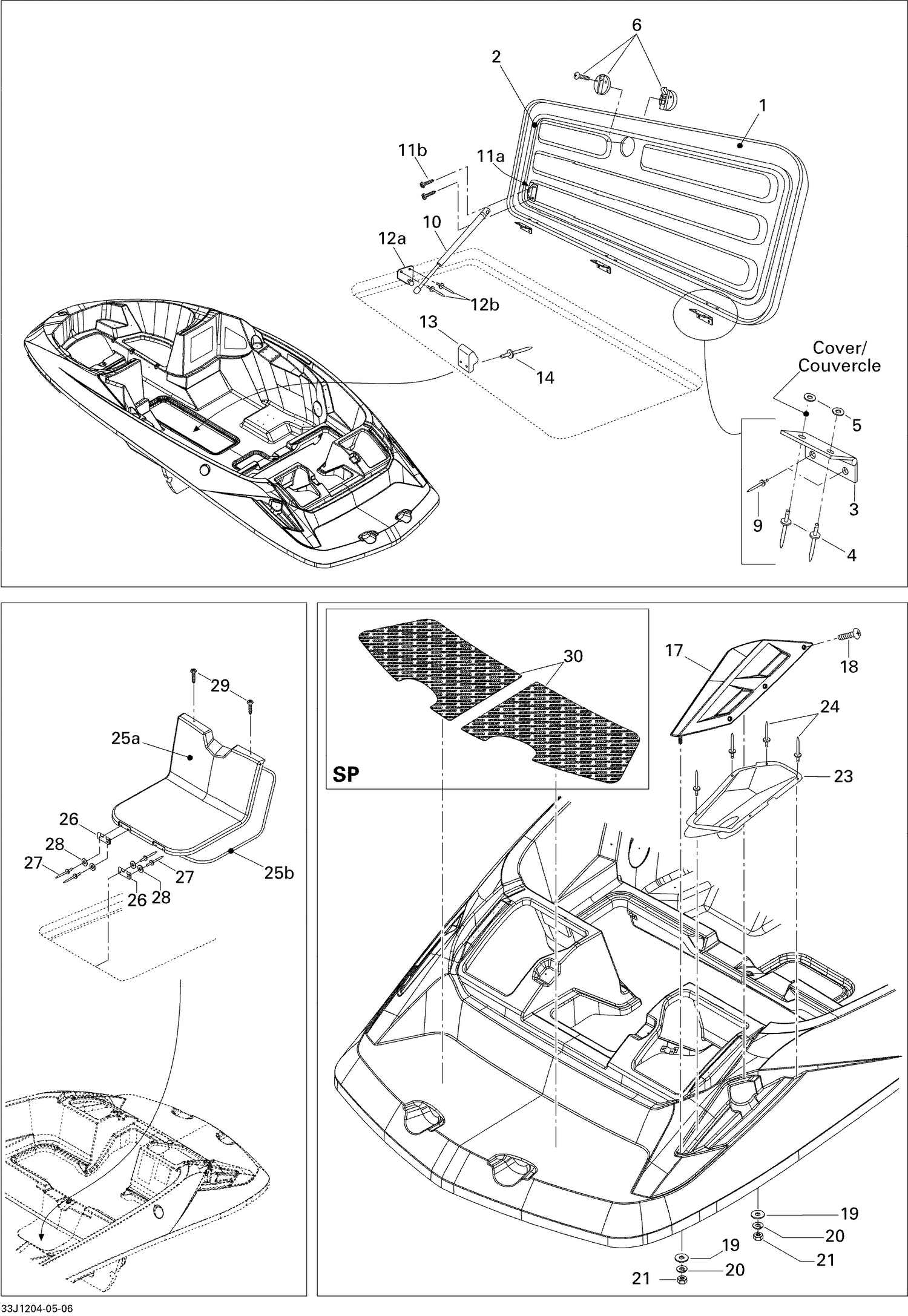

| Ref | Part Number | Description |
|---|
| 1 |
291003483 |
CENTER COVER - Call your local BRP dealership |
| 2 |
293200032 |
TRAY SEAL, METER - Call your local BRP dealership |
| 3 |
204072601 |
HINGE - Call your local BRP dealership |
| 4 |
293150037 |
Avdel Rivet 3/16" |
| 5 |
234051600 |
Flat Washer M5, Stainless |
| 6 |
204073347 |
LATCH ASS'Y - Call your local BRP dealership |
| 9 |
293150088 |
Pop Rivet 3/16" |
| 10 |
204072218 |
GAS SHOCK - Call your local BRP dealership |
| 11a |
204073074 |
Shock Bracket |
| 11b |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 12a |
204072219 |
RH SHOCK BRACKET - Call your local BRP dealership |
| 12b |
293150043 |
Pop Rivet 3/16" |
| 13 |
204070050 |
LATCH BRACKET - Call your local BRP dealership |
| 14 |
293150029 |
RIVET_POP 5/32 - Call your local BRP dealership |
| 18 |
204100154 |
PHILLIPS SCREW 1 - Call your local BRP dealership |
| 19 |
211200019 |
FLAT WASHER - Call your local BRP dealership |
| 20 |
211200025 |
Lock Washer 1/4” |
| 21 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 24 |
293150036 |
RIVET_POP 1/8 X ,750 - Call your local BRP dealership |
| 25a |
291003595 |
ACCESS DOOR - Call your local BRP dealership |
| 25b |
293200032 |
TRAY SEAL, METER - Call your local BRP dealership |
| 26 |
204072601 |
HINGE - Call your local BRP dealership |
| 27 |
293150037 |
Avdel Rivet 3/16" |
| 28 |
234051600 |
Flat Washer M5, Stainless |
| 29 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
