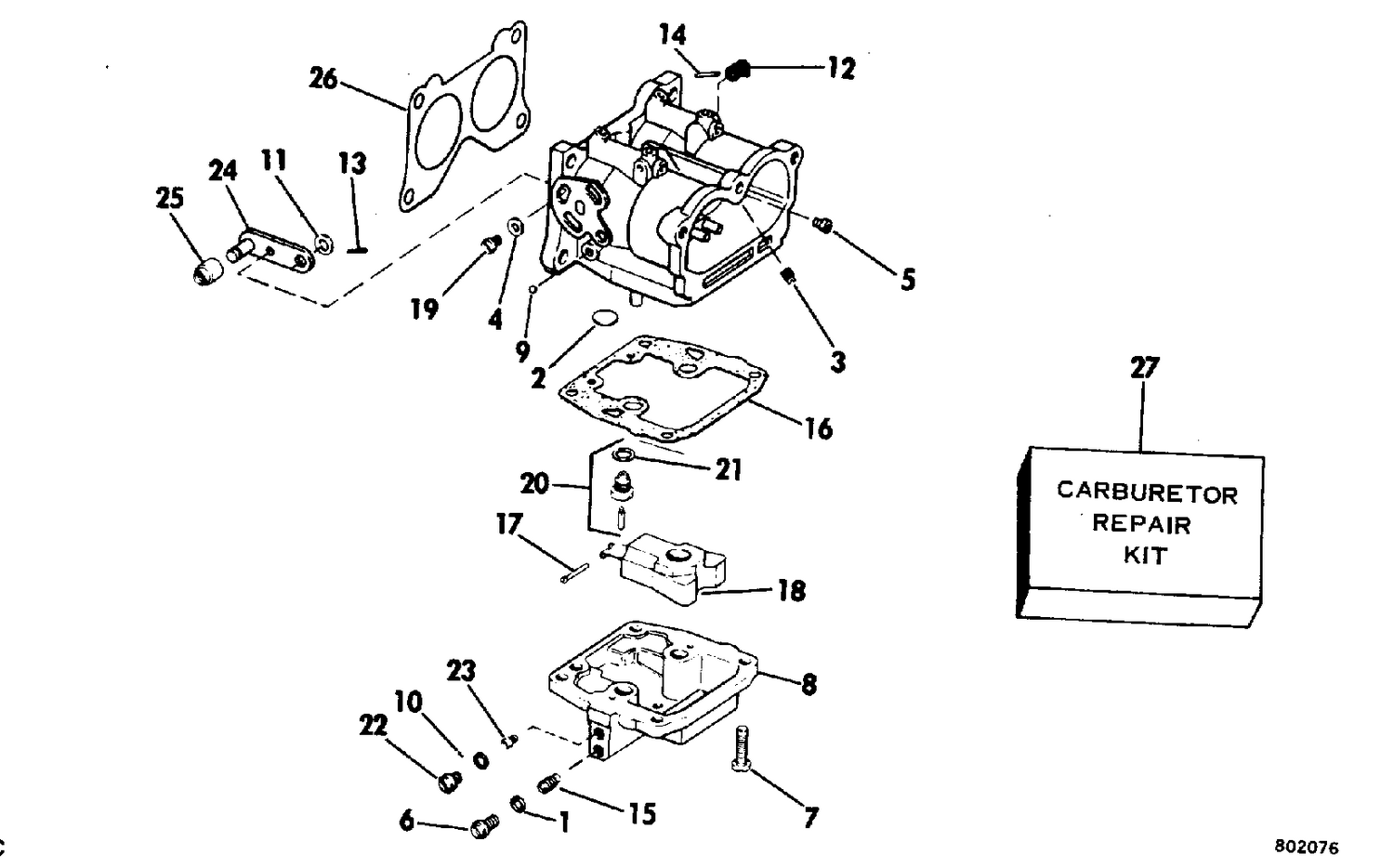

| Ref | Part Number | Description |
|---|
| 6 |
0330131 |
CLAMP, Fuel filter This part replaces 0323783. |
| 8 |
0391755 |
FLOAT CHAMBER ASSY |
| 15 |
0317607 |
ORIFICE PLUG |
| 15 |
0321449 |
ORIFICE PLUG 175 ONLY, No. 60c |
| 16 |
0338884 |
GASKET, Float bowl This part replaces 0323784. |
| 18 |
0383437 |
FLOAT ASSEMBLY |
| 22 |
0317501 |
SCREW PLUG, Orifice |
| 23 |
0322776 |
ORIFICE 150 only |
| 26 |
0327707 |
GASKET, Air silencer |
| 0392602 |
0392602 |
CARB ASSY., Lower 150 only |
| 0392603 |
0392603 |
CARB ASSY., Middle 150 only |
| 0392604 |
0392604 |
CARB ASSY., Lower 175 only |
| 0392605 |
0392605 |
CARB ASSY., Middle 175 only |
| 0392606 |
0392606 |
CARB ASSY., Lower 200 only |
| 0392607 |
0392607 |
CARB ASSY. middle 200 only |
| 0392608 |
0392608 |
CARB ASSY., Lower 235 only |
| 0392609 |
0392609 |
CARB ASSY., Middle 235 only |
