| Ref | Part Number | Description |
|---|
| 3 |
0319682 |
VIS, capteur vers plaque |
| 3 |
0329513 |
SCREW, Float bowl |
| 14 |
0320287 |
ADJUSTMENT LEVER |
| 17 |
0315232 |
RETAINER , Needle valve stbd |
| 18 |
0439383 |
FLOAT CHAMBER This part replaces 0393131. |
| 19 |
0328544 |
ORIFICE PLUG, (No. 63D) |
| 23 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 25 |
0432761 |
NEEDLE VALVE, Slow speed This part replaces 0393022. |
| 26 |
0313329 |
LOCKWASHER, Carburetor link |
| 27 |
0325092 |
GASKET |
| 28 |
0316355 |
BUT, Carburetor mounting |
| 29 |
0328063 |
ADJUSTING KNOB, Slow speed |
| 30 |
0328907 |
COLLIER, amorçage vers support |
| 34 |
0329594 |
SCREW, Cam follower |
| 0393977 |
0393977 |

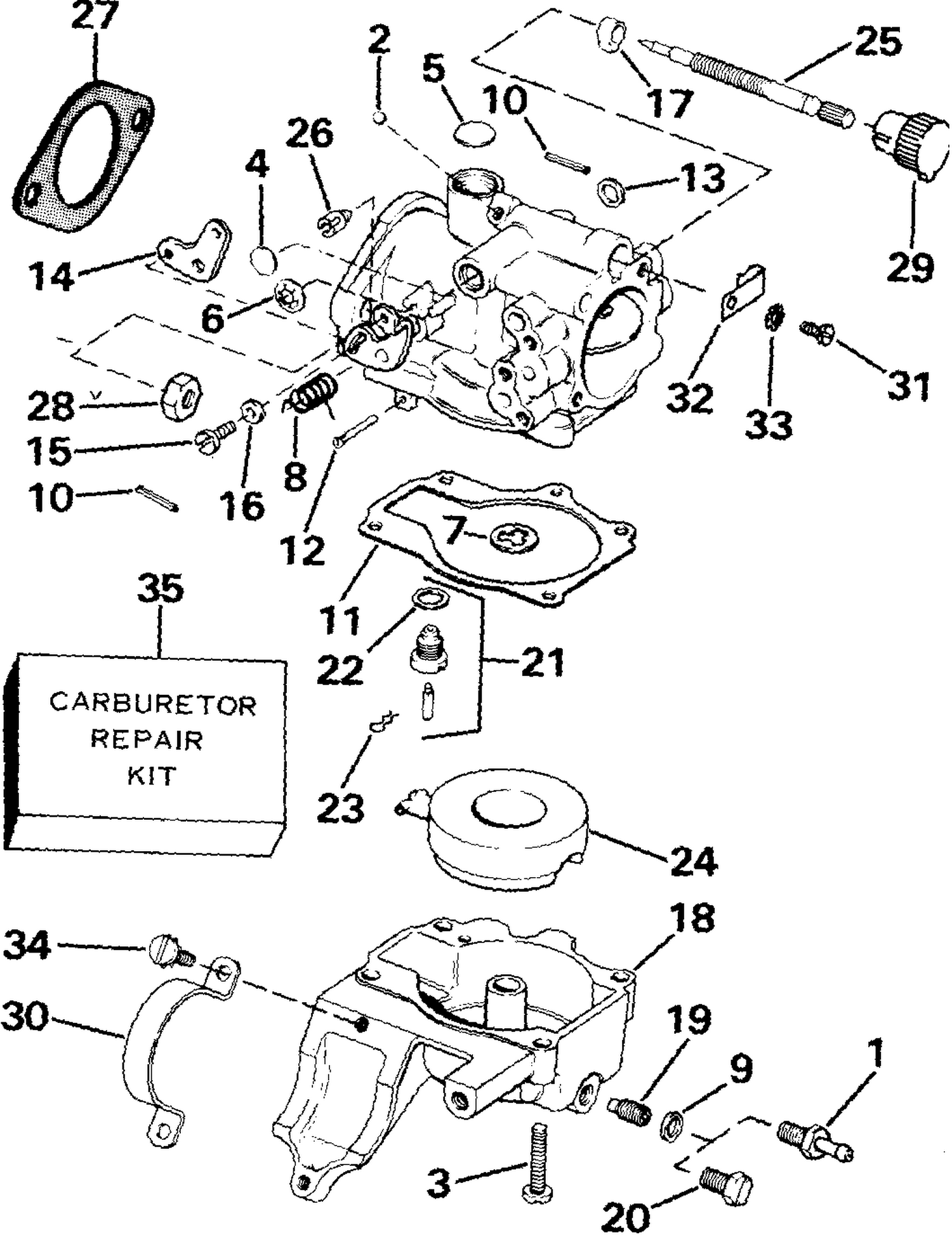

CARBURETOR ASSY. |
