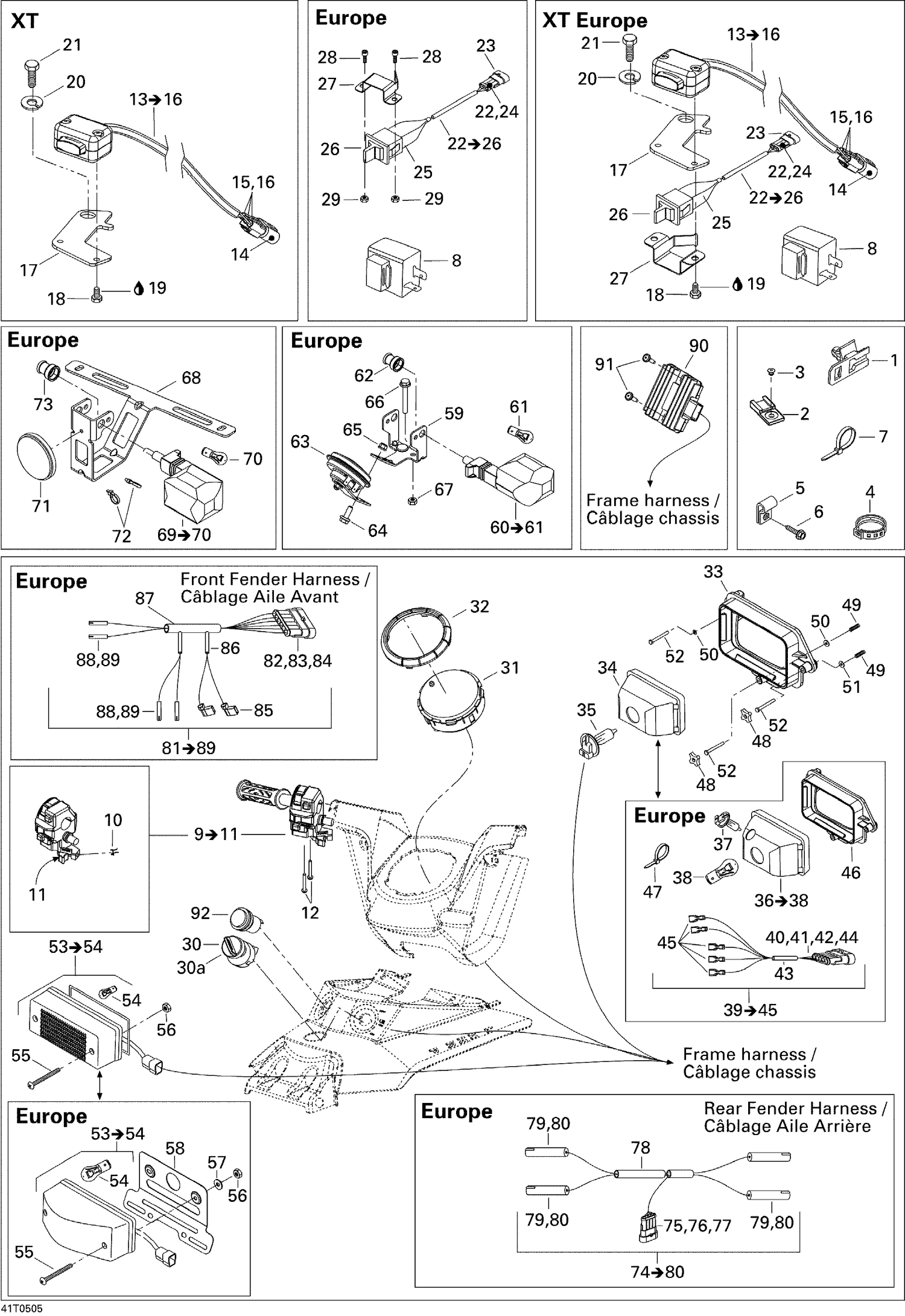

| Ref | Part Number | Description |
|---|
| 1 |
515175283 |
Housing Support |
| 2 |
270000141 |
Clip |
| 3 |
390402400 |
Pop Rivet 3/16" |
| 4 |
293650100 |
Oetiker Clamp |
| 5 |
705600311 |
CLAMP - Call your local BRP dealership |
| 6 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 7 |
293750001 |
Tie Wrap 94 mm |
| 7 |
293750002 |
Tie Wrap 142 mm |
| 7 |
293750008 |
Tie Wrap 368 mm |
| 7 |
293750009 |
Tie-Rap 173 mm |
| 7 |
414115200 |
Tie-Rap 180 mm |
| 10 |
710000631 |
CLIP - Call your local BRP dealership |
| 11 |
710000632 |
CHOKE LEVER - Call your local BRP dealership |
| 12 |
205053588 |
Socket Head Screw M5 X 35 |
| 19 |
293800060 |
Loctite 243, 10 ml |
| 30 |
710007867 |
Switch_Ignition This part replaces 710000238. |
| 30a |
715900019 |
Key, Groove on Left Side |
| 30a |
715900029 |
Key, Groove on Right Side |
| 31 |
710000805 |
SPEEDOMETER - Call your local BRP dealership |
| 32 |
710000353 |
TRIM RING - Call your local BRP dealership |
| 33 |
710000236 |
RH Headlight Support |
| 33 |
710000277 |
LH HEADLIGHT SUPPORT - Call your local BRP dealership |
| 34 |
705000284 |
LAMP HOUSING - Call your local BRP dealership |
| 35 |
710000176 |
BULB - Call your local BRP dealership |
| 48 |
572106600 |
Handle |
| 49 |
710000285 |
SPRING - Call your local BRP dealership |
| 50 |
234042600 |
Flat Washer 4 mm, Stainless |
| 51 |
234040600 |
Flat Washer 4 mm |
| 52 |
250000008 |
HEX. SCREW K40 X 40 - Call your local BRP dealership |
| 54 |
520000758 |
Bulb This part replaces 410504100. |
| 55 |
208656091 |
PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership |
| 56 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 91 |
210262050 |
Hexagonal Head Screw This part replaces 210262080. |
