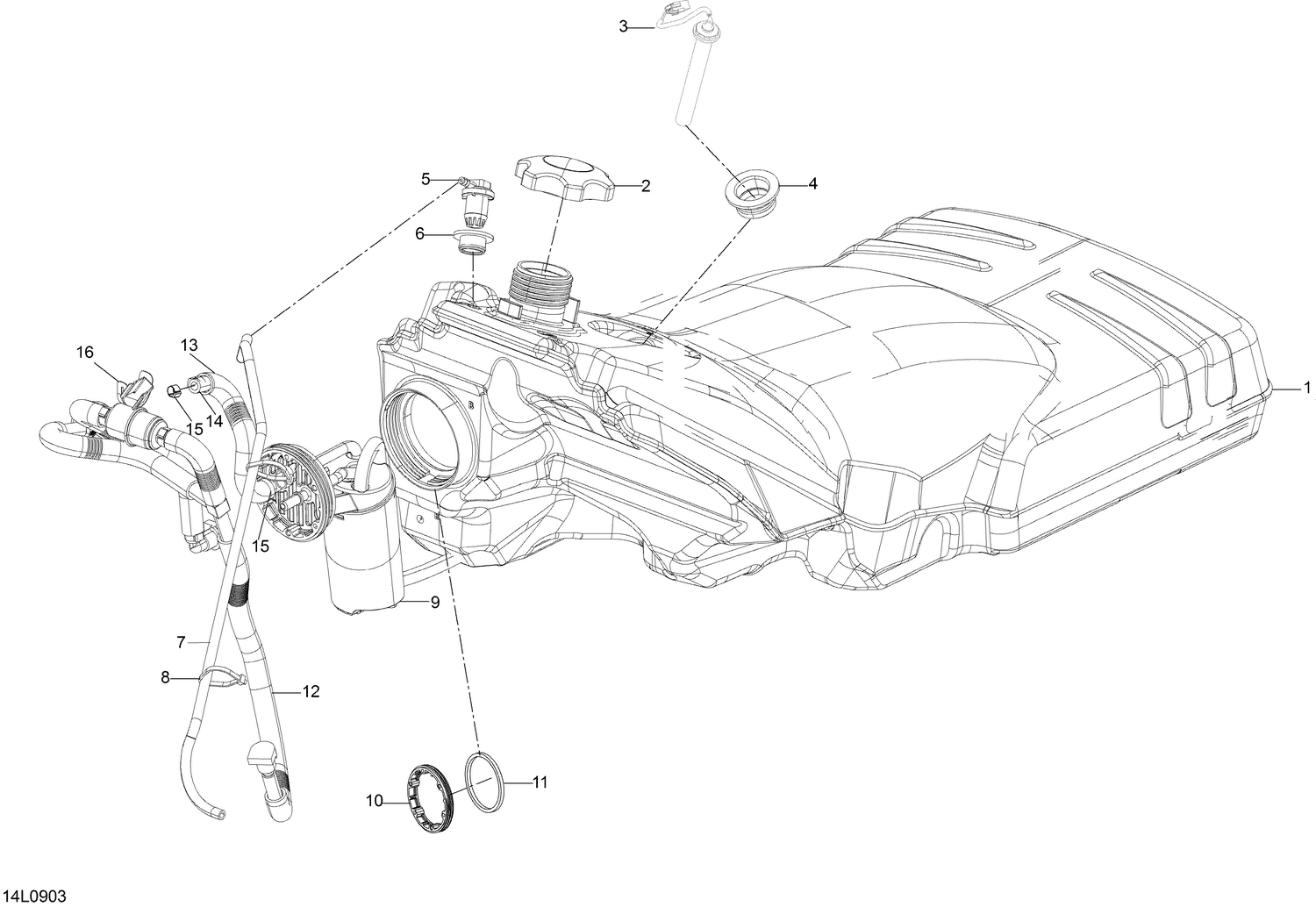

02- Fuel System
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513033386 | FUEL TANK - Call your local BRP dealership |
| 2 | 513033025 | Cap |
| 3 | 513033538 | Fuel sensor |
| 4 | 293720058 | Grommet |
| 5 | 513033842 | Check Valve This part replaces 513033188. |
| 6 | 513033596 | Grommet This part replaces 513033189. |
| 7 | 513033558 | HOSE |
| 8 | 414115200 | Tie-Rap 180 mm |
| 9 | 513034262 | NEEDS DESCRIPTION This part replaces 513033508. |
| 10 | 513033180 | Ring |
| 11 | 513033334 | Gasket |
| 12 | 513033430 | HOSE ASS`Y FUEL DELIVERY - Call your local BRP dealership |
| 13 | 513033231 | Protector tube |
| 14 | 513033544 | FORMED HOSE - Call your local BRP dealership |
| 15 | 293650047 | Crimp Clamp, 15.3-706R |
