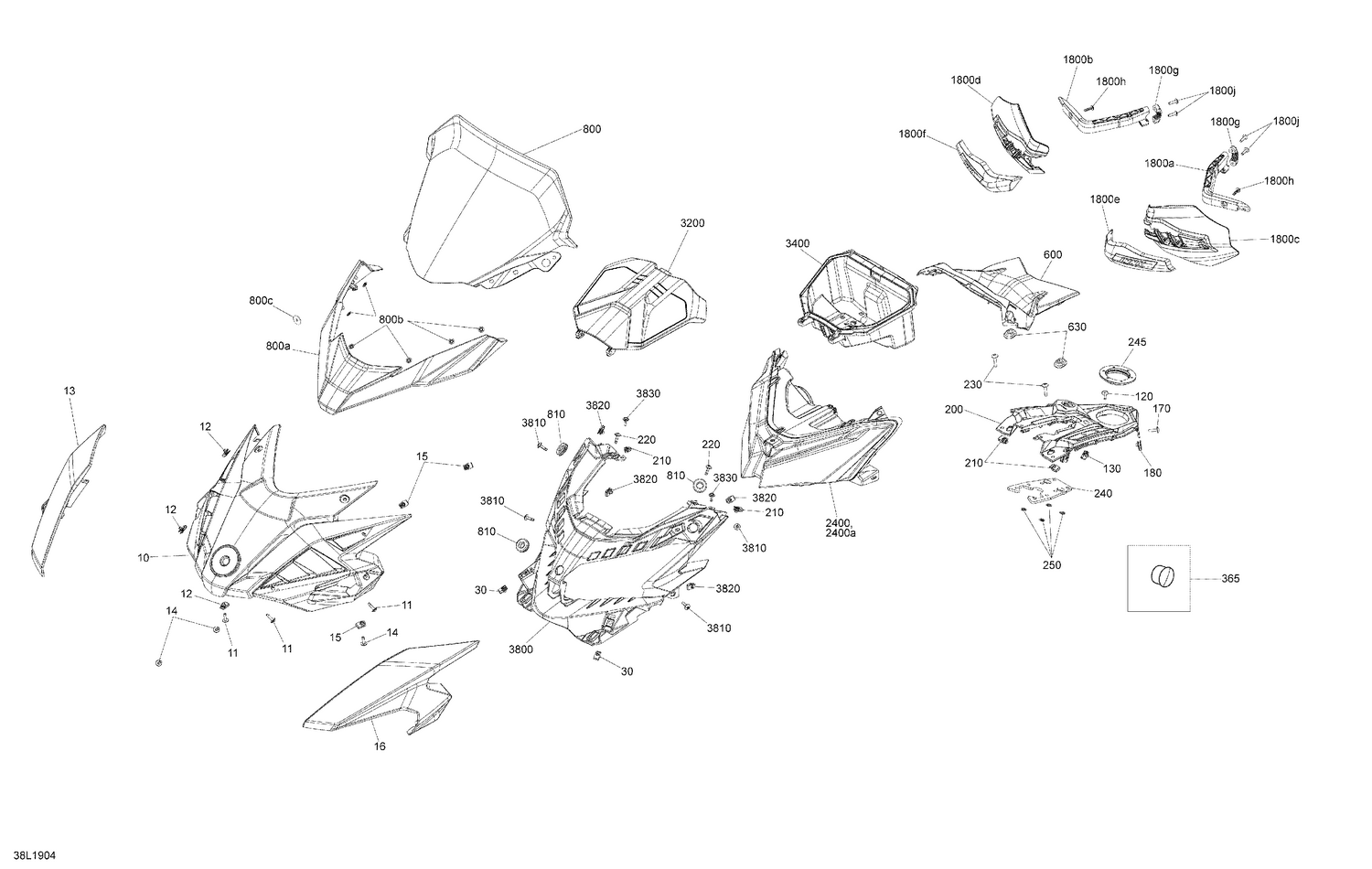

09- Hood - Front Section
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 517306115 | Middle Hood |
| 11 | 250000528 | Torx Screw M5 X 20 |
| 12 | 250000958 | Panel Nut M5 X 0.8 |
| 13 | 517306604 | White, RH Front Hood |
| 14 | 250000528 | Torx Screw M5 X 20 |
| 15 | 250000958 | Panel Nut M5 X 0.8 |
| 16 | 517306605 | White, LH Front Hood |
| 30 | 250000958 | Panel Nut M5 X 0.8 |
| 120 | 250000528 | Torx Screw M5 X 20 |
| 130 | 250000958 | Panel Nut M5 X 0.8 |
| 170 | 250000528 | Torx Screw M5 X 20 |
| 180 | 250000958 | Panel Nut M5 X 0.8 |
| 200 | 517306712 | Console Rear |
| 210 | 250000958 | Panel Nut M5 X 0.8 |
| 220 | 250000528 | Torx Screw M5 X 20 |
| 230 | 250000587 | Torx Screw M5 X 26 |
| 240 | 517306398 | Foam Console |
| 245 | 517304518 | Console Nut |
| 250 | 732610072 | Push Nut |
| 800a | 517306187 | Wind Deflector |
| 800b | 732610072 | Push Nut |
| 800c | 250200024 | Rubber Washer 5 mm |
| 810 | 517303756 | Grommet |
| 2400a | 415130081 | Bulb |
| 3200 | 517307562 | Cover Ass'y This part replaces 517305871. |
| 3400 | 517306058 | Trunk Ass'y |
| 3800 | 517306186 | Bezel - Head Lamp Blk |
| 3810 | 250000528 | Torx Screw M5 X 20 |
| 3820 | 250000958 | Panel Nut M5 X 0.8 |
