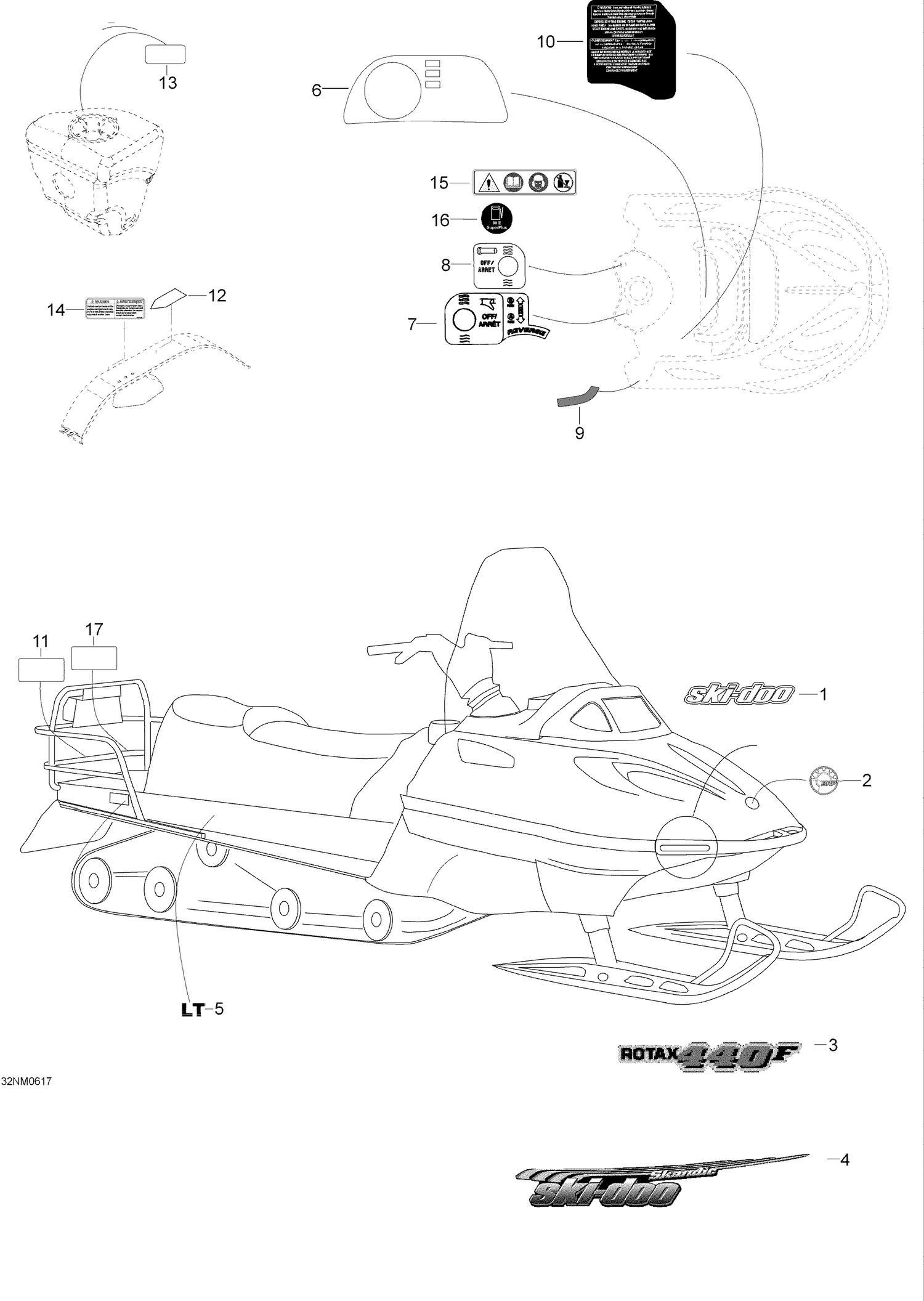

09- Decals
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 516002711 | SKI-DOO Decal |
| 2 | 516008738 | BRP Logo 48mm This part replaces 219902468. |
| 3 | 516002318 | Decal Rotax |
| 4 | 516002319 | Side Decal RH |
| 4 | 516002320 | Side Decal LH |
| 5 | 516000912 | Frame Decal |
| 6 | 516000913 | Dash Decal |
| 7 | 516000262 | Heating Thumb Decal |
| 8 | 414898500 | Heatgrip Decal |
| 9 | 516000236 | Refl. Decal |
| 10 | 516001267 | Starting Security Label |
| 11 | 516001243 | Security Label, Hitch |
| 12 | 516002670 | WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership This part replaces 516001190. |
| 13 | 516002715 | CAUTION DECAL, AIR INTAKE - Call your local BRP dealership |
| 14 | 516001297 | Security Label, Hot Parts |
