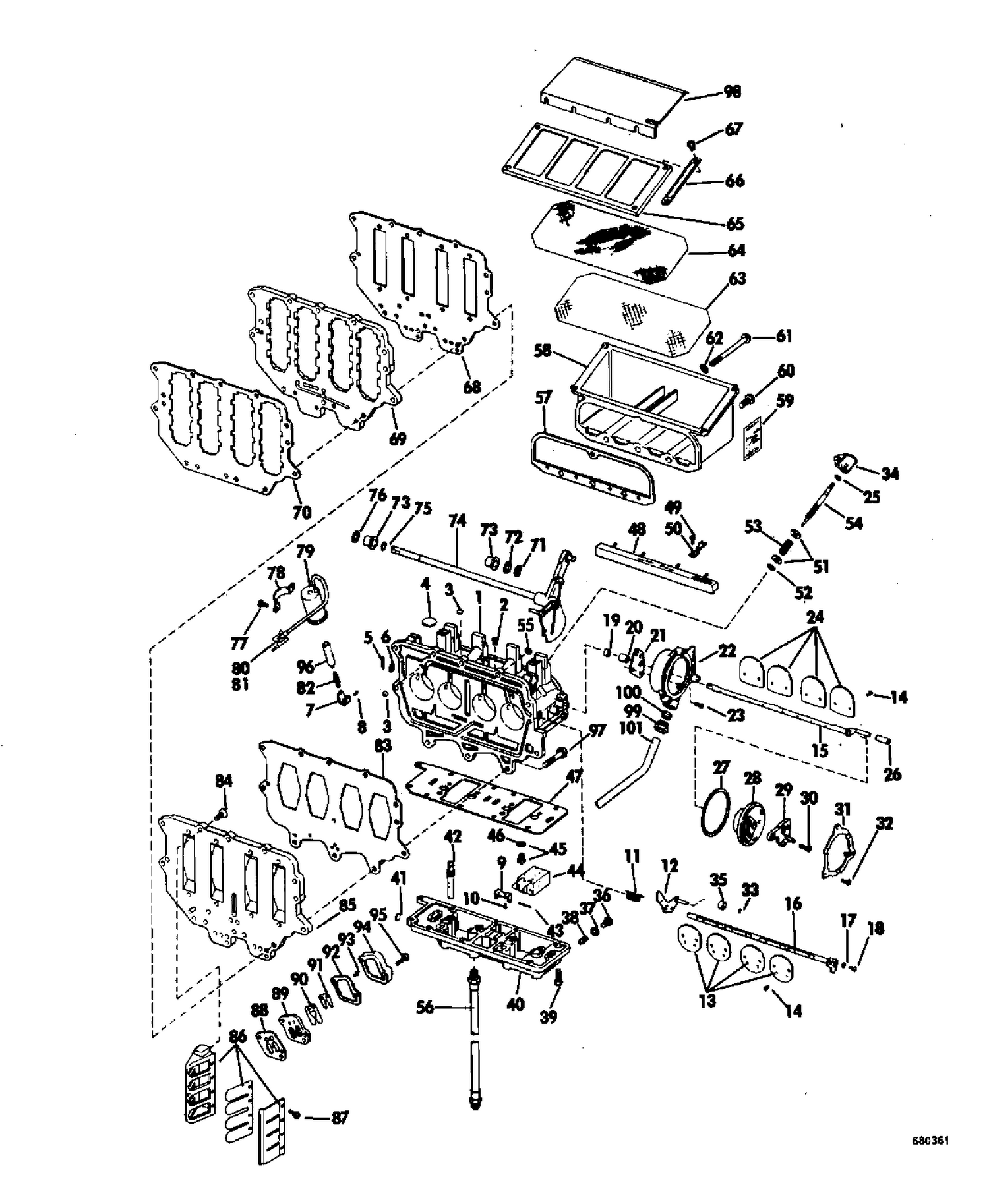

| Ref | Part Number | Description |
|---|
| 1 |
0379107 |
CARBURETOR BODY & PLUG ASSEMBLY |
| 7 |
0308882 |
CHOKE ARM |
| 8 |
0308893 |
SCREW |
| 9 |
0305223 |
HINGE |
| 10 |
0309650 |
DRIVE SCREW, Hinge |
| 12 |
0378757 |
CAM FOLLOWER ASSY |
| 13 |
0308885 |
THROTTLE VALVE |
| 15 |
0378748 |
CHOKE SHAFT & ARM ASSY |
| 21 |
0308750 |
GASKET |
| 22 |
0308772 |
HOUSING-AUTOMATIC CHOKE |
| 26 |
0308773 |
SLEEVE |
| 27 |
0380652 |
RETAINER |
| 28 |
0378747 |
AUSTOMATIC CHOKE ASSY |
| 29 |
0310537 |
KNOB |
| 30 |
0307466 |
SCRES, Bowl to body |
| 31 |
0380652 |
RETAINER |
| 32 |
0303212 |
VIS, collier & capot |
| 33 |
0307529 |
JOINT TORIQUE, galet vers contre-came |
| 34 |
0308719 |
KNOB |
| 35 |
0310354 |
ROLLER |
| 36 |
0307832 |
PLUG, Screw |
| 39 |
0307466 |
SCRES, Bowl to body |
| 40 |
0379103 |
FLOAT BOWL & PLUG ASSY |
| 42 |
0308976 |
NOZZLE |
| 44 |
0378654 |
FLOAT & FLOAT ARM |
| 47 |
0308508 |
GASKET |
| 48 |
0308718 |
LINK |
| 49 |
0306373 |
COTTER PIN, Reverse lock |
| 50 |
0308764 |
FRICTION SPRING |
| 51 |
0308894 |
WASHER |
| 54 |
0310573 |
NEEDLE VALVE |
| 55 |
0306407 |
LOCCKWASHER,Cover latch |
| 56 |
0379602 |
HOSE ASSEMBLY |
| 57 |
0308761 |
GASKET |
| 58 |
0308758 |
HOUSING-AIR INTAKE |
| 59 |
0309898 |
TRANSFER |
| 60 |
0319292 |
SCREW, Clamp This part replaces 0308762. |
| 61 |
0308763 |
SCREW-LONG |
| 62 |
0306358 |
FLAT WASHER, Helm mounting |
| 63 |
0303518 |
SPRING, Needle valve |
| 63 |
0308842 |
SUPPORT SCREEN |
| 64 |
0308841 |
SCREEN-SMALL MESH |
| 65 |
0308846 |
COVER |
| 66 |
0312765 |
PLATE |
| 67 |
0308691 |
SCREW |
| 68 |
0308724 |
CAP,Trunnion anchor |
| 69 |
0308721 |
SPACER |
| 70 |
0308723 |
GASKET |
| 71 |
0305234 |
BOW WASHER |
| 72 |
0303886 |
LOCKWASHER |
| 73 |
0308985 |
BUSHING |
| 74 |
0378752 |
THROTTLE CONTROL |
| 75 |
0308986 |
RETAINING RING |
| 76 |
0308987 |
WASHER |
| 77 |
0329594 |
SCREW, Cam follower This part replaces 0303737. |
| 78 |
0308944 |
YOKE |
| 79 |
0383598 |
SOLENOID ASSEMBLY This part replaces 0379558. |
| 82 |
0310774 |
SPRING |
| 83 |
0310603 |
GASKET |
| 84 |
0308720 |
SCREW |
| 85 |
0310602 |
BASE |
| 86 |
0381192 |
LEAF PLATE ASSEMBLY |
| 88 |
0309427 |
GAKSET, Drain valve |
| 89 |
0379093 |
DRAIN PLATE & SCREEN ASSEMBLY |
| 90 |
0302031 |
LEAF PLATE |
| 91 |
0304655 |
PLATE |
| 93 |
0303761 |
SCREW |
| 94 |
0302033 |
COVER |
| 95 |
0308709 |
SCREW |
| 96 |
0379678 |
PLUNGER-SOLENOID |
| 97 |
0308728 |
SCREW |
| 98 |
0310823 |
SHIELD-CARBURETOR |
| 99 |
0308760 |
COMPRESSION NUT |
| 100 |
0306327 |
BALL SLEEVE |
| 0379104 |
0379104 |
CARBURETOR & AUTOMATIC CHOKE ASSY |
