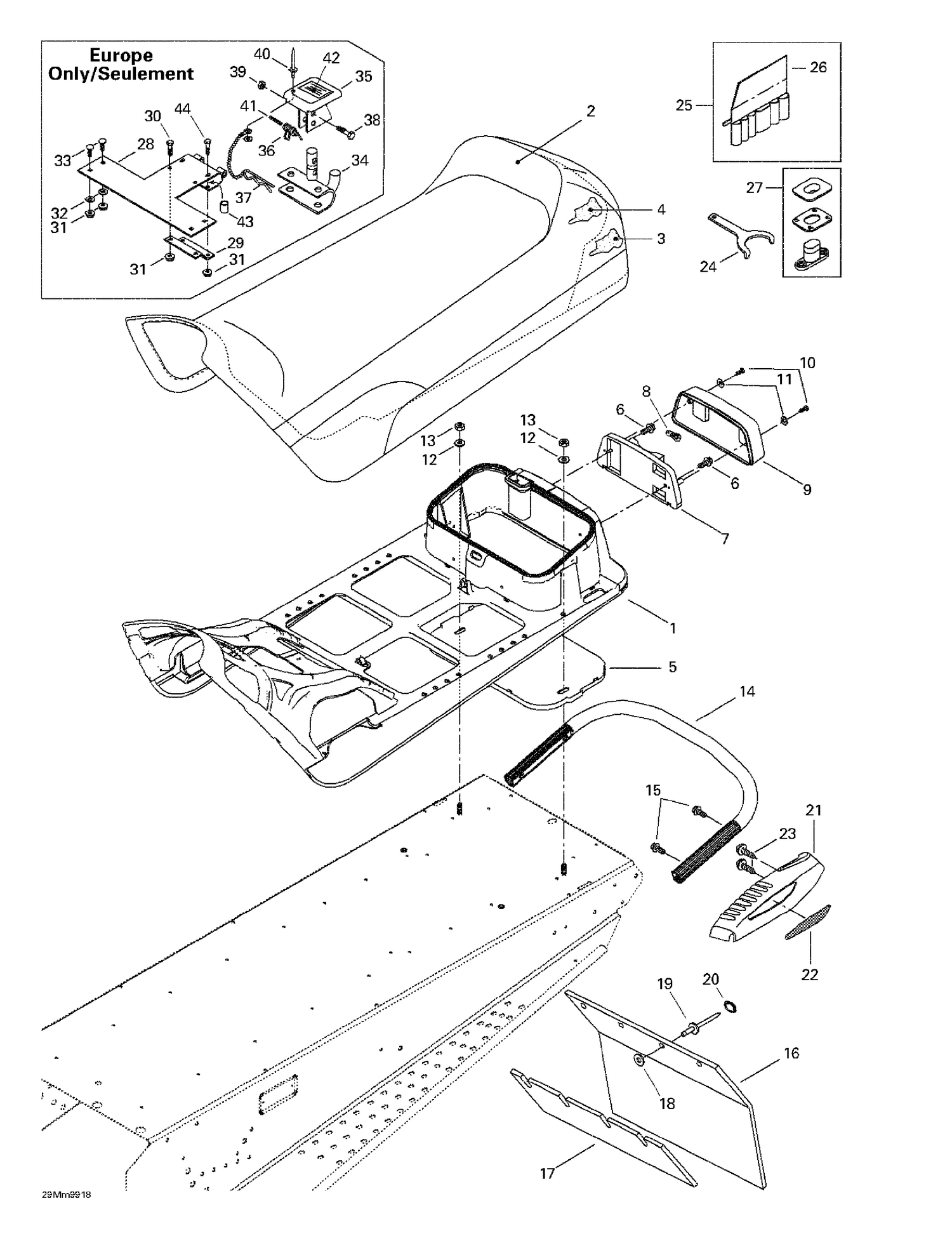

| Ref | Part Number | Description |
|---|
| 1 |
572107600 |
Seat Base |
| 2 |
510003636 |
Seat Cover |
| 3 |
510003608 |
Seat Foam |
| 4 |
510003500 |
Seat Foam |
| 5 |
572107601 |
UNDER CHEST - Call your local BRP dealership |
| 6 |
732603006 |
Hex. Screw #10 X 1" |
| 7 |
510004061 |
LIGHT HOUSING - Call your local BRP dealership This part replaces 414513600. |
| 8 |
520000758 |
Bulb This part replaces 410504000. |
| 9 |
414513700 |
Lens |
| 10 |
209632540 |
Phillips Tapping Screw M3.9 X 25 |
| 11 |
414516400 |
Washer - Call your local BRP dealership |
| 12 |
234082410 |
Flat Washer 8 mm This part replaces 224080251. |
| 13 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 14 |
518318200 |
REAR BUMPER - Call your local BRP dealership |
| 15 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 16 |
572092100 |
SNOW GUARD - Call your local BRP dealership |
| 17 |
572108200 |
REINFORCEMENT - Call your local BRP dealership |
| 18 |
517225900 |
Flat Washer |
| 19 |
293150100 |
Pop Rivet 3/16" This part replaces 390908000. |
| 20 |
415073300 |
Cap |
| 21 |
572097300 |
RH Moulding |
| 22 |
516000237 |
RH Reflector, Red |
| 23 |
365901100 |
HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 24 |
529000035 |
Adjustment Wrench This part replaces 529032900. |
| 26 |
520000047 |
Tool Bag |
| 27 |
414728000 |
SEAT BUCKLE - Call your local BRP dealership |
| 28 |
511000030 |
Fixation |
| 29 |
511000022 |
REINFORCEMENT - Call your local BRP dealership |
| 30 |
207161844 |
Hex. Screw M6 X 18 |
| 31 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 32 |
224061201 |
Flat Washer |
| 33 |
207762044 |
Carriage Bolt M6 X 20 |
| 34 |
517199300 |
Hitch |
| 35 |
517152700 |
Hitch Protector |
| 36 |
517152800 |
SPRING - Call your local BRP dealership |
| 37 |
114045200 |
Hair Pin |
| 38 |
207063044 |
Hex. Screw M6 X 30 This part replaces 222063065. |
| 39 |
232561434 |
Elastic Stop Nut M6 This part replaces 228561045. |
| 40 |
390409400 |
RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership |
| 41 |
732804000 |
SPRING PIN M3 X 24 - Call your local BRP dealership |
| 42 |
414998500 |
Instruction Label (Hitch) |
| 43 |
517191700 |
SPACER - Call your local BRP dealership |
| 516000238 |
LH |
Reflector, Red 516000238 |
| 516000238 |
Réflecteur |
GA, Rouge 516000238 |
| 516000241 |
Réflecteur |
DR, Jaune, Europe 516000241 |
| 516000241 |
RH |
Reflector, Yellow, Europe 516000241 |
| 516000242 |
LH |
Reflector, Yellow, Europe 516000242 |
| 516000242 |
Réflecteur |
GA, Jaune, Europe 516000242 |
| 517243800 |
Pare-Chocs |
Arrière 517243800 |
| 517243800 |
Rear |
Bumper 517243800 |
| 520000073 |
Snow |
Guard (Europe) 520000073 |
| 572097400 |
Enjoliveur |
GA 572097400 |
| 572097400 |
LH |
Moulding 572097400 |
