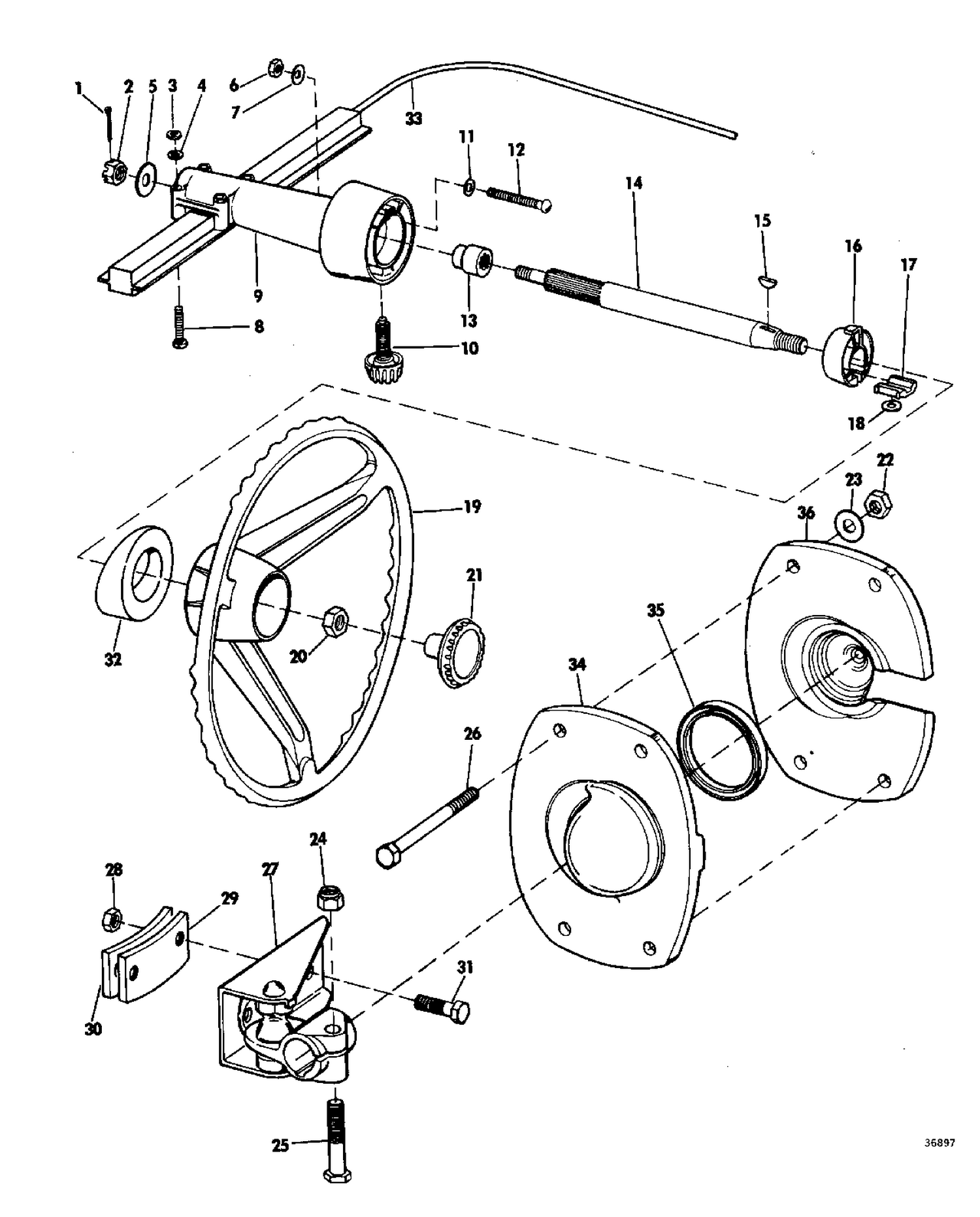

| Ref | Part Number | Description |
|---|
| 1 |
COTTER |
PIN |
| 9 |
0380178 |
SHAFT HOUSING |
| 10 |
0380179 |
BRAKE SCREW ASSEMBLY |
| 13 |
0311271 |
PINION BEARING |
| 14 |
0311272 |
PINION SHAFT |
| 16 |
0311273 |
BEARING, Helm |
| 17 |
0311274 |
BRAKE |
| 19 |
0311275 |
STEERING WHEEL,15-3/4" |
| 19 |
0312232 |
STEERING WHEEL,18" |
| 21 |
0311276 |
HUB,Cover |
| 25 |
0306427 |
BOLT |
| 26 |
0121675 |
BOLT,Hex head |
| 27 |
0171951 |
CABLE TERMINAL ASSEMBLY |
| 29 |
0121671 |
FRONT PLATE |
| 30 |
0121670 |
BACK PLATE |
| 31 |
0312207 |
BOLT,Hex head |
| 32 |
0380075 |
MOUNTING KIT ASSEMBLY 20 DEGREES STEERING |
| 33 |
0380510 |
RACK,Cable & transom plate assembly-10"to |
| 33 |
0380731 |
RACK,Cable & transom plate assembly-31' |
| 33 |
0380750 |
RACK,Cable & transom assembly-50' |
| 34 |
0121672 |
TRANSOM PLATE, Outer |
| 35 |
0121669 |
SEAL |
| 0380509 |
0380509 |
STEERING KIT ASSEMBLY,Complete |
| 0381022 |
0381022 |
TERMINAL KIT ASSY |
| 0381133 |
0381133 |
STEERING KIT ASSEMBLY,Complet |
| 0381167 |
0381167 |
BACKING PLATE ASSEMBLY |
