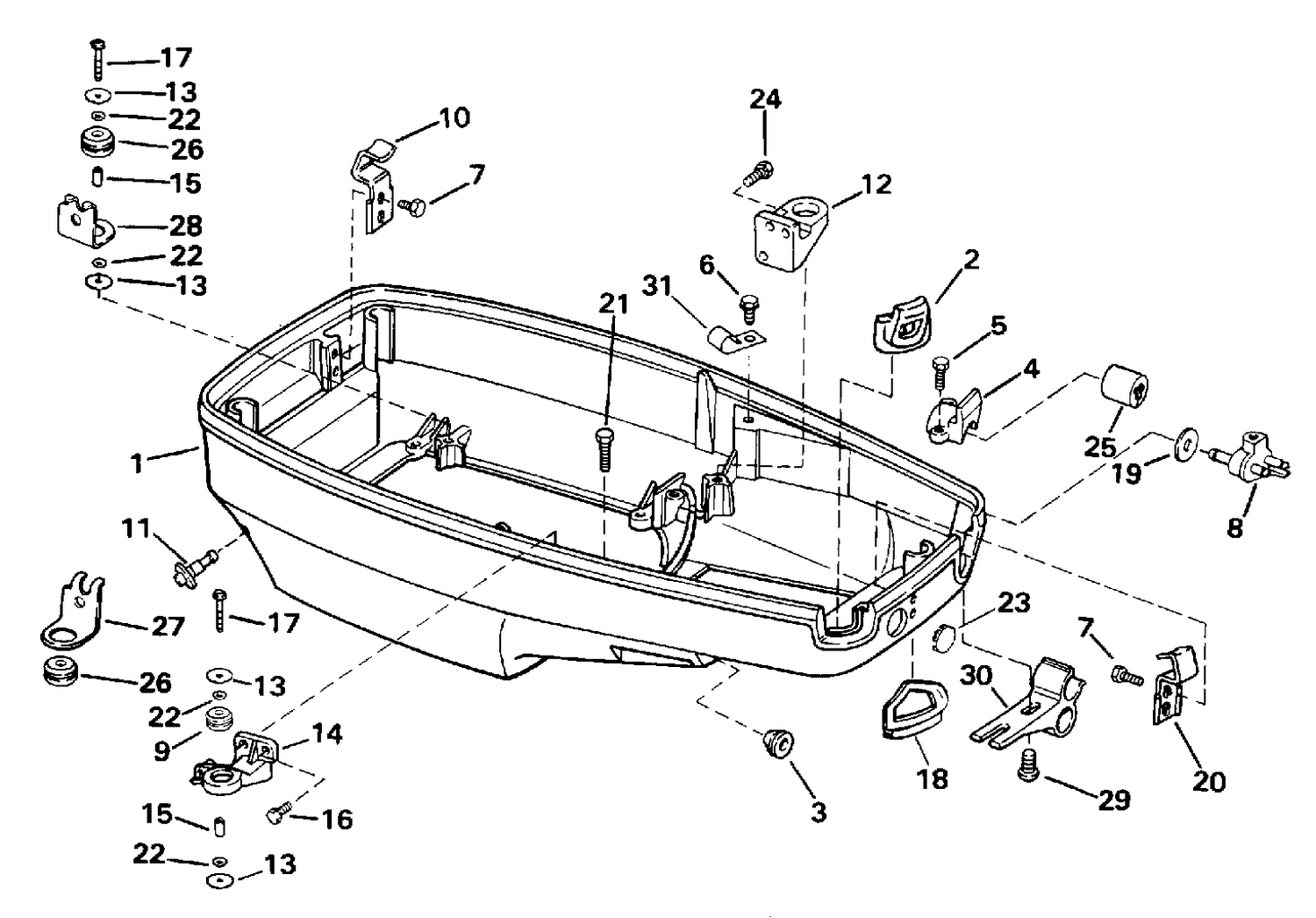

| Ref | Part Number | Description |
|---|
| 1 |
0397382 |
ENGINE COVER, Lower |
| 3 |
0336526 |
PLUG, Cover |
| 4 |
0318286 |
CLAMP |
| 5 |
0909533 |
SCREW, Pressure relief valve cover |
| 7 |
0304027 |
VIS, arbre de commande de sens de marche |
| 9 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 10 |
0323474 |
HOOK, Cover to housing |
| 11 |
0321885 |
NIPPLE |
| 12 |
0316002 |
SUPPORT, Front port |
| 14 |
0327196 |
SUPPORT, Front stbd |
| 15 |
0302406 |
SLEEVE |
| 16 |
0551793 |
SCREW |
| 18 |
0332169 |
SEAL, Steering arm |
| 19 |
0331533 |
JOINT, conn. carburant vers capot inférieur |
| 20 |
0208252 |
HOOK, Front |
| 23 |
0316337 |
PLUG |
| 24 |
0551793 |
SCREW |
| 26 |
0337505 |
GROMMET, Bracket |
| 27 |
0337504 |
BRACKET, Cyl. head to lower cover, starboard |
| 28 |
0337503 |
BRACKET, Cyl. head to lower cover, port |
| 29 |
0310539 |
SCREW, Clamp choke solenoid |
| 30 |
0333739 |
RETAINER, Fuel hose to cover |
