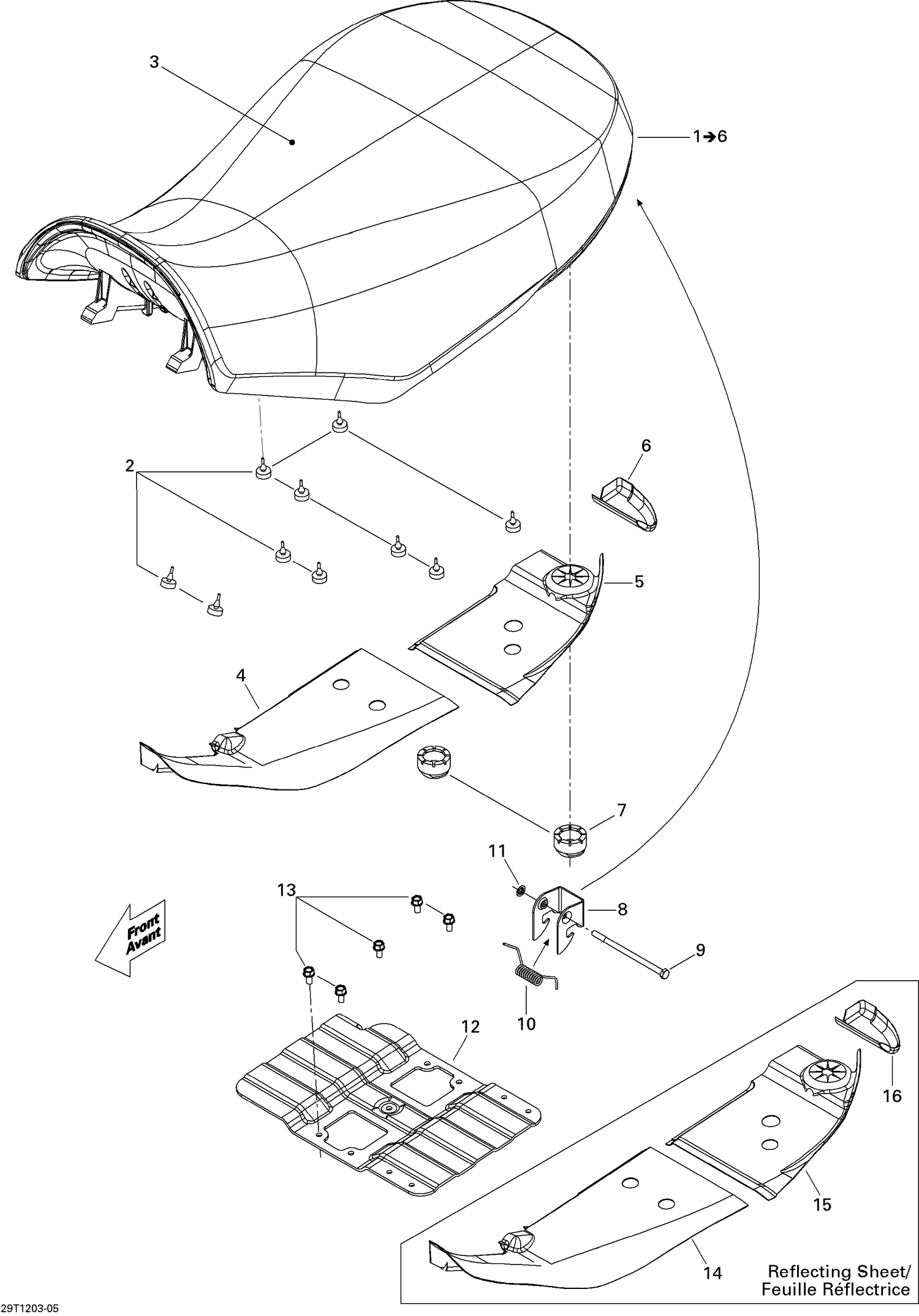

| Ref | Part Number | Description |
|---|
| 1 |
708001649 |
Seat Assembly This part replaces 715500323. |
| 2 |
708000759 |
Rubber Stopper |
| 3 |
708000538 |
Seat Cover |
| 4 |
708000956 |
REFLECTING SHEET - Call your local BRP dealership |
| 5 |
708000955 |
REFLECTING SHEET - Call your local BRP dealership |
| 6 |
708000957 |
HEAT SHIELD - Call your local BRP dealership This part replaces 708000487. |
| 7 |
708000760 |
Bumper Rubber |
| 8 |
708000144 |
Latch, Black |
| 9 |
230061034 |
Hex. Screw M6 X 110 |
| 10 |
708000369 |
Spring |
| 11 |
732610072 |
Push Nut |
| 12 |
708000629 |
Seat Reinforcement |
| 13 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 14 |
708000956 |
REFLECTING SHEET - Call your local BRP dealership |
| 15 |
708000955 |
REFLECTING SHEET - Call your local BRP dealership |
