| Ref | Part Number | Description |
|---|
| 1 |
0390313 |
MOTOR COVER ASSY. |
| 1 |
0390314 |
MOTOR COVER ASSY. |
| 6 |
0316025 |
LOCATING BLANKET, Front |
| 10 |
0318468 |
SCRAEW, Latch to handle |
| 14 |
0317107 |
APPLIQUE, Front handle |
| 15 |
0317112 |
APPLIQUE |
| 16 |
SEAL,Baffle |
Ref: 16 0315984 SEAL , Baffle to motor cover 0315984 |
| 18 |
0333089 |
TILT HANDLE This part replaces 0323226. |
| 19 |
0315989 |
AIR INLET BAFFLE |
| 19 |
0323227 |
BAFFLE, Tilt handle |
| 20 |
0322568 |
HANDLE & SHAFT |
| 21 |
0208154 |
SEAL, Motor cover, upper |
| 24 |
0390356 |
APPLIQUE |
| 26 |
0307151 |
SCREW |
| 27 |
0318284 |
CLAMP, Cable |
| 27 |
0320295 |
GROMMET, Control cables |
| 28 |
0313117 |
SCR,Clamp,eng cable |
| 29 |
0324963 |
LOWER MOTOR COVER |
| 29 |
0391599 |
LOWER MOTOR COVER |
| 30 |
0314494 |
BAG EMERGENCY STARTER ROPE |
| 31 |
0300646 |
VIS, ancrage |
| 32 |
0318574 |
SEAL, Steering arm |
| 33 |
0312299 |
VIS, serre-câble |
| 34 |
0308995 |
SCREW, Front mount |
| 36 |
0333739 |
RETAINER, Fuel hose to cover This part replaces 0318313. |
| 37 |
0551793 |
SCREW |
| 38 |
0302406 |
SLEEVE |
| 39 |
0327196 |
SUPPORT, Front stbd |
| 40 |
0310539 |
SCREW, Clamp choke solenoid |
| 42 |
0323474 |
HOOK, Cover to housing |
| 43 |
0378347 |
CORDE DE LANCEUR |
| 44 |
0316002 |
SUPPORT, Front port |
| 45 |
0318557 |
FRAME, Front |
| 46 |
0316064 |
SEAL, Frame |
| 47 |
0393334 |
CONNECTEUR, carburant - mâle This part replaces 0376154. |
| 48 |
0304027 |
VIS, arbre de commande de sens de marche |
| 50 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 51 |
0321885 |
NIPPLE |
| 52 |
0391116 |
LEVER & SHIFT SHAFT ASSY. |
| 53 |
0317387 |
SHIFT LEER |
| 54 |
0307604 |
SCREW |
| 55 |
0317405 |
GROMMET, Lever to cover |
| 56 |
0312708 |
BUSHING |
| 57 |
0318286 |
CLAMP |
| 58 |
0316061 |
SPRING, Choke knob |

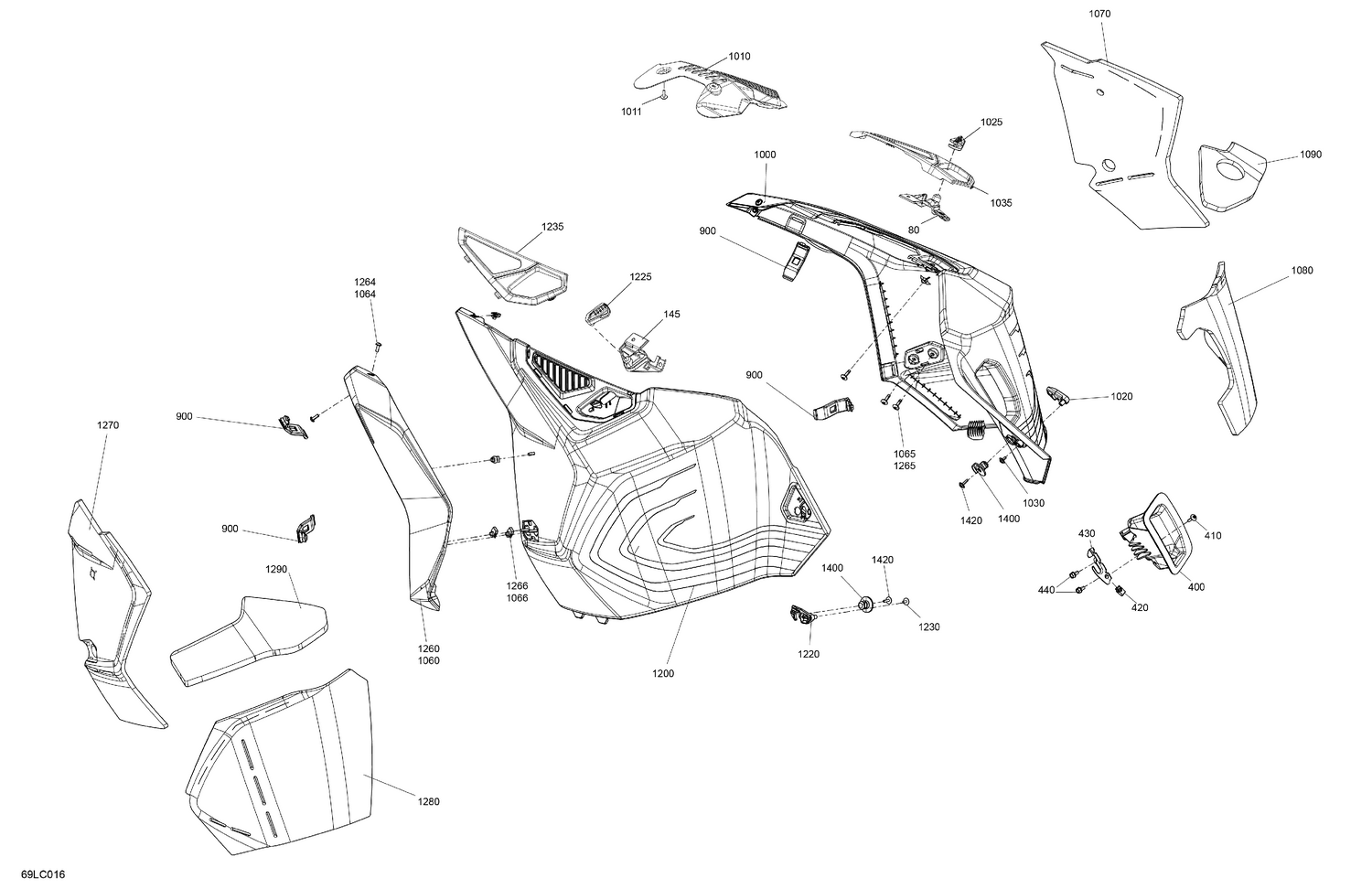

| 80 |
517306450 |
RH Knob Part |
| 145 |
517306451 |
LH Knob Part |
| 400 |
517306759 |
RH Console |
| 410 |
250000586 |
Torx Truss M5 X 20 |
| 420 |
250000958 |
Panel Nut M5 X 0.8 |
| 430 |
517306315 |
Rope Guide |
| 440 |
210261250 |
Hex. Flanged Screw M6 X 12 |
| 900 |
517306811 |
Rubber Latch |
| 1000 |
517308447 |
RH Side Panel |
| 1010 |
517306991 |
Grill |
| 1011 |
250000725 |
Screw M4 X 16 |
| 1020 |
517306320 |
RH Rear Latch |
| 1025 |
517305773 |
RH Rear Latch |
| 1030 |
250000805 |
Plastite Screw M4 X 10 |
| 1035 |
517306482 |
RH Trim |
| 1060 |
517306081 |
RH Air Deflector |
| 1064 |
250000742 |
Torx Screw M5 X 14 |
| 1065 |
250000528 |
Torx Screw M5 X 20 |
| 1066 |
250000958 |
Panel Nut M5 X 0.8 |
| 1070 |
517308464 |
RH Central Side Panel Foam |
| 1080 |
517308465 |
RH Rear Side Panel Foam |
| 1090 |
517308466 |
RH Upper Side Panel Foam |
| 1200 |
517308448 |
LH Side Panel |
| 1220 |
517306325 |
LH Rear Latch |
| 1225 |
517305774 |
LH Rear Latch |
| 1230 |
250000805 |
Plastite Screw M4 X 10 |
| 1235 |
517306481 |
LH Trim |
| 1260 |
517306082 |
LH Air Deflector |
| 1264 |
250000742 |
Torx Screw M5 X 14 |
| 1265 |
250000528 |
Torx Screw M5 X 20 |
| 1266 |
250000958 |
Panel Nut M5 X 0.8 |
| 1270 |
517308467 |
LH Central Side Panel Foam |
| 1280 |
517308468 |
LH Rear Side Panel Foam |
| 1290 |
517308469 |
LH Upper Side Panel Foam |
| 1400 |
517305985 |
Rear Stud |
| 0390320 |
0390320 |
OWNER'S MANUAL |
| 0390355 |
0390355 |
DECAL SET |
| 0390357 |
0390357 |
DECAL SET |
