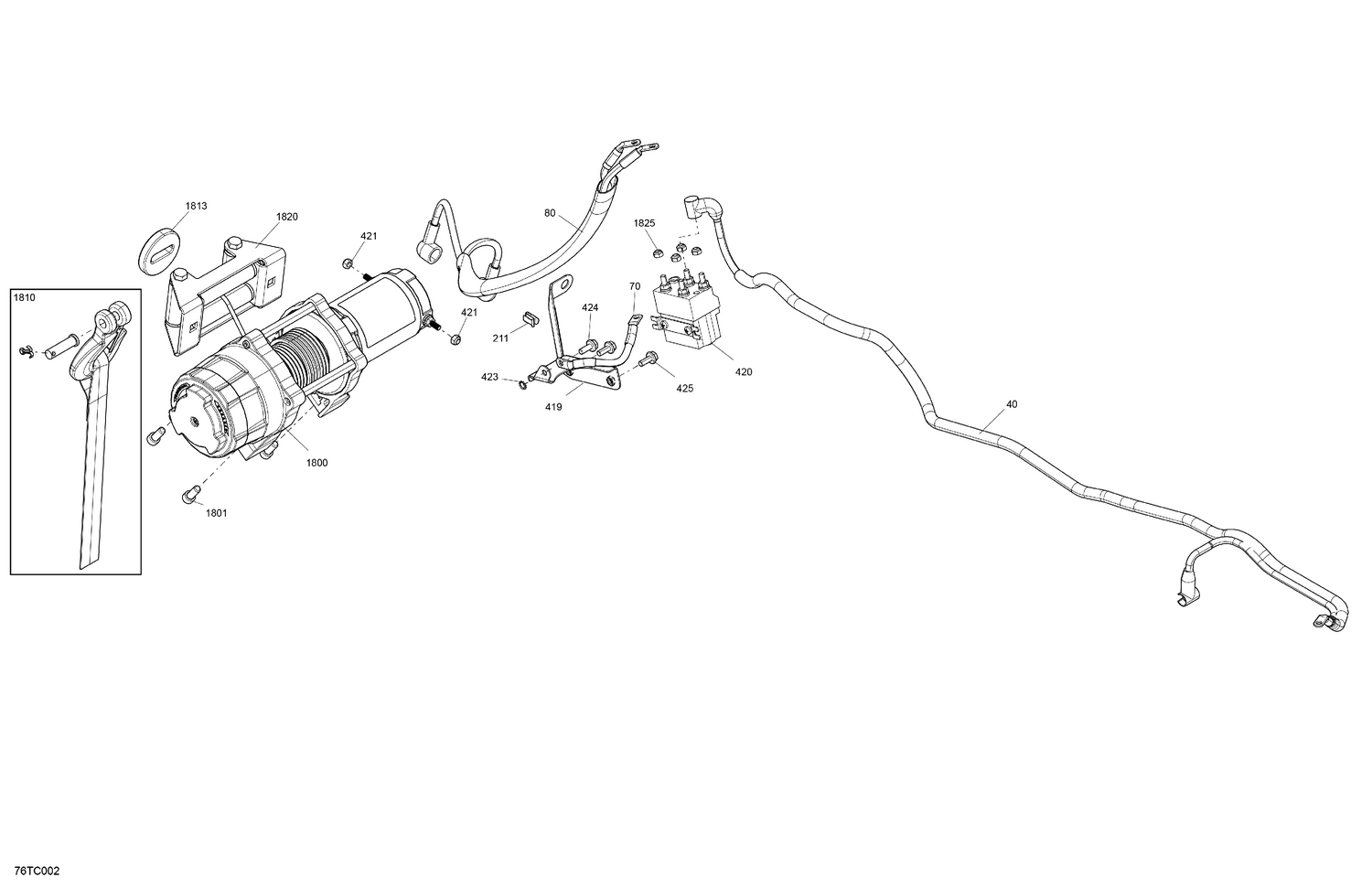

08- Electric - Winch
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 40 | 710007437 | Cable |
| 70 | 710007313 | Negative Cable |
| 80 | 710007436 | Winch Cable Ass'y |
| 211 | 710000992 | Clip |
| 419 | 710005151 | Solenoid Support |
| 420 | 710007364 | Solenoid |
| 421 | 232561200 | Brass Elastic Stop Nut M6 |
| 423 | 234461608 | External Serrated Lock Washer 6 mm |
| 424 | 207661646 | Hex. Flange Screw M6 X 16 |
| 425 | 207551634 | Hex. Flange Screw, Scotch Grip |
| 1800 | 710007072 | Electric Winch |
| 1801 | 250000746 | Torx Truss Screw M8 X 16 |
| 1810 | 705014949 | Winch Hook Kit |
| 1813 | 710007028 | Stopper |
| 1820 | 710007459 | Fairlead Roller |
