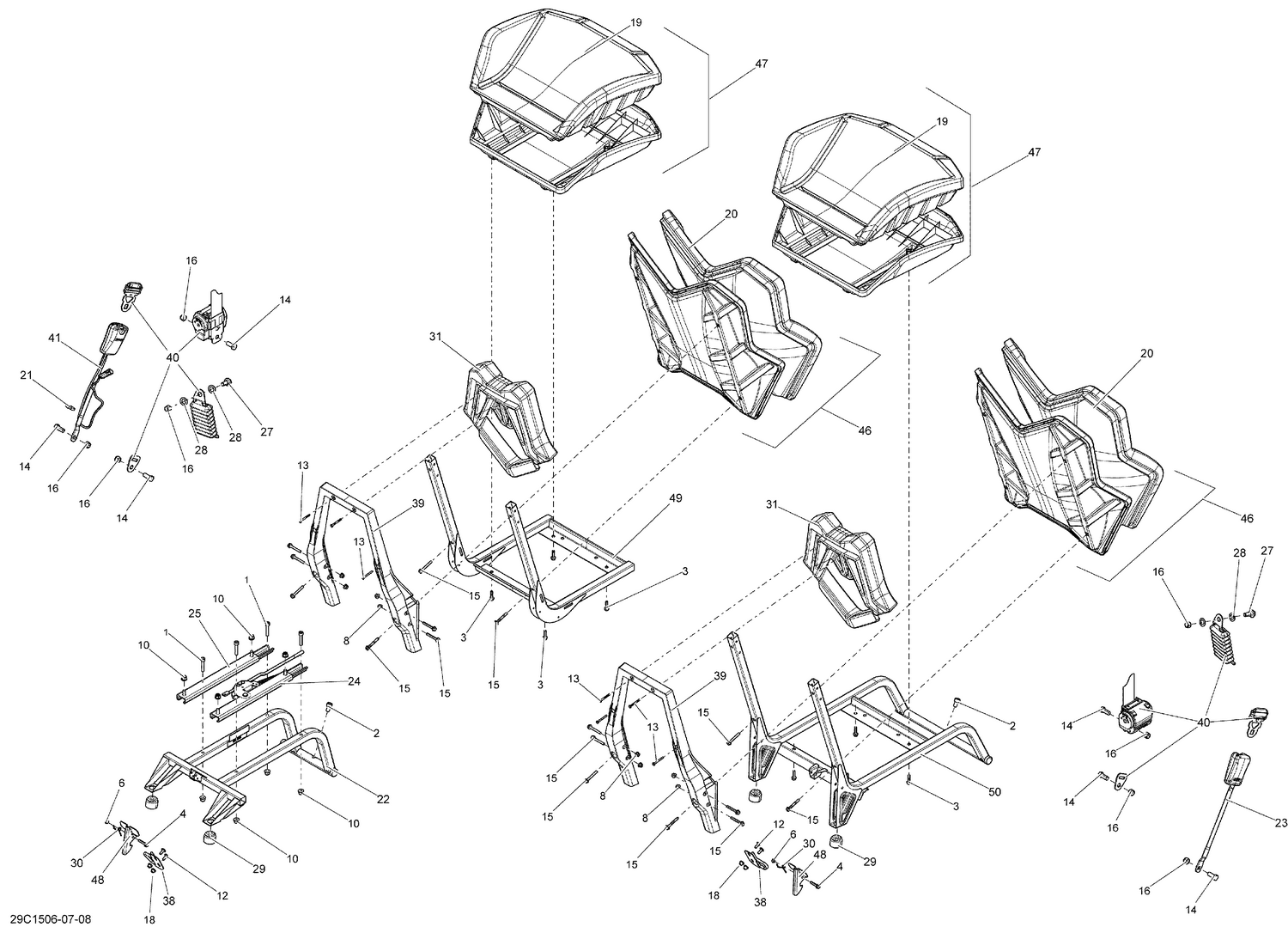

09- Seat _29C1507
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205084044 | Socket Head Screw M8 X 1.25 X 40 |
| 2 | 205501644 | Socket Screw M10 X 16 |
| 3 | 207562544 | Hex. Flange Screw M6 X 25 |
| 4 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663034. |
| 6 | 232561600 | Hex. Elastic Stop Nut M6 |
| 8 | 233161464 | Hex. Elastic Flange Nut M6 |
| 10 | 233281414 | Hex. Flange Elastic Nut M8 |
| 12 | 250000223 | Torx Screw M6 X 16 |
| 13 | 250000490 | HEX. WASHER HEAD SCREW PT K50 X 40 - Call your local BRP dealership This part replaces 250000490. |
| 14 | 250000521 | Hex. Cap Screw 7/16'' X 1'' |
| 15 | 250000672 | Hex. Flange Screw M6 |
| 16 | 250100135 | Nylon Insert Hex. Lock Nut 7/16-20 |
| 18 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 21 | 293750008 | Tie Wrap 368 mm |
| 22 | 708000667 | Seat Member |
| 23 | 708000844 | Passenger Buckle Side |
| 24 | 708001739 | RH Rail |
| 25 | 708000848 | LH Rail |
| 27 | 708000890 | Safety Belt Screw |
| 28 | 708000891 | Position Washer |
| 29 | 708001671 | Rubber Bumper This part replaces 708000899. |
| 30 | 708000921 | Spring |
| 31 | 708001074 | Head Rest |
| 38 | 708001238 | RETAINING ROD - Call your local BRP dealership |
| 39 | 708001245 | Seat Support |
| 40 | 708001302 | Safety Belt |
| 41 | 708002061 | Driver Buckle Side This part replaces 708000987. |
| 48 | 708001355 | Seat Latch |
| 49 | 708001356 | Operator Seat Frame |
