| Ref | Part Number | Description |
|---|
| 2 |
0125456 |
HOUSING |
| 3 |
0125457 |
HOUSING |
| 4 |
0125459 |
HOUSING |
| 5 |
0125460 |
HOUSING |
| 6 |
0173598 |
TRAY |
| 7 |
0123261 |
SHAFT, Remote control |
| 8 |
0123496 |
DRIVE GAR, Starboard |
| 9 |
0123497 |
DRIVE GEAR, Port |
| 11 |
0123265 |
SPRING, Drive gear |
| 12 |
0123266 |
BRUSHING, Shaft to housing |
| 13 |
0123267 |
WASHER |
| 14 |
0123268 |
ROLLER Throttle cam |
| 15 |
0123269 |
WASHER |
| 16 |
0123270 |
CAM Neutral switch |
| 17 |
0173587 |
FIRCTION CONTROL |
| 18 |
0909859 |
SCREW, Control housing |
| 20 |
0123274 |
SCREW, Tray to housing |
| 20 |
515178492 |
Braided Sleeve 60MM Long |
| 21 |
0123278 |
HANDLE |
| 22 |
0125198 |
KNOB, Binnacle |
| 23 |
0125199 |
END CAP, Knob |
| 25 |
420893748 |
Turbocharger Ass'y This part replaces 420893746. |
| 26 |
0123610 |
COVER, Handle |
| 27 |
0123439 |
SPACER, Control cable |
| 28 |
0125200 |
KNOB, Switch housing |
| 29 |
0123310 |
SCREW, Binnacle assy |
| 30 |
0125151 |
COVER |
| 30 |
512061457 |
Compressor Support |
| 31 |
0124894 |
SCREW, Control mounting |
| 33 |
0123342 |
SHOE Detent roller |
| 34 |
0123343 |
TRIM INSERT |
| 35 |
0123350 |
BUSHING |
| 35 |
207682046 |
Hex. Flange Screw M8 X 20 |
| 36 |
0173571 |
THROTTLE CAM & ARMS ASSY. |
| 37 |
0173478 |
THROTTLE CAM & ARM ASSY. |
| 38 |
0173480 |
NEUTRAL START SWITCH |
| 39 |
0173572 |
LEAD ASSEM BLY |
| 42 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz |
| 46 |
0173542 |
SHAFT GEAR & ARMS ASSY |
| 49 |
0125197 |
HATCH SWITCH KNOB |
| 50 |
0125196 |
RETAINER, Switch leads |
| 51 |
0123340 |
SCREW, Retainer |
| 52 |
0174583 |
TRIM SWITCH & LEAD ASSY |
| 65 |
514056378 |
Rubber Sheet |
| 80 |
250001058 |
Hex. Flanged Screw M8 X 50 |
| 90 |
512061328 |
Upper Stopper |
| 300 |
512061696 |
LH Machined Brace This part replaces 512061447. |
| 310 |
512061449 |
Upper CVT Cooling Duct |
| 315 |
250000995 |
Torx-truss M/s M6 X 10 |
| 317 |
207563544 |
Screw H Flange S.Grip M6 X 35 |
| 320 |
512061450 |
Lower CVT Cooling Duct |
| 325 |
250000995 |
Torx-truss M/s M6 X 10 |
| 400 |
420889425 |
Servo Motor Ass'y |
| 420 |
293370122 |
Circlip |
| 440 |
207551044 |
Hex. Flange Screw M5 X 10 |
| 1000a |
512061417 |
LH Rear Engine Support |
| 1020 |
250001016 |
Hex Flanged Screw M8 X 25 S.Grip |
| 1030 |
250200146 |
Conical Spring Washer M8 |
| 1200a |
512061419 |
SUPPORT_ENGINE FL - Call your local BRP dealership |
| 1210 |
250001016 |
Hex Flanged Screw M8 X 25 S.Grip |
| 1220 |
250200146 |
Conical Spring Washer M8 |
| 1300 |
512061439 |
RH Front Engine Support |
| 1305 |
512061454 |
Vibration Damper |
| 1310 |
250001016 |
Hex Flanged Screw M8 X 25 S.Grip |
| 1320 |
250200146 |
Conical Spring Washer M8 |
| 1330 |
250001062 |
Hex. Flanged Screw M6 X 16 |
| 1400 |
512061411 |
RH Rear Engine Support Ass'y |
| 1410 |
250001016 |
Hex Flanged Screw M8 X 25 S.Grip |
| 1420 |
250200146 |
Conical Spring Washer M8 |
| 1500 |
512061454 |
Vibration Damper |
| 1540 |
250001062 |
Hex. Flanged Screw M6 X 16 |
| 1550 |
207585544 |
Hex. Flange Screw M8 X 55 |
| 1560 |
503183200 |
Yellow, Washer |
| 1570 |
250200008 |
Flat Washer With Teflon 8 mm |
| 1580 |
205082544 |
Socket Screw M6 X 20, Scotch Grip |
| 1585 |
503183200 |
Yellow, Washer |
| 1595 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 1700 |
512061530 |
Engine Stopper |
| 2000f |
512061083 |
Rubber |
| 2000g |
420441840 |
Distance Screw |
| 2000h |
293650079 |
Norma Clamp |
| 2000p |
207652544 |
Hex. Flange Screw M5 X 25 |
| 2000q |
233251434 |
Flanged Elastic Nut M5 |
| 2000r |
250000760 |
Torx Screw Truss Head K50X20 T20 |
| 2030 |
293650091 |
Norma Clamp |
| 2045 |
293650079 |
Norma Clamp |
| 2050 |
420201630 |
Rubber Cap |
| 2060 |
512061274 |
Airbox Support |
| 2070 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 2080 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 2090 |
512061570 |
Inlet Tube |
| 2100 |
293650077 |
Norma Clamp |
| 3600 |
512061326 |
Throttle Cable |
| 3690 |
414274500 |
Circlip |
| 3800 |
512060859 |
Upper Housing Ass'y |
| 3810 |
512060860 |
Lower Housing |
| 3820 |
512061544 |
Heated Hand Lever Accelerator |
| 3840 |
250000991 |
Flanged Screw M5x12 |
| 4200 |
512061168 |
Ignition Coil |
| 4210 |
243141630 |
Hex. Plastic Screw M4.8 X 16 |
| 4220 |
512061166 |
Ignition Cable |
| 4240 |
512061238 |
Spark Plug Wire Holder |
| 4270 |
293300059 |
O-Ring |
| 5050 |
512060993 |
Clamp |
| 5300 |
512060136 |
Starter Grip (Optional) |
| 5610 |
512061513 |
LH Acoustic Cover |
| 7900 |
512061538 |
Oil Tank |
| 8000 |
519000332 |
Oil Pump |
| 8010 |
512061379 |
Hose 7,94 mm ID |
| 8040 |
512061381 |
Hose |
| 8060 |
293650140 |
Oetiker Clamp |
| 8080 |
219704539 |
Hose 5.7MM - 630MM |
| 8090 |
503195447 |
Protector Tube |
| 8100 |
503195447 |
Protector Tube |
| 8110 |
503195447 |
Protector Tube |
| 8120 |
250000767 |
Torx Truss Screw M6 X 12 |
| 8130 |
250000759 |
Torx Truss Pt K40 X 16 |
| 0173581 |
0173581 |
CABLE MOUNT HARDWARE KIT |
| 0174584 |
0174584 |

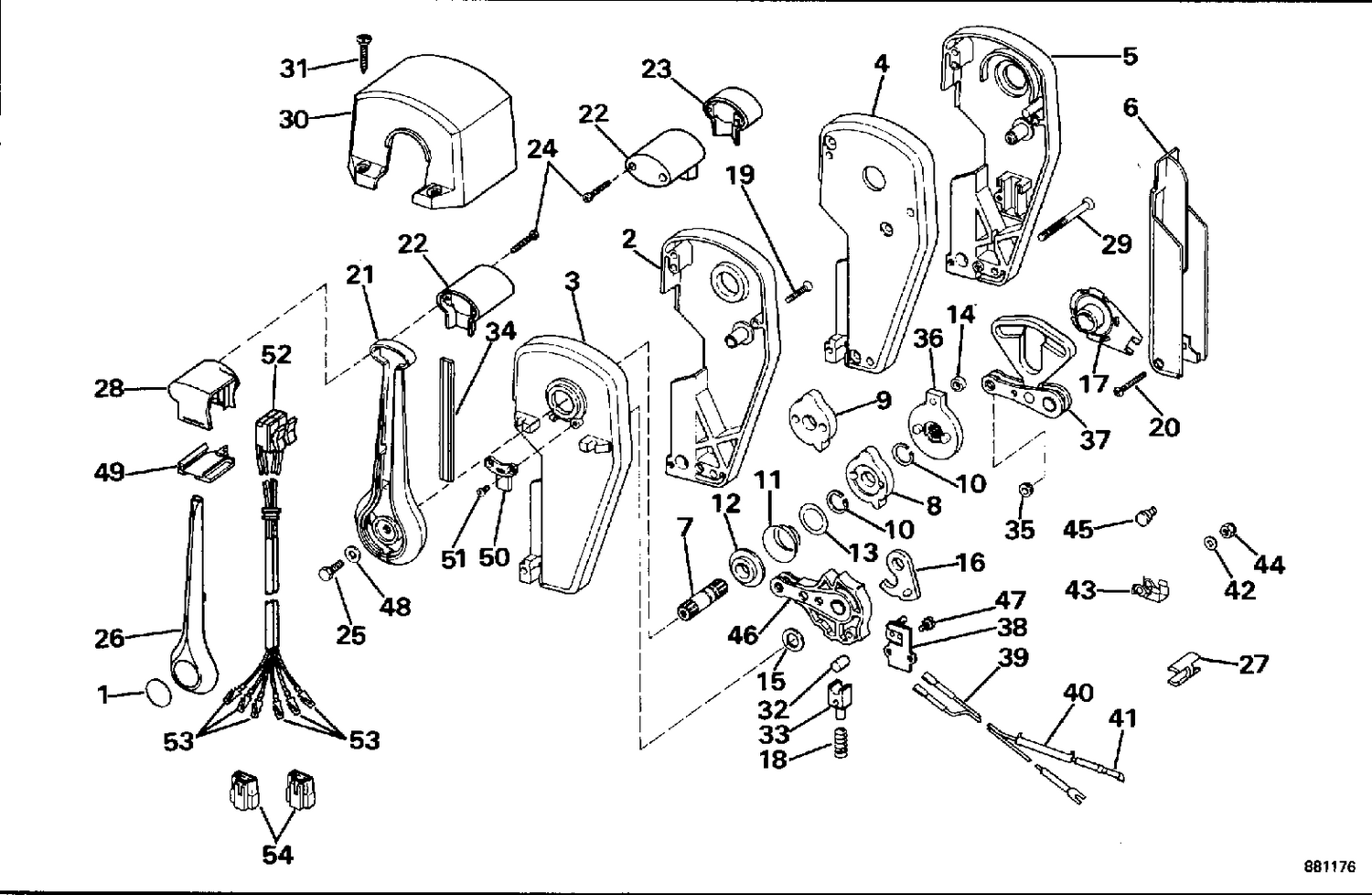

REMOTE CONTROL ASSY. Binnacle mount, dual lever, 150CX |
| 0174585 |
0174585 |
REMOTE CONTROL ASSY., Binnacle mount, dual le er without trim |
