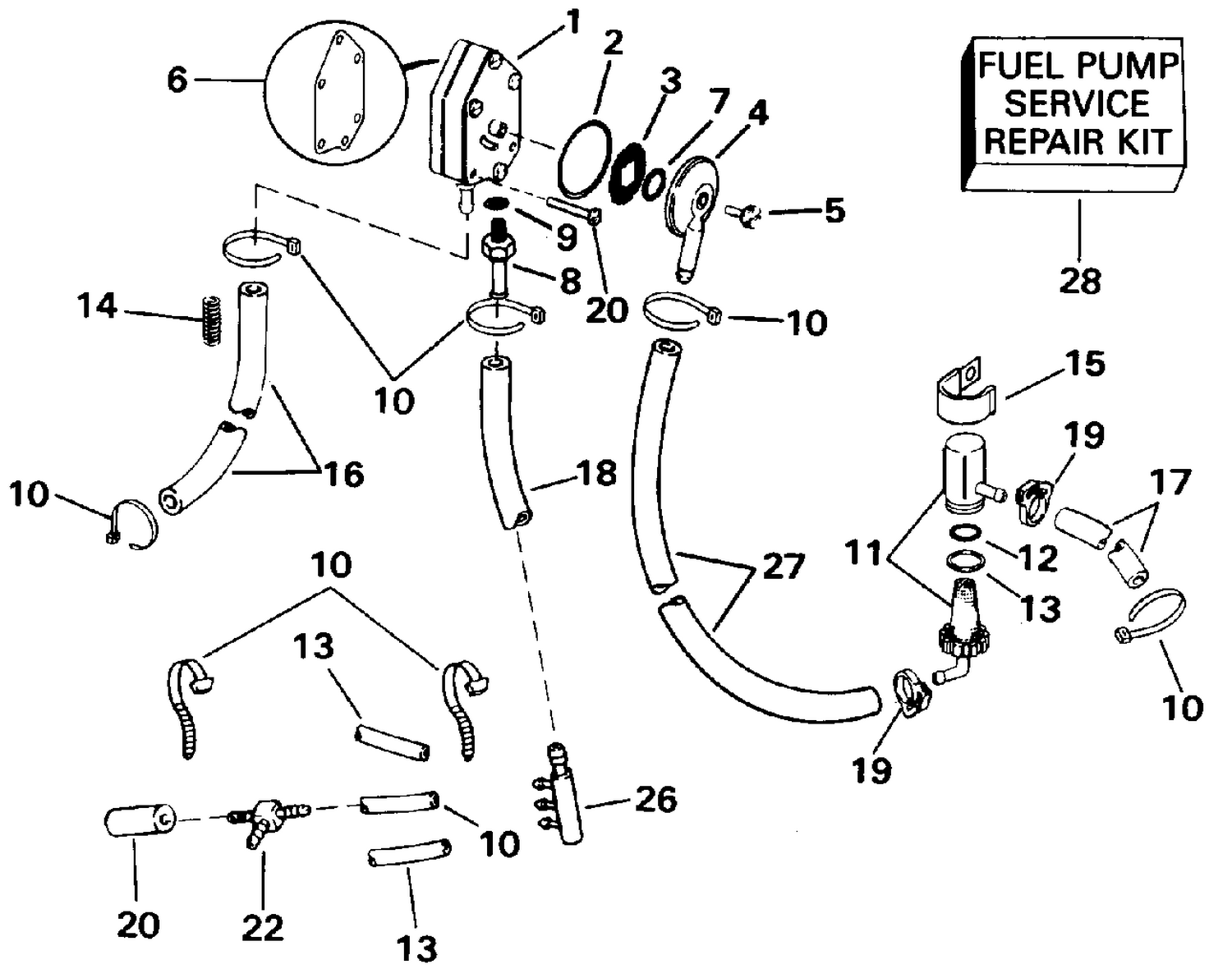

| Ref | Part Number | Description |
|---|
| 1 |
0438557 |
FUEL PUMP Assy This part replaces 0433388. |
| 2 |
0319822 |
O-RING, Cap |
| 10 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 11 |
0397715 |
FILTER, Fuel |
| 14 |
0315942 |
SPRING |
| 15 |
0330151 |
CLAMP, Harness to oil tank boss |
| 16 |
HOSE, |
Pump to crankcase, 5 1/4 in. (133mm) |
| 17 |
0333395 |
HOSE, Connector to filter |
| 18 |
HOSE, |
Pump to manifold, 10 3/4 in. (273mm) |
| 20 |
0328717 |
NUT, Ground lead |
| 21 |
HOSE, |
Tee to middle carb. 1 1/4 in. (32mm) |
| 23 |
HOSE, |
Manifold to tee 1 1/4 in. (32mm) |
| 24 |
0336236 |
HOSE, Fuel pump to carburetor |
| 26 |
5004610 |
FITTING, Fuel manifold This part replaces 0395540. |
| 27 |
0334131 |
FLEXIBLE, impulsions |
