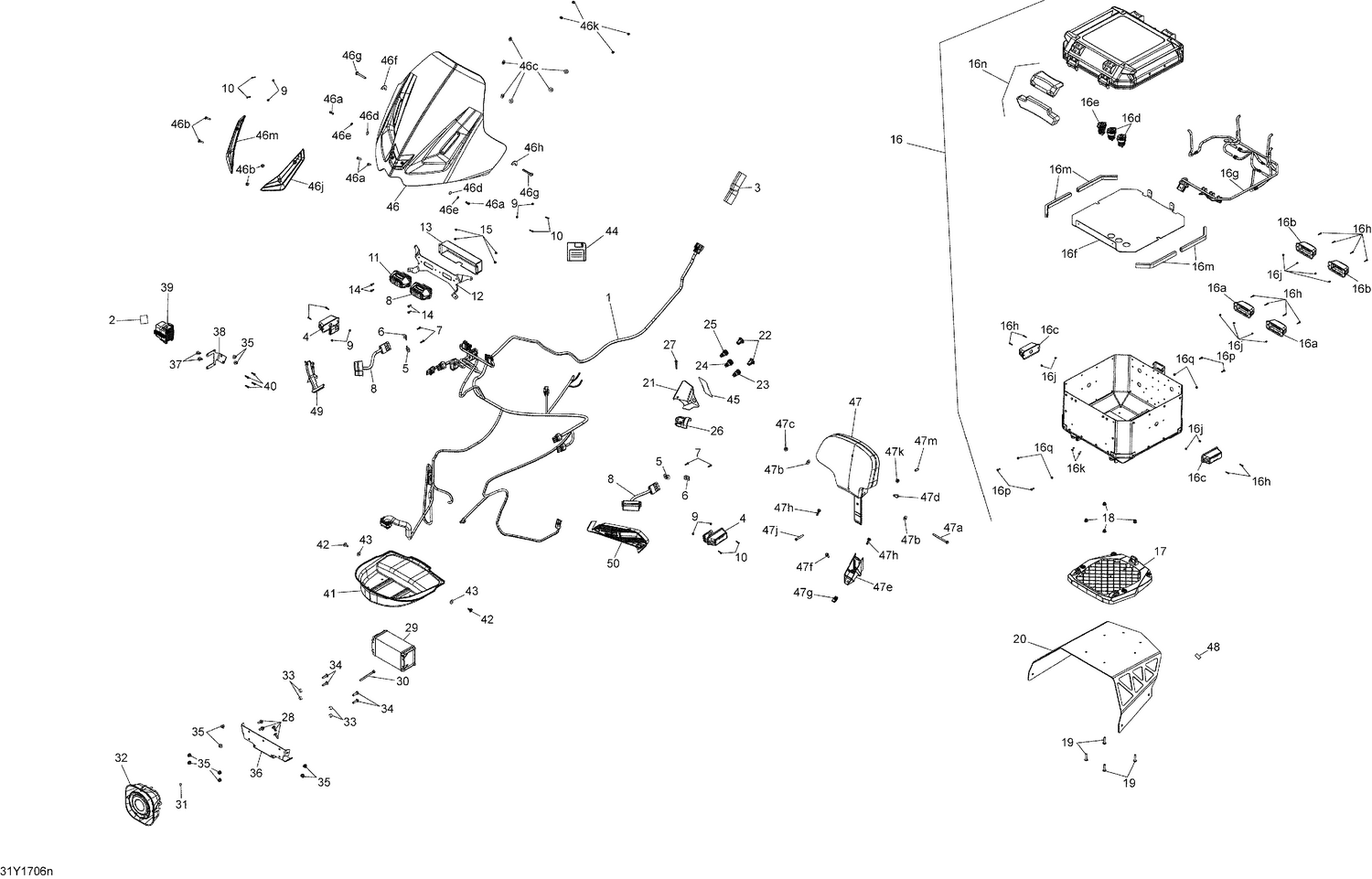

| Ref | Part Number | Description |
|---|
| Not |
Available |
As Spare Part - |
| 1 |
710005311 |
SECONDARY WIRING - Call your local BRP dealership |
| 2 |
710005157 |
DECAL FUS. RELA - Call your local BRP dealership |
| 3 |
293740058 |
Wire Cover |
| 4 |
710005303 |
Blue Flasher Ass'y |
| 5 |
705010372 |
MOUNTING PLATE - Call your local BRP dealership |
| 6 |
705010464 |
MOUNTING PLATE - Call your local BRP dealership |
| 7 |
250000287 |
Flange Torx Screw K40 X 16 |
| 8 |
710005302 |
Red Flasher Ass'y |
| 9 |
232531423 |
Elastic Stop Nut M3 |
| 10 |
710004811 |
SOCKET SCREW M3 X 14 - Call your local BRP dealership |
| 11 |
710005298 |
FLASHER LAMP ASS. BLUE LINZ6 - Call your local BRP dealership |
| 12 |
705010363 |
FLASHER SUPPORT - Call your local BRP dealership |
| 13 |
705010364 |
WIRING COVER - Call your local BRP dealership |
| 14 |
208641260 |
PHILLIPS SCREW M4 X 12 - Call your local BRP dealership |
| 15 |
232541434 |
Elastic Stop Nut |
| 16a |
710005302 |
Red Flasher Ass'y |
| 16b |
710005298 |
FLASHER LAMP ASS. BLUE LINZ6 - Call your local BRP dealership |
| 16c |
710005300 |
FLASHER LAMP ASS. RED TIR3 - Call your local BRP dealership |
| 16d |
710001248 |
DC Outlet |
| 16e |
219400510 |
USB Outlet This part replaces 710004421. |
| 16f |
710004813 |
MOUNTING PLATE - Call your local BRP dealership |
| 16g |
710005312 |
REAR BOX WIRING - Call your local BRP dealership |
| 16h |
710004811 |
SOCKET SCREW M3 X 14 - Call your local BRP dealership |
| 16j |
232531423 |
Elastic Stop Nut M3 |
| 16k |
250000577 |
Torx Truss Screw K40 X 12 |
| 16m |
219704365 |
Was 293200017 Neoprene Seal |
| 16n |
708200683 |
PAD KIT - Call your local BRP dealership |
| 16p |
208641260 |
PHILLIPS SCREW M4 X 12 - Call your local BRP dealership |
| 16q |
232541434 |
Elastic Stop Nut |
| 17 |
705010369 |
STORAGE BOX SUPPORT - Call your local BRP dealership |
| 18 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 19 |
250000843 |
Torx Truss Screw M6 X 30 This part replaces 250000398. |
| 20 |
705010370 |
FORMED SUPPORT - Call your local BRP dealership |
| 21 |
710005688 |
SWITCHES SUPPORT - Call your local BRP dealership |
| 22 |
708400046 |
Cap |
| 23 |
710005681 |
SWITCH LIGHTS - Call your local BRP dealership |
| 24 |
710005682 |
Sirene Switch Wail |
| 25 |
710005683 |
Sirene Switch Yelp |
| 26 |
709401578 |
GPS Clamp |
| 27 |
710005752 |
Bolt ¼-20 X 5/16 |
| 28 |
250000722 |
Torx Screw M6 X 20 |
| 29 |
710004828 |
SIREN AMPLIFIER - Call your local BRP dealership |
| 30 |
291004284 |
THREAD SCREW FILET 1/4-20 X 1 1/4 - Call your local BRP dealership |
| 31 |
211200025 |
Lock Washer 1/4” |
| 32 |
710004839 |
Siren |
| 33 |
277001929 |
Bushing |
| 34 |
250000807 |
Torx Truss Screw M6 X 25 |
| 35 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 36 |
710004838 |
AMPLIFIER SUPPORT - Call your local BRP dealership |
| 37 |
250000534 |
Tork Screw M6 X 16 |
| 38 |
710004844 |
FUSE BOX SUPPORT - Call your local BRP dealership |
| 39 |
710001046 |
Fuse, 25 AMP |
| 40 |
250000287 |
Flange Torx Screw K40 X 16 |
| 41 |
705011050 |
DOUBLE BOTTOM - Call your local BRP dealership |
| 42 |
293150186 |
Pop Rivet 3/16 |
| 43 |
517124300 |
Washer |
| 44 |
710005113 |
Speed Prog |
| 45 |
704906438 |
Decal Police Pack |
| 46a |
250000652 |
Socket Screw M5 X .80 X 16 |
| 46b |
250000715 |
Torx Truss Screw M5 X 20 |
| 46c |
250200024 |
Rubber Washer 5 mm |
| 46d |
293370112 |
RETAINING RING - Call your local BRP dealership |
| 46e |
234051670 |
Flat Washer M5 |
| 46f |
293830176 |
Rubber Washer |
| 46g |
250000827 |
Torx Screw Truss Cone HD.M6X50 This part replaces 250000708. |
| 46h |
293830176 |
Rubber Washer |
| 46j |
705004961 |
LH WINDSHIELD MOULDING - Call your local BRP dealership |
| 46k |
250100152 |
Cap Nut M5 |
| 46m |
705004962 |
RH Windshield Moulding |
| 47a |
207068060 |
Hex. Screw M6 x 80 |
| 47b |
234062600 |
Flat Washer M6, Stainless |
| 47c |
233261494 |
Hex. Flange Elastic Nut M6 |
| 47d |
250000885 |
Head Screw M8 x 20 |
| 47e |
708001678 |
Backrest Slider |
| 47f |
210262050 |
Hexagonal Head Screw |
| 47g |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 47h |
207662044 |
Hex. Flange Screw M6 X 20 |
| 47j |
205464060 |
Socket Screw M6 X 40 |
| 47k |
233261494 |
Hex. Flange Elastic Nut M6 |
| 47m |
515176141 |
Cap |
| 48 |
704906368 |
WARNING DECAL, MAXIMUM LOAD - Call your local BRP dealership |
| 49 |
705010312 |
RH GRILL - Call your local BRP dealership |
