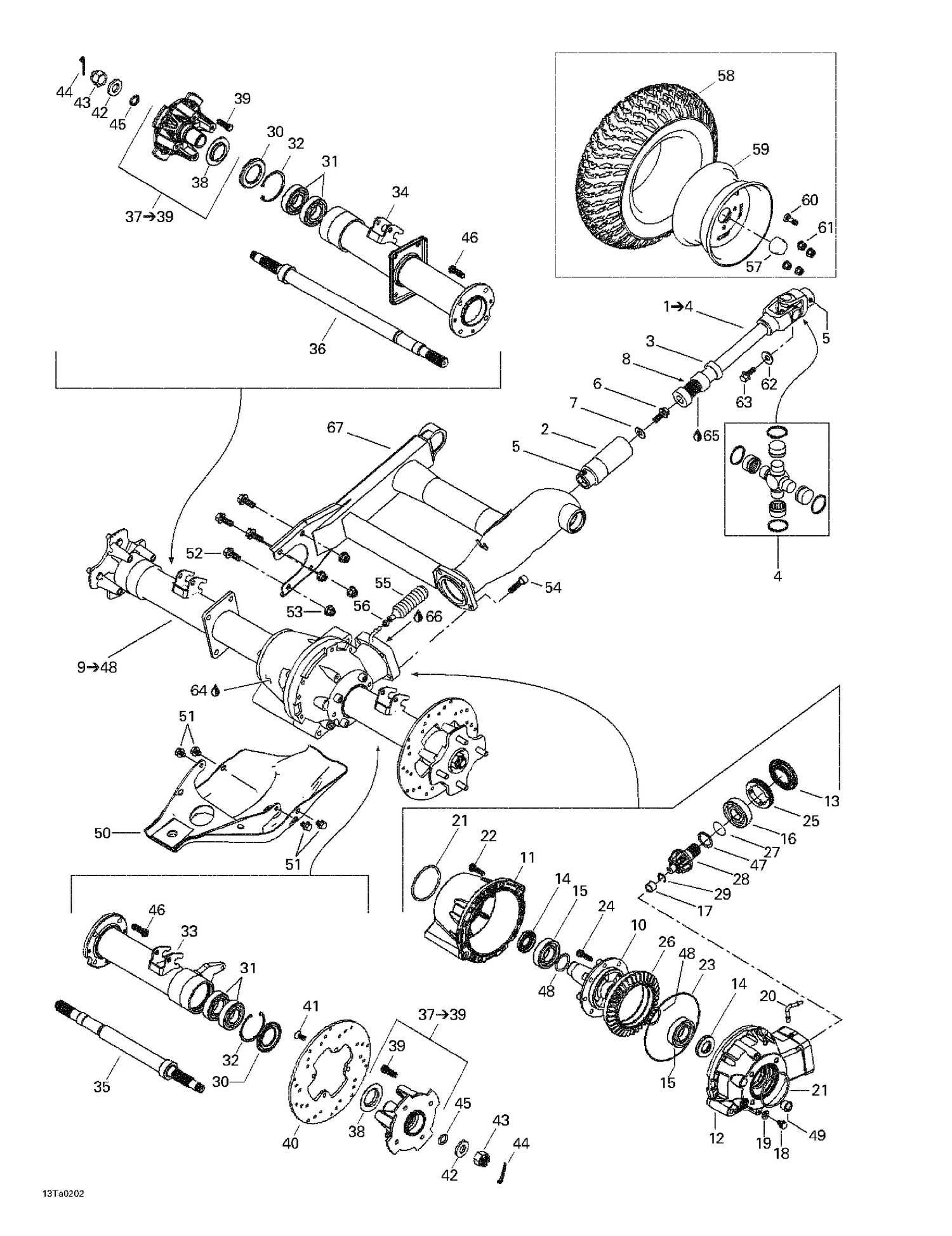

05- Drive System, Rear
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 705500380 | COUPLER - Call your local BRP dealership |
| 3 | 705500097 | Sealing Ring |
| 4 | 715900325 | Ens. Croix*U-Joint Cross Kit This part replaces 703500002. |
| 5 | 705400036 | Wear Ring |
| 6 | 250000060 | Flange Screw M10 X 16, Scotch Grip |
| 7 | 250200014 | Flat Washer M10 |
| 8 | Not | Available As Spare Part - Spring |
| 10 | 705500159 | Propulsion Spool |
| 11 | 705500013 | Differential Cap |
| 12 | 705500014 | Differential Carrier |
| 13 | 705401481 | Oil Seal This part replaces 705400027. |
| 14 | 705401618 | Gasket This part replaces 705500081. |
| 15 | 705401606 | Ball Bearing This part replaces 705500080. |
| 16 | 705500074 | Ball Bearing |
| 17 | 705500077 | Needle Bearing |
| 18 | 705500298 | Drain Plug |
| 19 | 705500299 | SEAL RING - Call your local BRP dealership |
| 20 | 705500124 | Vent Valve |
| 21 | 705500078 | O RING - Call your local BRP dealership |
| 22 | 705500088 | SCREW - Call your local BRP dealership |
| 23 | 705500091 | Seal |
| 24 | 705500090 | RING GEAR SCREW - Call your local BRP dealership |
| 25 | 705401603 | Nut This part replaces 705500161. |
| 26 | 705500087 | Gear (36 Teeth) |
| 27 | 705500073 | O-Ring |
| 28 | 705500076 | GEAR (10 TEETH) - Call your local BRP dealership |
| 29 | 705500102 | Retaining Ring |
| 30 | 705500099 | OIL SEAL - Call your local BRP dealership |
| 31 | 705500251 | BALL BEARING - Call your local BRP dealership |
| 32 | 705500085 | Retaining Ring |
| 33 | 705500156 | Axle Tube R.H |
| 34 | 705500209 | LH Axle Tube |
| 35 | 705500049 | RH Axle Ass'y |
| 36 | 705500050 | LH Axle Ass'y |
| 38 | 705500100 | WEAR RING - Call your local BRP dealership |
| 39 | 250300055 | Wheel Stud M10 X 1.25 This part replaces 211300020. |
| 40 | 705600033 | Brake Disk 220 mm (Rear) |
| 41 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
| 42 | 250200019 | WASHER - Call your local BRP dealership |
| 43 | 232291413 | Hex. Flange Castellated Nut M18 |
| 44 | 250400036 | Cotter Pin This part replaces 211400012. |
| 45 | 293300052 | O-Ring |
| 46 | 705500149 | Axle Tube Screw |
| 47 | 705502061 | Pinion Gear Shim 1.67 mm This part replaces 703500049. |
| 48 | 705401604 | Shim This part replaces 703500050. |
| 49 | 705500143 | Filler/Level Plug |
| 50 | 705000019 | Rear Differential Protector |
| 51 | 207581046 | Flange Screw M8 x 10, Scotch Grip |
| 52 | 207602544 | Hex. Flange Screw M10 X 25 |
| 53 | 233201414 | Hex. Flange Elastic Nut M10 |
| 54 | 205502544 | Socket Head Screw M10 x 25 (Scotch Grip) |
| 55 | 705400552 | Rubber Bellow This part replaces 705400066. |
| 56 | 293750001 | Tie Wrap 94 mm |
| 57 | 705400012 | WHEEL CAP - Call your local BRP dealership |
| 58 | 705500314 | Rear Tire |
| 59 | 705500239 | Rear Rim, Grey |
| 60 | 705400193 | Rim Valve With Cap This part replaces 705400053. |
| 61 | 705400013 | HEX. NUT - Call your local BRP dealership |
| 62 | 211200041 | Washer |
| 63 | 207581646 | Hex. Flange Screw M8 X 16, Scotch Grip |
| 64 | 779221 | JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML This part replaces 293600011. |
| 65 | 293550062 | Graisse *Grease This part replaces 293550019. |
| 66 | 219701421 | Instant Gasket This part replaces 293800028. |
