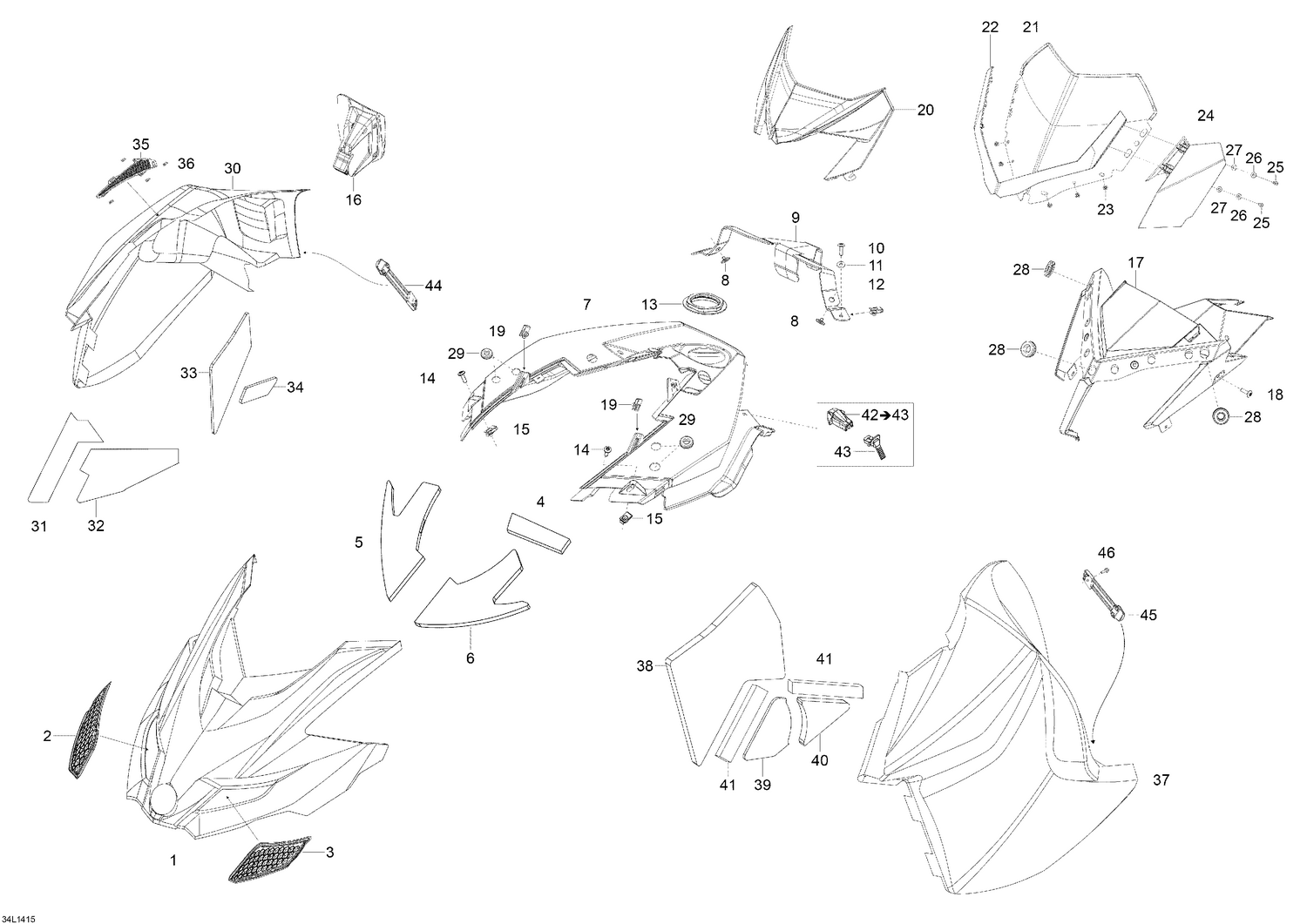

09- Hood
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517303962 | Hood |
| 2 | 517304141 | Hood Grill RH |
| 3 | 517304008 | Hood Grill LH |
| 4 | 517304266 | Foam |
| 5 | 517304263 | Foam |
| 6 | 517304321 | Foam |
| 7 | 517304645 | Console |
| 8 | 605452114 | Plug |
| 9 | 517305363 | Console Support, Black |
| 10 | 250000724 | Torx Screw M5 X 20 This part replaces 250000130. |
| 11 | 517124300 | Washer |
| 12 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 13 | 517304518 | Console Nut |
| 14 | 250000722 | Torx Truss Screw M6 x 20 This part replaces 250000128. |
| 15 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250100113. |
| 16 | 517304500 | Console RH |
| 17 | 517304575 | Indicator Support |
| 18 | 250000722 | Torx Truss Screw M6 x 20 This part replaces 250000128. |
| 19 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250100113. |
| 20 | 517303979 | Shroud |
| 21 | 517303608 | MEDIUM WINDSHIELD - Call your local BRP dealership |
| 22 | 517303607 | Support |
| 23 | 732610072 | Push Nut |
| 24 | 517303604 | Air Deflector RH |
| 24 | 517303605 | Air Deflector LH |
| 25 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 26 | 250200025 | Washer M5 |
| 27 | 250200024 | Rubber Washer 5 mm |
| 28 | 517303756 | Grommet |
| 29 | 517303756 | Grommet |
| 30 | 517304981 | Side Panel RH |
| 31 | 517304264 | Aluminium Foil |
| 32 | 517304265 | Aluminium Foil |
| 33 | 517304220 | Foam |
| 34 | 517304306 | Foam |
| 35 | 517304007 | Grill |
| 36 | 517302785 | Clip |
| 37 | 517304990 | Side Panel LH |
| 38 | 517304219 | Foam |
| 39 | 517304305 | Foam |
| 40 | 517304340 | Foam |
| 41 | 517305108 | Foam |
| 43 | 517303981 | Latch Panel |
| 44 | 517304551 | PANEL LATCH - Call your local BRP dealership |
| 45 | 517303808 | Latch Panel LH |
