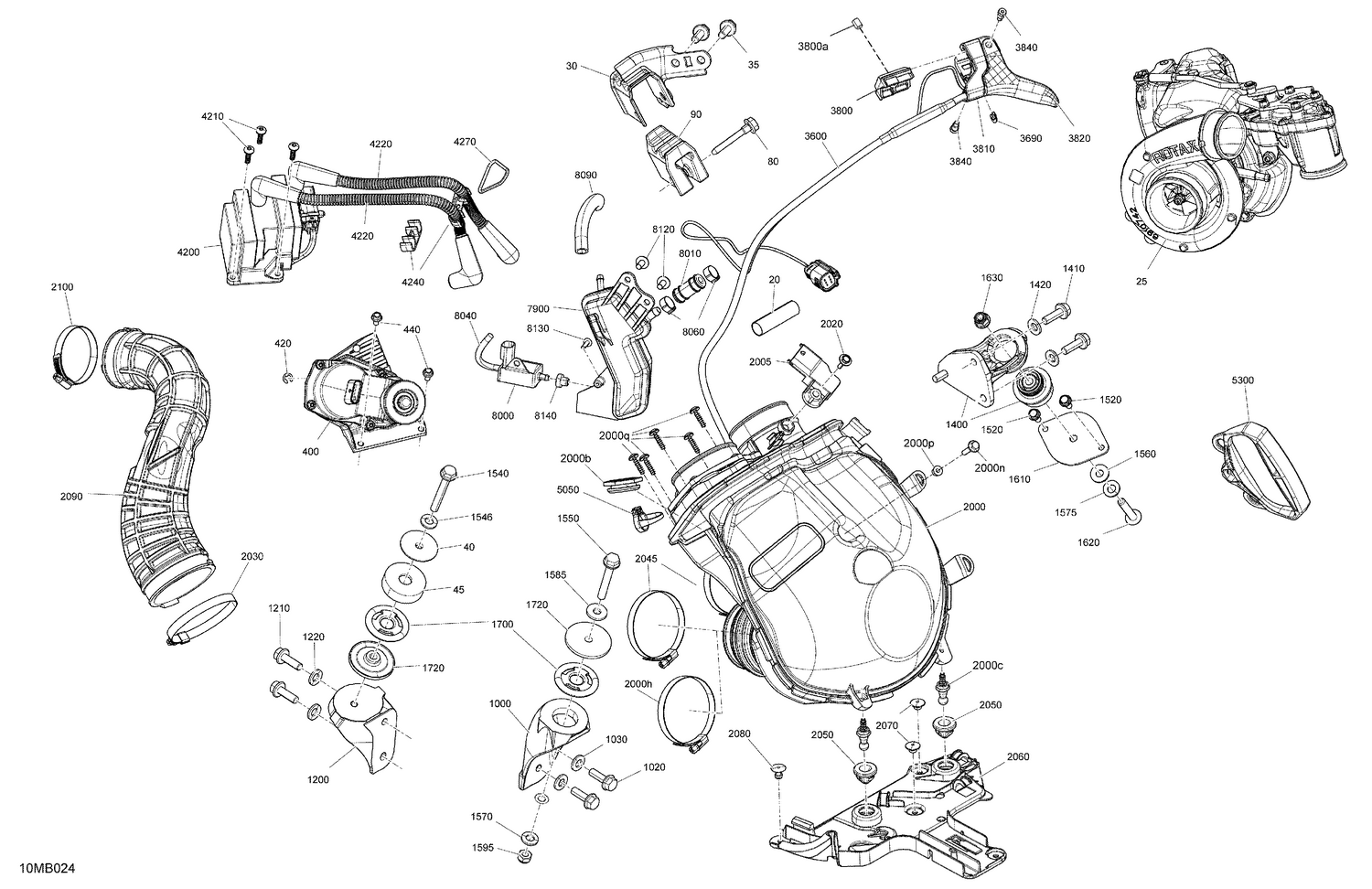

02- Engine - System
Parts (71)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 515178492 | Braided Sleeve 60MM Long |
| 25 | 420893748 | Turbocharger Ass'y This part replaces 420893738. |
| 30 | 512061280 | Support |
| 35 | 207682046 | Hex. Flange Screw M8 X 20 |
| 40 | 512061333 | Washer |
| 45 | 512061334 | PTO Limiter |
| 80 | 250001058 | Hex. Flange Screw M8 X 50 |
| 90 | 512061328 | Upper Stopper |
| 400 | 420889432 | Servo Motor Ass'y |
| 420 | 293370122 | Circlip |
| 440 | 207551044 | Hex. Flange Screw M5 X 10 |
| 1000 | 512061517 | Rear PTO Support Ass'y |
| 1020 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 1030 | 250200146 | Conical Spring Washer M8 |
| 1200 | 512061025 | Front PTO Support |
| 1210 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 1220 | 250200146 | Conical Spring Washer M8 |
| 1400 | 512061515 | MAG Support Ass'y |
| 1410 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 1420 | 250200146 | Conical Spring Washer M8 |
| 1520 | 250001062 | Hex. Flange Screw M6 X 16 |
| 1540 | 207586046 | Hex. Flange Screw Din.6921 S.Grip M8 x 60 |
| 1546 | 250200146 | Conical Spring Washer M8 |
| 1550 | 207585544 | Hex. Flange Screw M8 X 55 |
| 1560 | 506151245 | Washer |
| 1570 | 250200008 | Flat Washer With Teflon 8 mm |
| 1575 | 250200146 | Conical Spring Washer M8 |
| 1585 | 503183200 | Yellow, Washer |
| 1595 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1610 | 512061398 | Spacer |
| 1620 | 250000761 | Torx Truss Screw M8 X 50 |
| 1630 | 233281414 | Hex. Flange Elastic Nut M8 |
| 1700 | 512061137 | Engine Stopper |
| 1720 | 512061354 | Spacer |
| 2000b | 512061083 | Rubber |
| 2000c | 420441840 | Screw |
| 2000h | 293650079 | Norma Clamp |
| 2000n | 207652544 | Hex. Flange Screw M5 X 25 |
| 2000p | 233251434 | Flange Elastic Nut M5 |
| 2000q | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 2005 | 515178563 | Pressure Sensor And Air Temperature |
| 2020 | 250000759 | Torx Truss Pt K40 X 16 |
| 2030 | 293650091 | Norma Clamp |
| 2045 | 293650079 | Norma Clamp |
| 2050 | 420201630 | Rubber Cap |
| 2060 | 512061274 | Airbox Support |
| 2070 | 293150103 | Pop Rivet 3/16" |
| 2080 | 293150104 | Pop Rivet 3/16" |
| 2090 | 512061281 | Inlet Tube |
| 2100 | 293650077 | Norma Clamp |
| 3600 | 512061326 | Throttle Cable |
| 3690 | 414274500 | Circlip |
| 3800a | 414440800 | Socket Set Screw M8 X 10 |
| 3810 | 512060860 | Lower Housing |
| 3820 | 512061266 | Throttle Ass'y |
| 3840 | 250000991 | Flange Screw M5x12 |
| 4200 | 512061168 | Ignition Coil |
| 4210 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 4220 | 512061166 | Ignition Cable |
| 4240 | 512061238 | Spark Plug Wire Holder |
| 4270 | 293300059 | O-Ring |
| 5050 | 512060993 | Clamp |
| 5300 | 512060136 | Starter Grip |
| 7900 | 512061329 | Oil Tank |
| 8000 | 519000332 | Oil Pump |
| 8010 | 512061379 | Hose 7,94 mm ID |
| 8040 | 512061381 | Hose |
| 8060 | 293650140 | Oetiker Clamp |
| 8090 | 503195447 | Protector Tube |
| 8120 | 250000767 | Torx Truss Screw M6 X 12 |
| 8130 | 250000759 | Torx Truss Pt K40 X 16 |
