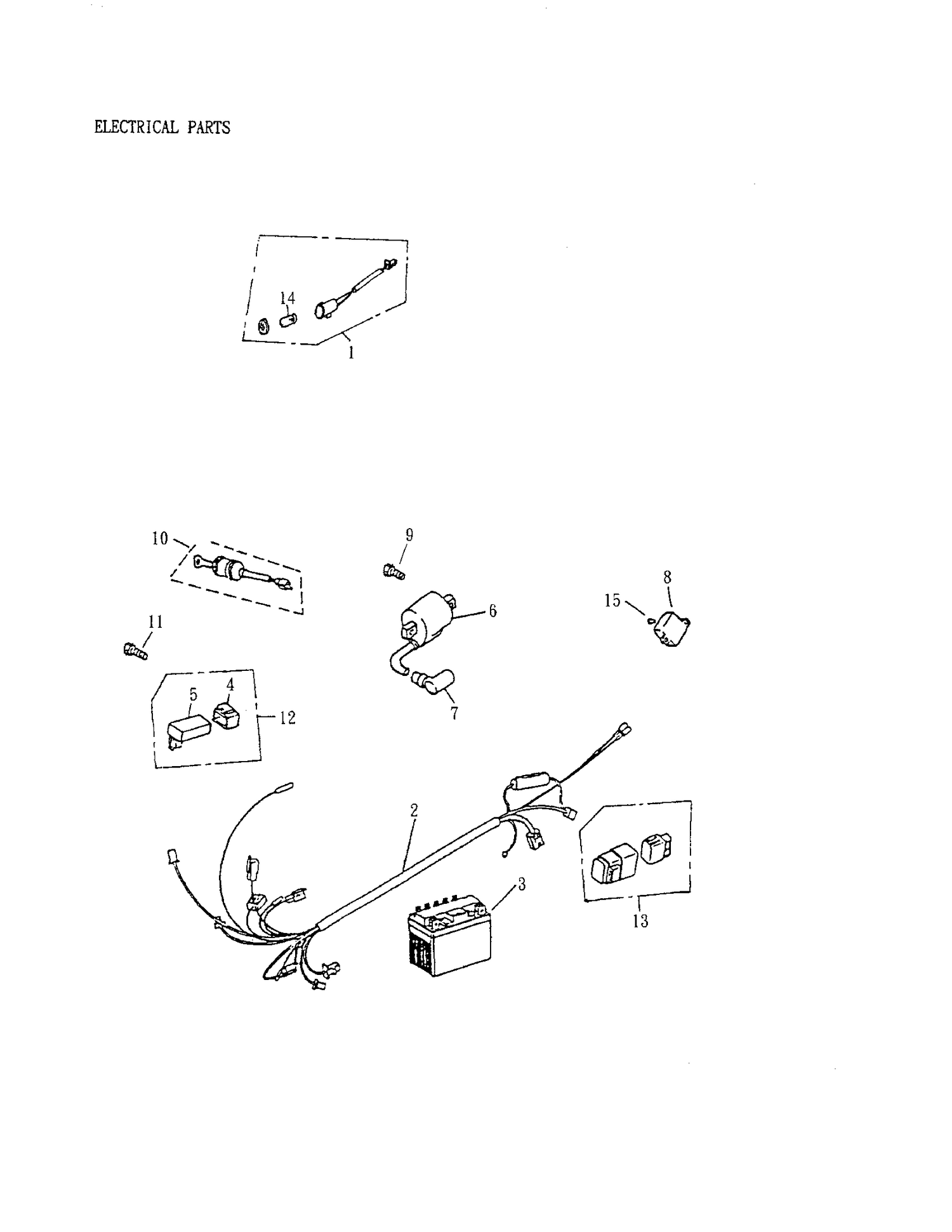

10- Electrical Components
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A37250152000 | Neutral Indicator |
| 2 | A32100172001 | Main Wire Harness |
| 3 | A31500166000 | BATTERY - Call your local BRP dealership |
| 4 | A30411152000 | Fix Rubber |
| 5 | A30410152000 | C.D.I. UNIT - Call your local BRP dealership |
| 6 | A30510172000 | HIGH TENSION COIL - Call your local BRP dealership |
| 7 | A30700101000 | Spark Plug Cap |
| 8 | A31600110000 | Regulator Rectifier |
| 9 | A9390305025 | Tapping Screw Truss Head Phillips M5 X 2 |
| 10 | A3510016600A | MAIN SWITCH ASS'Y - Call your local BRP dealership |
| 11 | A9380006015S | Pan Head Phillips Bolt M6 X 15 |
| 12 | A30400152000 | C.D.I. UNIT - Call your local BRP dealership |
| 13 | A38500152000 | Starting Relay Ass'y |
| 14 | A34908101000 | NEUTRAL INDICATOR BULB - Call your local BRP dealership |
| 15 | A9390305016 | Tapping Screw Truss Head Phillips M5 X 1 |
