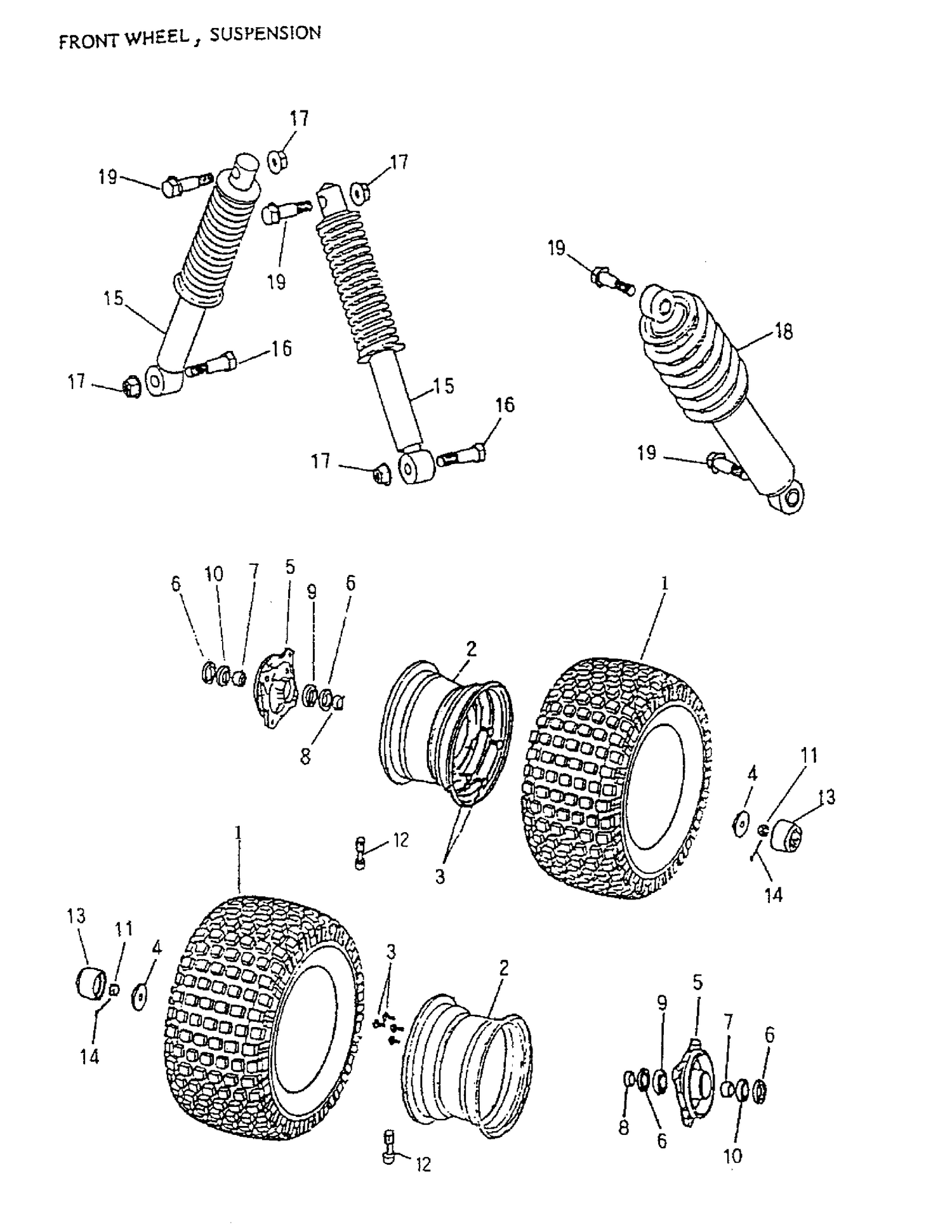

07- Front Wheel, Suspension 166a-17
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A42711145000 | Tire, 16/8-7 |
| 3 | A960001002014 | Hex. Washer Face Bolt, 10 X 20 |
| 4 | A941011240045 | PLAIN WASHER, 12 X 40 X 4.5 - Call your local BRP dealership |
| 5 | A4271014500B | Front Brake Drum |
| 6 | A9650022357 | OIL SEAL, 22 X 35 X 7 - Call your local BRP dealership |
| 7 | A44620145000 | Spacer Tube |
| 8 | A44311145000 | FRONT COLLER - Call your local BRP dealership |
| 9 | A961006002Z | RADIAL BALL BEARING, 6002Z - Call your local BRP dealership |
| 10 | A961006003Z | Radial Ball Bearing, 6003z |
| 11 | A940511200017 | NUT CROSS THREAR M12 - Call your local BRP dealership |
| 12 | A42616145000 | Air Nozzle |
| 13 | A4281414500A | RUBBER COVER - Call your local BRP dealership |
| 14 | A9420130320 | COTTER PIN - Call your local BRP dealership |
| 16 | A920001004014G | Hex. Bolt M10 X 40 |
| 17 | V9035010000010LL | Nylon Nut M10 This part replaces A9035010000G. |
