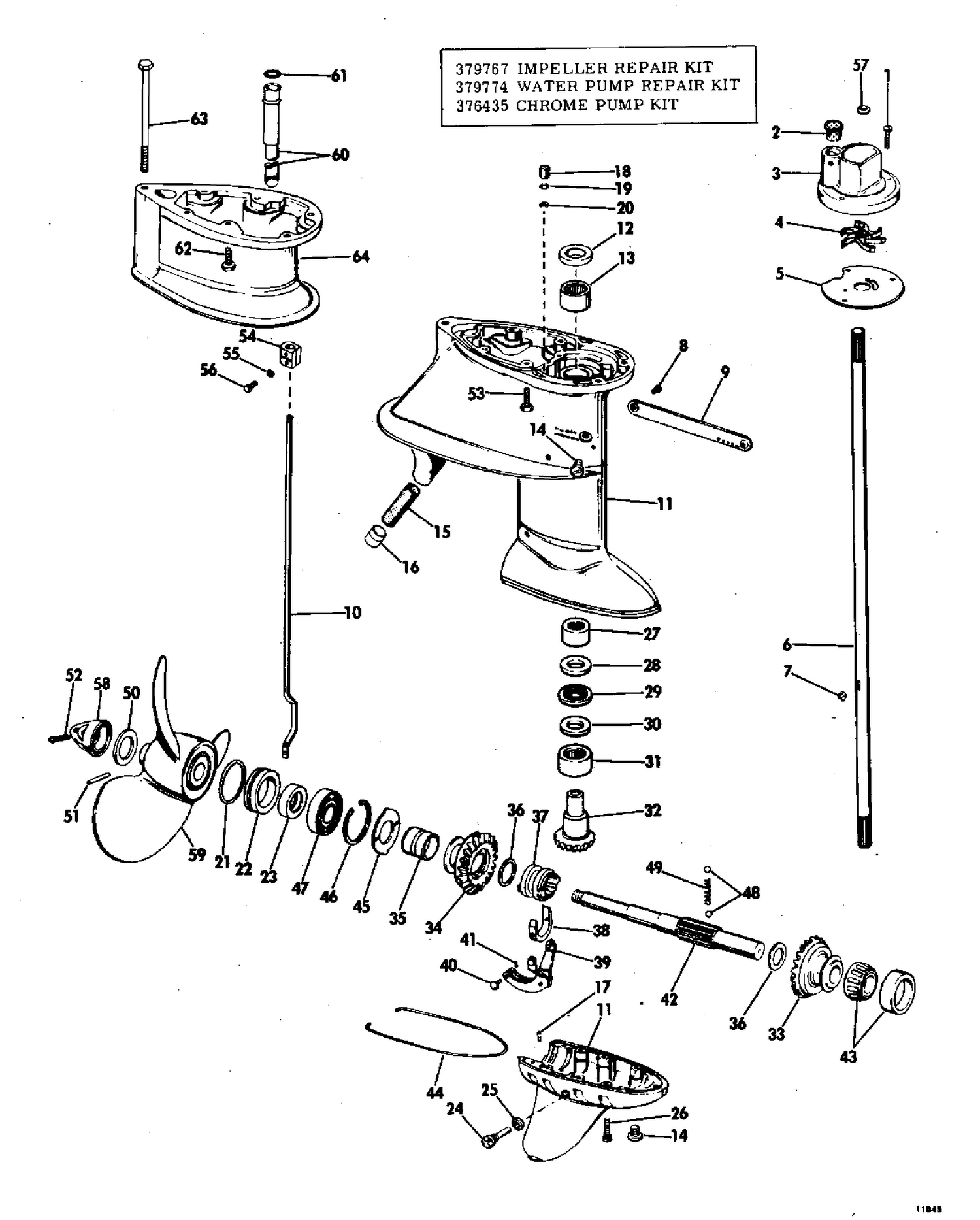

GEARCASE

GEARCASE

Parts (48)

RefPart NumberDescription
1 0302677 SCREW
2 0304026 GROMMET
3 0303831 HOUSING, Impeller
4 0378891 IMPELLER ASSY.
5 0303866 PLATE, Impeller housing
6 0384961 DRIVESHAFT, Standard
6 0384962 DRIVESHAFT, Long
7 0317078 KEY, Impeller
8 0303587 SCRES,Cover plate This part replaces 0302509.
9 0302616 COVER, Water by - pass
10 0305287 ROD, Shif, lower, standard
10 0305519 ROD, Shift, lower, long
11 0384909 GEARCASE & BRG ASSY
17 0300611 AXE, turbine vers arbre d'entraînement
19 0301877 O RING SHIFT ROD
22 0397186 HOUSING, Oil retainer This part replaces 0303050.
25 0307853 O RING
26 0330562 SCREW, Gearcase This part replaces 0304070.
28 0304795 PINION WASHER, Upper
29 0376857 BEARING, Thrust
30 0304796 PINION WASHER , Lower
31 0376858 BEARIN, Pinion
32 0322605 PINION This part replaces 0308692.
36 0302565 WASHER, Thrust
37 0312866 DOG, Shifter clutch
38 0305286 CRADLE, Clutch dog
39 0305288 LEVER ,Shifter
42 0312867 SHAFT, Propeller
43 0375761 BEARING, Roller
44 SEAL, Gearcase halves
45 0302743 WASHER, Thrust
46 0302528 RING, Retaining, gearcase
47 0307545 BEARING, Ball, prop. shaft
50 0304576 THRUST WASHER
51 0304575 DRIVE PIN, Propeller
53 0909533 SCREW, Pressure relief valve cover This part replaces 0309646.
54 0304081 CONNECTOR 5 " EXTENSION KIT
58 0305294 NUT, Propeller
59 0376738 PROPELLER, 11 x 9
59 0378571 PROPELLER, 10-3/8 x 14
59 0380637 PROPELLER 10-1 2 X 12
59 0384460 PROPELLER, 10-1 2 x 13
59 0385955 PROPELLER, 10-3/4 x 11 This part replaces 0378581.
60 0304175 ADAPTER Water tube
62 0909533 SCREW, Pressure relief valve cover This part replaces 0309646.
0378726 0378726 SET OF GEARS
0384907 0384907 EXTENSION KIT ASSEMBLY
0384910 0384910 GEARCASE ASSEMBLY, Less driveshaft and pump
