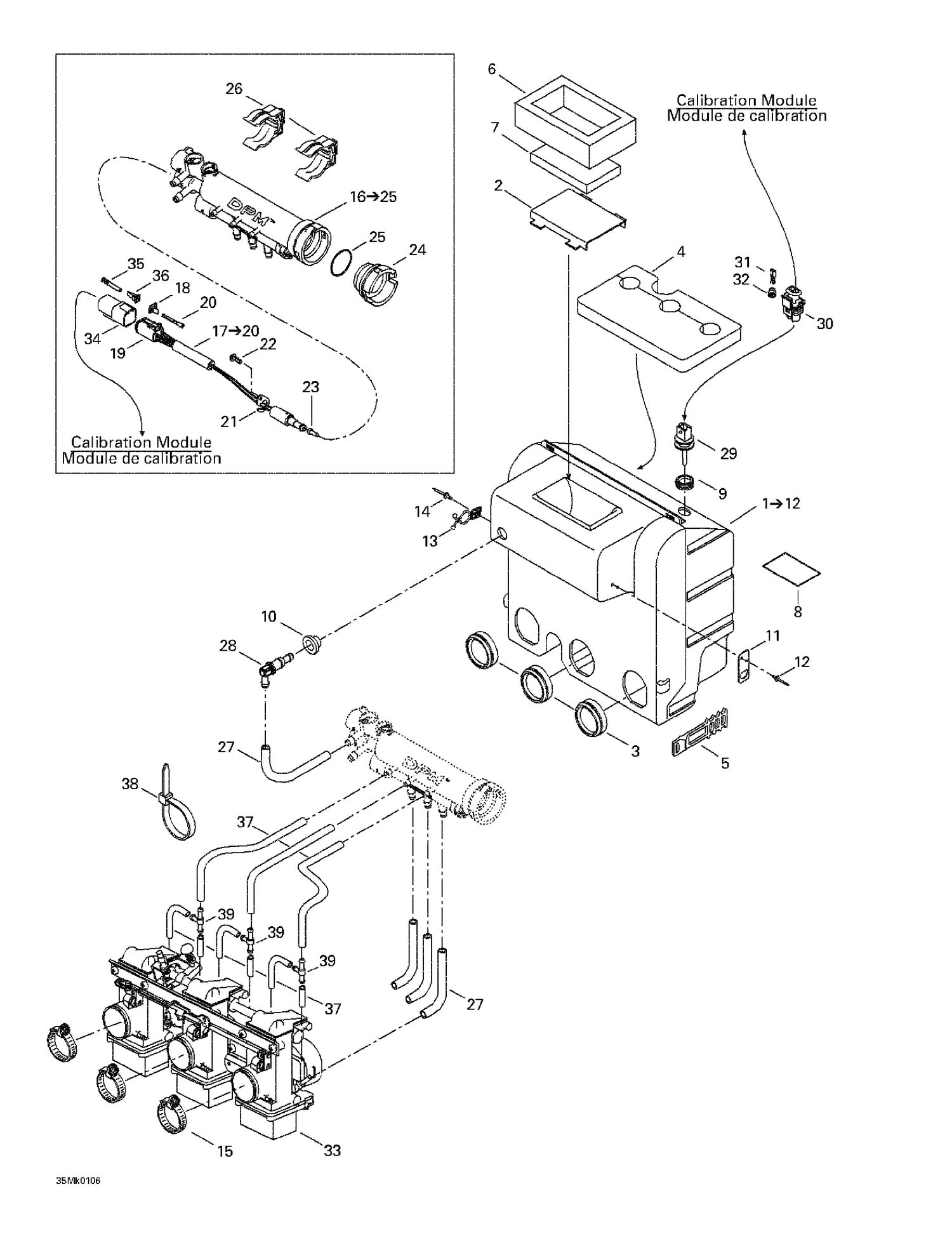

02- Air Intake System
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 517294400 | Intake Grill |
| 3 | 570069100 | Air Intake Adaptor |
| 4 | 415081200 | Inner Foam |
| 5 | 570069700 | LATCH - Call your local BRP dealership |
| 6 | 415081300 | Lower Foam |
| 7 | 415081400 | Air Filter |
| 8 | 516002715 | CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516000130. |
| 9 | 570065500 | GROMMET - Call your local BRP dealership |
| 10 | 513032908 | Grommet |
| 11 | 512059211 | Support |
| 12 | 293150034 | RIVET_BULBEX 4.0 X 21.2 - Call your local BRP dealership |
| 13 | 415115100 | CLIP - Call your local BRP dealership |
| 14 | 293150034 | RIVET_BULBEX 4.0 X 21.2 - Call your local BRP dealership |
| 15 | 420951510 | Clamp |
| 18 | 409014900 | FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership |
| 19 | 409015400 | FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership |
| 20 | 278000632 | Female Terminal |
| 21 | 415061600 | SOLENOID LOCK - Call your local BRP dealership |
| 22 | 241140060 | Screw K40 X 10 |
| 23 | 404161825 | STARTER JET - Call your local BRP dealership |
| 24 | 512058949 | Cap |
| 25 | 512058950 | O-Ring |
| 26 | 512058919 | SUPPORT - Call your local BRP dealership |
| 27 | 219704410 | Polyurethane Hose 10000Mm Long |
| 28 | 414580600 | Elbow Male Connector |
| 29 | 270600000 | AIR TEMPERATURE SENSOR - Call your local BRP dealership |
| 30 | 278001005 | Male Housing, 2 Circuits |
| 31 | 278000998 | Female Terminal |
| 32 | 278000999 | Wire Seal |
| 33 | 512059435 | Carburetor Kit TM 38-321 |
| 34 | 409015200 | Male Terminal Housing, 6 Circuits |
| 35 | 409014800 | MALE TERMINAL - Call your local BRP dealership |
| 36 | 409014600 | Male Lock, 6 Circuits |
| 37 | 404161888 | HOSE - Call your local BRP dealership |
| 38 | 293750002 | Tie Wrap 142 mm |
