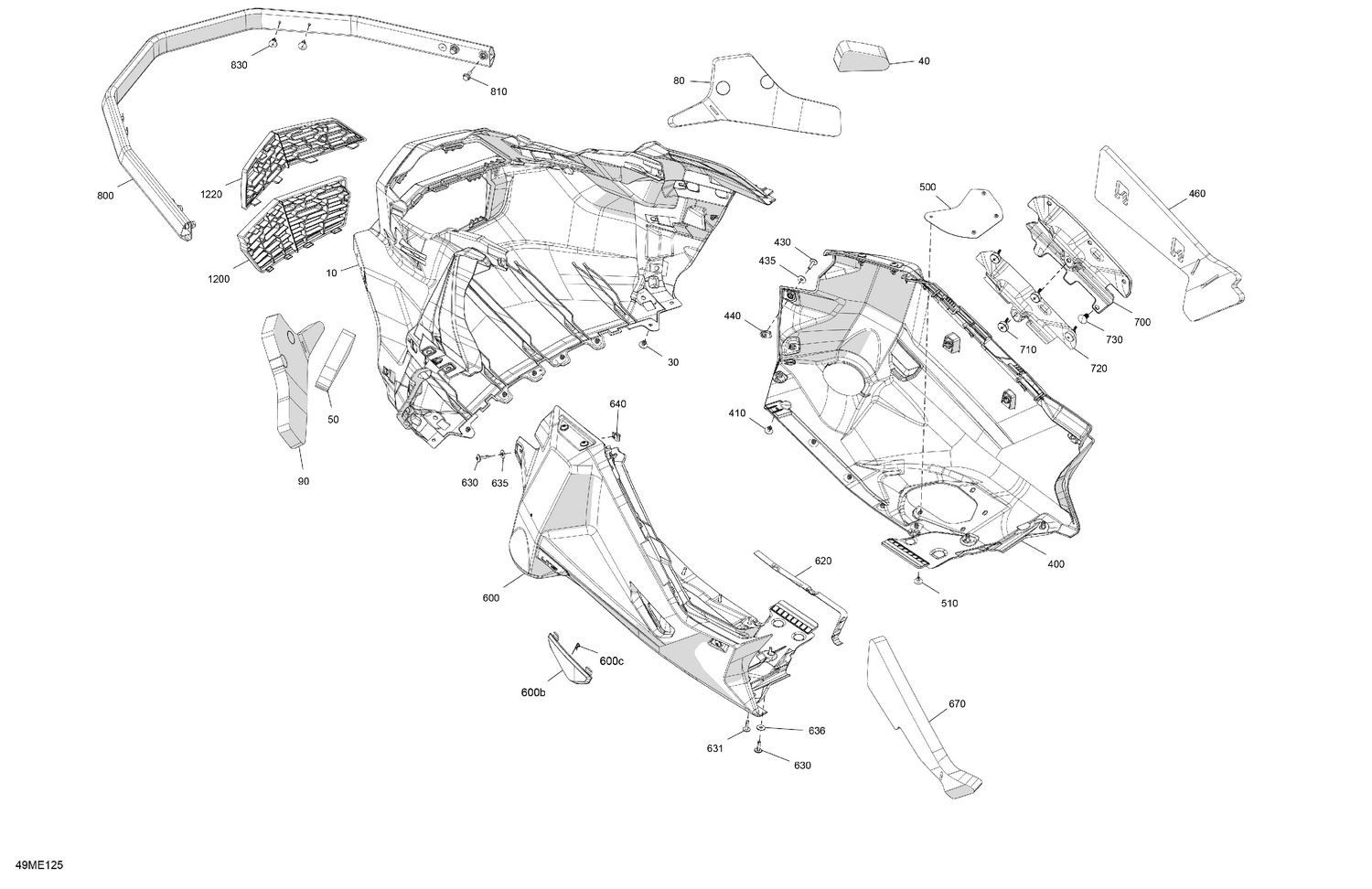

| Ref | Part Number | Description |
|---|
| 10 |
502007725 |
Deep Black, Front Bottom Pan |
| 30 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 40 |
502007937 |
RH Upper Front Bottom Pan Foam |
| 50 |
502007938 |
LH Upper Front Bottom Pan Foam |
| 80 |
502007941 |
RH Front Lower Bottom Pan Foam |
| 90 |
502007942 |
LH Front Lower Bottom Pan Foam |
| 400 |
502007882 |
RH Bottom Pan |
| 410 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 430 |
250000586 |
Torx Truss M5 X 20 |
| 435 |
517307442 |
Washer |
| 440 |
250000958 |
Panel Nut M5 X 0.8 |
| 460 |
502007944 |
RH Rear Bottom Pan Foam |
| 500 |
502007868 |
Plate |
| 510 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 600b |
502007676 |
Bottom Pan Door |
| 600c |
269800431 |
Hairpin Cotter |
| 620 |
219704476 |
Gasket, Neoprene 2000Mm Long |
| 630 |
250001232 |
Screw Torx M5 X 20 |
| 631 |
250000586 |
Torx Truss M5 X 20 |
| 635 |
517307442 |
Washer |
| 636 |
250200025 |
Washer M5 |
| 640 |
250000958 |
Panel Nut M5 X 0.8 |
| 670 |
502007946 |
LH Rear Bottom Pan Foam |
| 700 |
502008087 |
Heat Shield |
| 710 |
502008752 |
Stopper |
| 720 |
502008156 |
Reflective Sheet |
| 730 |
293730010 |
Black Dart |
| 800 |
502008079 |
Front Bumper |
| 810 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 830 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 1200 |
502007979 |
Lower Prefilter Grille |
