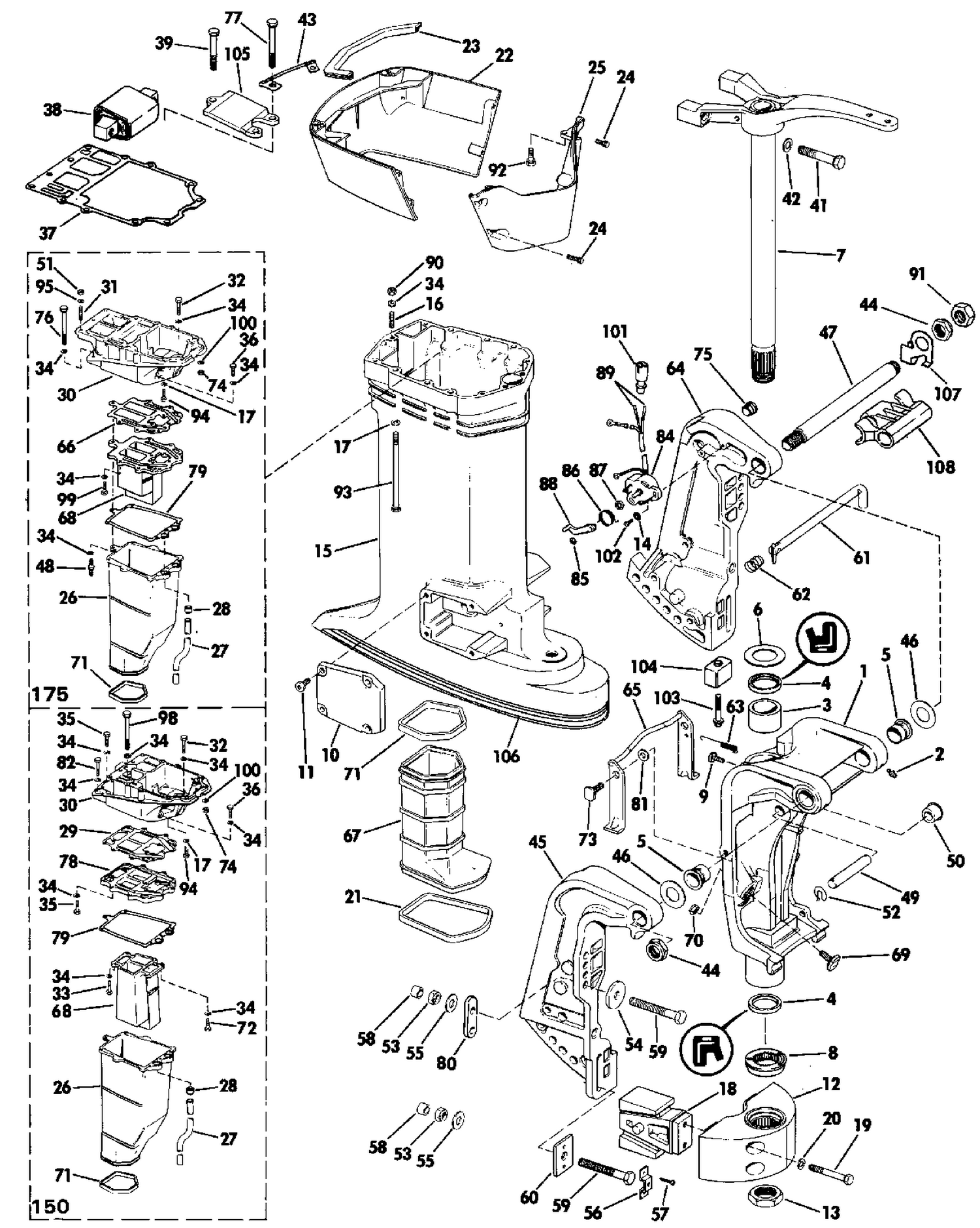

MIDSECTION

MIDSECTION

Parts (87)

RefPart NumberDescription
1 0432708 SWIVEL BRACKET This part replaces 0398935.
1 0432710 SWIVEL BRACKET This part replaces 0398309.
5 0321035 BRUSHING, Swivel bracket
6 0320866 RONDELLE DE BUTÉE, arbre d'articulation
7 0392518 STEERING ARM ASSY.
7 0392519 STEERING ARM ASSY.
8 0327696 CONTRE-CROU, arbre d'articulation
9 0328696 SCREEN, Ground lead
10 0338942 COVER, Mount bracket lower This part replaces 0320864.
11 0322000 SCREW, Starter to crankcase
12 0340006 BRACKET, Mount This part replaces 0327051.
13 0320746 CROU, support de montage
15 0332744 EXHAUST HOUSING
15 0435318 EXHAUST HOUSING, Outer This part replaces 0332745.
16 0328742 NUT This part replaces 0306338.
18 0434629 MOUNT, Lower This part replaces 0391774.
18 0434632 MONTURE CAOUTCHOUC, inférieur This part replaces 0391710.
19 0328078 SCREW, Mount
20 0306314 L'WASHER,Scr,long
21 0320961 JOINT, boîtier d'engrenages vers carter intérieur
22 0983524 COVER, Exhaust housing, rear
23 0334824 SEAL, Cover This part replaces 0911117.
25 0323800 COVER, Exhause housing, front, plastic
26 0327800 EXH. HSG., Inner, upper This part replaces 0323548.
27 0346897 TUBE WATER, Inlet This part replaces 0321016.
27 0346898 TUBE WATER, Inlet This part replaces 0321015.
28 0305145 GROMMET
29 0324516 GASKET, Adapter to plate, 150
30 0331033 ADAPTER, Exh. hsg
30 0434157 ADAPTER, Exhaust, hsg., 175 This part replaces 0395810.
31 0301185 STUD
32 0303458 SCREW, Adapter in inner housing
33 0306778 ECREW,Exhaust cover,1-3/8"long
35 0306418 VIS, ancrage
36 0306409 VIS, collecteur vers carter-moteur
37 0323214 GASKET, Adap. to pwrhd, 175
37 0335503 GASKET, Adap. to pwrhd., 150 This part replaces 0333658.
38 0395539 RUBBER MOUNT ASSY., Upper
41 0335612 SCREW, Upper This part replaces 0328692.
42 0322624 WASHER, Lag screw This part replaces 0313169.
43 0583967 GROUND LEAD This part replaces 0583357.
44 0323599 LOCKNUT This part replaces 0316828.
45 0395844 STEERING BRACKET, ASSY., Stbd.
47 0335553 TILT TUBE This part replaces 0321052.
48 0306778 ECREW,Exhaust cover,1-3/8"long
49 0320792 PIN
52 0321054 SPRING CLIP
53 0363254 NUT, Stern bracket screw This part replaces 0321861.
54 0307238 RONDELLE
55 0320248 RONDELLE, écrou
56 0318273 Bolt hex retainer 1/2 in.
57 0319886 SCREW
58 0318572 Bolt thread protective cap 1/2 in.
59 0318573 SCREW, Bracket mount, 3 1/2 in. (12.7 x 89mm) This part replaces 0327053.
59 0363011 SCREW, Stern bracket mounting, 1/2 x 5.75 in. (146 mm) This part replaces 0321577.
59 0363012 SCREW, Bracket mounting This part replaces 0313327.
60 0318272 Nut backing plate (square) 1/2 in.
61 0436541 ROD Assy, Thrust This part replaces 0387278.
62 0321053 SORUBG,Thrust rod
64 0396309 STERN BRACKET ASSEMBLY, Port
65 0390442 LOCATING LEVER, Rod
66 0323292 GASKET, Adapter to megaphone
67 0327796 EXHASUT HSG,Inner lower
67 0327797 EXHAUST HOUSING, Inner lower
68 0323220 MEGAPHONE, 175 This part replaces 0328012.
68 0327802 TUNING MEGAPHONE
71 0320936 JOINT, boîtier échappement, inférieur
72 0319883 SCREW, Exhaust cover
73 0329109 SHOULDER SCREW
76 0303398 VIS, support This part replaces 0302030.
77 0330931 VIS, support supérieur
78 0327803 PLATE ASSY.
79 0323222 GASKET, Inner exh. hsg to meg
80 0321735 SUPPORT, Stern bracket
82 0600014 SCREW
84 0583358 SENDING UNIT ASSY
90 0328742 NUT This part replaces 0306338.
91 0322376 NUT, Wiper, tilt tube
93 0328698 SCREW, Adapter to crankcase
98 0315071 SCREW
99 0306418 VIS, ancrage
103 0333350 SCREW, Anode
104 0433458 ANODE, Port stern bracket This part replaces 0398331.
105 0331022 PLATE
106 0210708 DECAL, Ex. hsg. Ev.
106 0332731 DECAL Exh. hsg., Jo.
107 0352105 CLAMP, Cable This part replaces 0327264.
