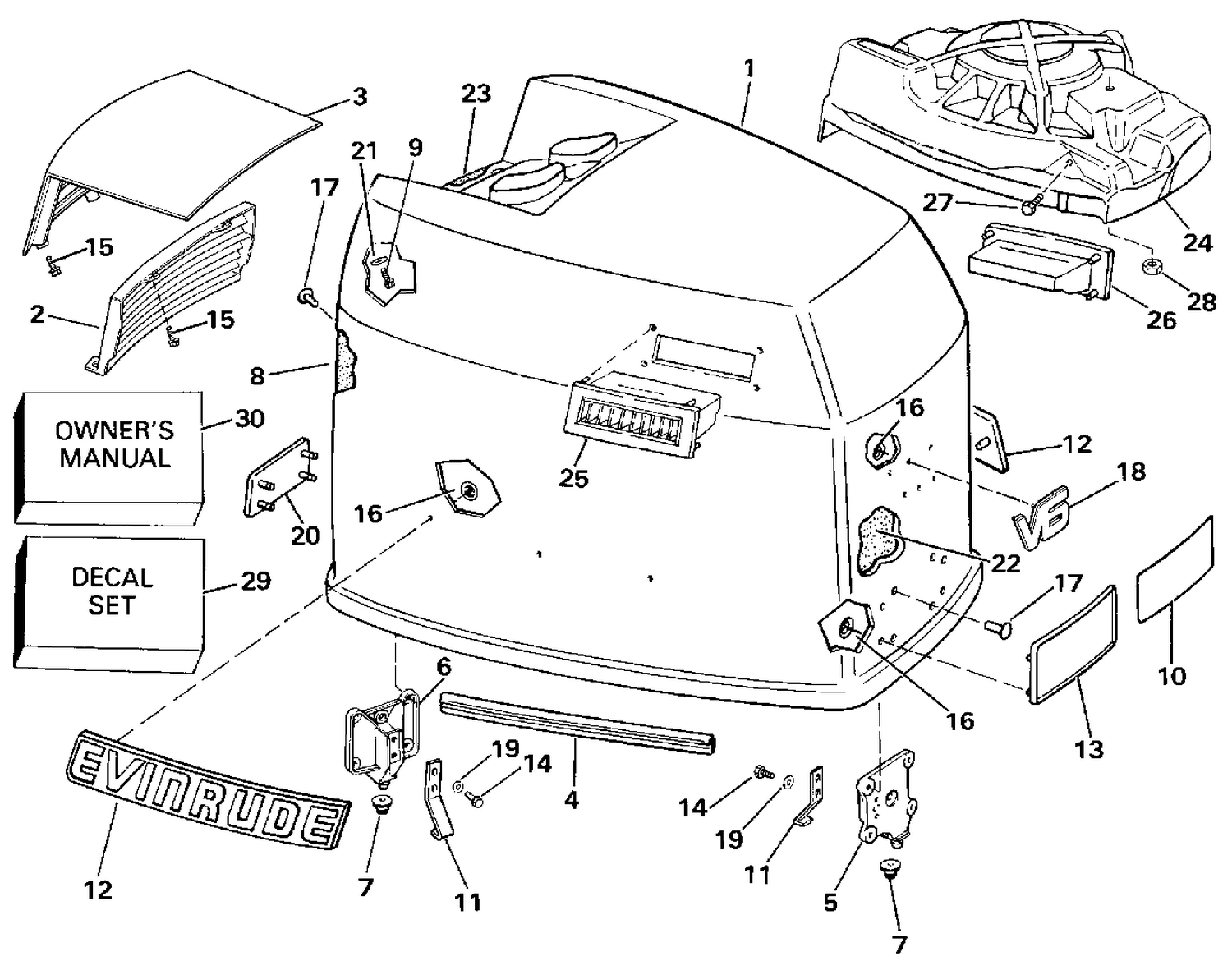

ENGINE COVER - EVINRUDE - 200TX, 200CX, 225T, 225P, 225C
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0283626 | ENGINE COVER ASSY., 200TX |
| 1 | 0283627 | ENGINE COVER ASSY., 200CX |
| 1 | 0283628 | ENGINE COVER ASSY., 225 |
| 1 | 0283629 | ENGINE COVER ASSY., 225 |
| 1 | 0283630 | ENGINE COVER ASSY., 225 |
| 2 | 0331945 | BAFFLE |
| 3 | 0331944 | TILT HANDLE |
| 5 | 0329762 | LOCATING BRACKET, Front |
| 6 | 0394976 | LOCATING BRACKET, Rear |
| 8 | 0334947 | SOUND BLANKET, Side |
| 10 | 0211218 | PLATE, Applique, front |
| 12 | 0210556 | APPLIQUE, Evinrude |
| 13 | 0211549 | APPLIQUE, Front |
| 18 | 0210499 | APPLIQUE, Front |
| 20 | 0210548 | APPLIQUE, Rear 200TX |
| 20 | 0210788 | APPLIQUE, Rear, 225 |
| 22 | 0334948 | SOUND BLANKET, Front |
| 23 | 0334949 | SOUND BLANKET, Rear |
| 24 | 0334911 | BAFFLE |
| 25 | 0334964 | LOUVER, Starboard |
| 26 | 0334963 | LOUVER, Port |
| 27 | 0334967 | SCREW, Baffle |
| 28 | 0336188 | NUT, Baffle |
| 29 | 0283798 | DECAL SET |
| 30 | 0211412 | OWNER'S MANUAL |
| 30 | 0211475 | OWNER'S MANUAL |
| 30 | 0432383 | OWNER'S MANUAL |
