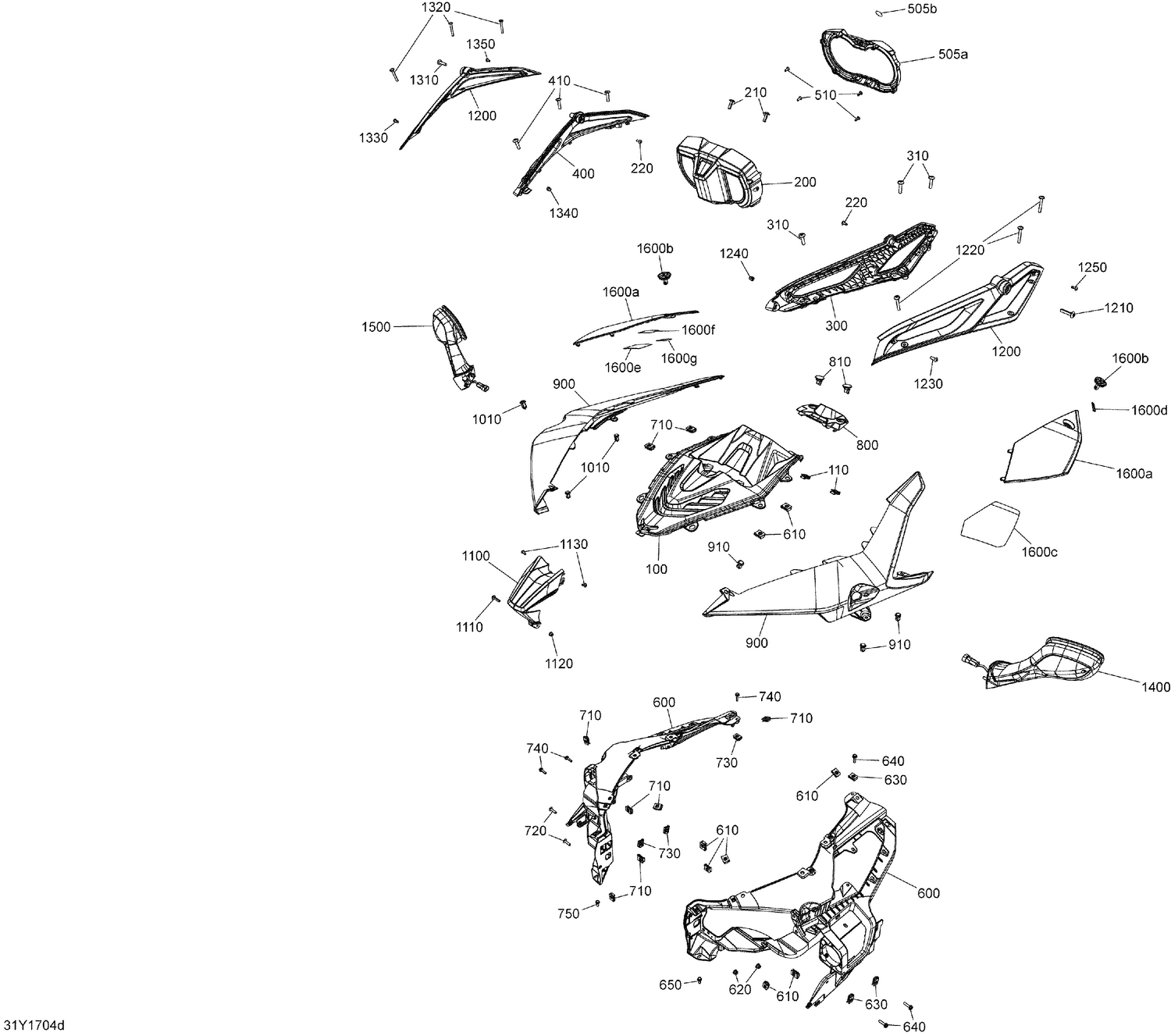

09- Body And Accessories - Console - Package S-STD
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 705006661 | Spring |
| 60 | 705010625 | Spring |
| 70 | 232561600 | Hex. Elastic Stop Nut M6 |
| 100 | 708400208 | Upper Fairing |
| 110 | 250100208 | Panel Nut M6 X 1.0 This part replaces 250100169. |
| 200 | 708400005 | Cluster Holder |
| 210 | 250000722 | Torx Screw M6 X 20 |
| 505a | 708400022 | CLUSTER BEZEL - Call your local BRP dealership |
| 505b | 516006224 | BRP Logo 20MM x 2MM |
| 510 | 250000577 | Torx Truss Screw K40 X 12 |
| 600 | 708400170 | LH Console Support |
| 600 | 708400171 | RH Console Support |
| 610 | 250100208 | Panel Nut M6 X 1.0 This part replaces 250100169. |
| 620 | 233261494 | Hex. Flange Elastic Nut M6 |
| 630 | 250100208 | Panel Nut M6 X 1.0 This part replaces 250100169. |
| 640 | 250000793 | Hex. Flange Screw M6 X 25 |
| 650 | 210261650 | Hex. Flange Screw M6 X 16 |
| 710 | 250100208 | Panel Nut M6 X 1.0 This part replaces 250100169. |
| 720 | 250000758 | Torx Screw M6 X 25 |
| 730 | 250100208 | Panel Nut M6 X 1.0 This part replaces 250100169. |
| 740 | 250000793 | Hex. Flange Screw M6 X 25 |
| 750 | 210261650 | Hex. Flange Screw M6 X 16 |
| 800 | 708400205 | Switch Bezel |
| 810 | 708400046 | Cap |
| 910 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 1010 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 1110 | 250000762 | Torx Screw M5 X 25 |
| 1120 | 233251494 | Elastic Flange Nut M5 |
| 1210 | 250000604 | SCREW-TORX TRUSS CONE HD.M6X30 - Call your local BRP dealership |
| 1220 | 250000732 | Torx Screw Nylon |
| 1310 | 250000604 | SCREW-TORX TRUSS CONE HD.M6X30 - Call your local BRP dealership |
| 1320 | 250000732 | Torx Screw Nylon |
| 1400 | 705008964 | LH Lighted Mirror Ass'y |
| 1500 | 705008969 | RH Lighted Mirror Ass'y |
| 1500a | 705010625 | Spring |
| 1500b | 232561600 | Hex. Elastic Stop Nut M6 |
| 1540a | 705006661 | Spring |
| 1600b | 708400065 | Cover Latch Quarter Turn |
| 1600c | 704905464 | Warning Decal |
| 1600d | 704904673 | Safety Card Decal |
| 1600e | 704904924 | Caution Decal Oil Level, English |
| 1600f | 704903119 | Brake Fluid Warning Decal |
| 1600g | 704904812 | Decal, XPS |
| 2000a | 269502408 | Housing Nut M6 This part replaces 269501166. |
| 2000b | 232561200 | Brass Elastic Stop Nut M6 |
