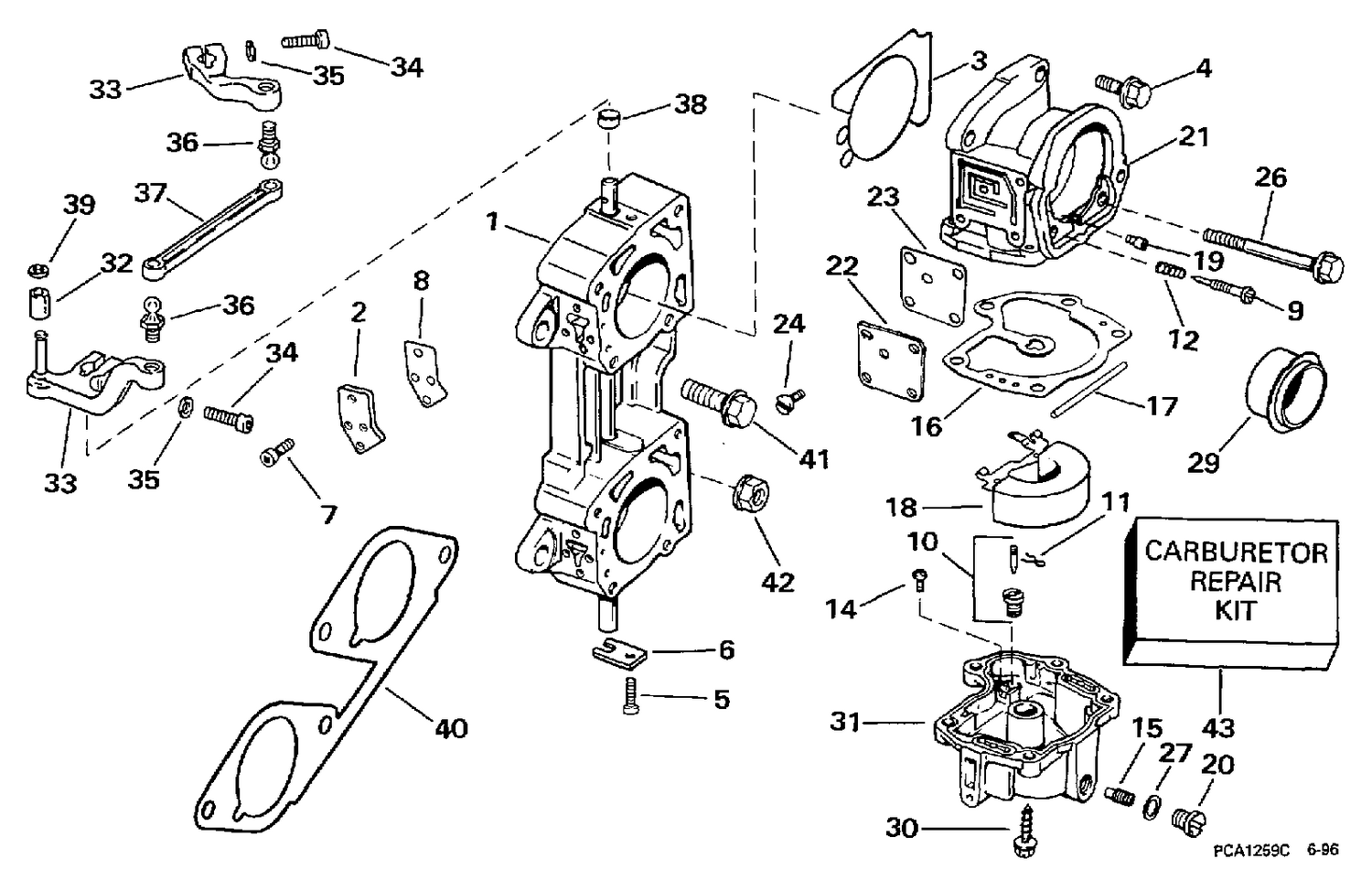

CARBURETOR & LINKAGE
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 11 | 0336842 | CLIP, SPRING |
| 26 | 0335223 | VIS, poignée vers capot bâbord/tribord |
| 32 | 0432639 | GALET, contre-came |
| 33 | 0437604 | LEVER & PIN ASSY., Starboard |
| 33 | 0437687 | LEVER & BALL ASSY., Port |
| 37 | 0341622 | LINK |
| 38 | 0317162 | BUSHING, Link |
| 39 | 0324678 | JOINT TORIQUE Galet de came de papillon |
| 40 | 0332319 | GASKET, Carburetor mounting |
| 42 | 0316355 | BUT, Carburetor mounting This part replaces 0315204. |
| 0438516 | 0438516 | CARBURETOR ASSY. |
