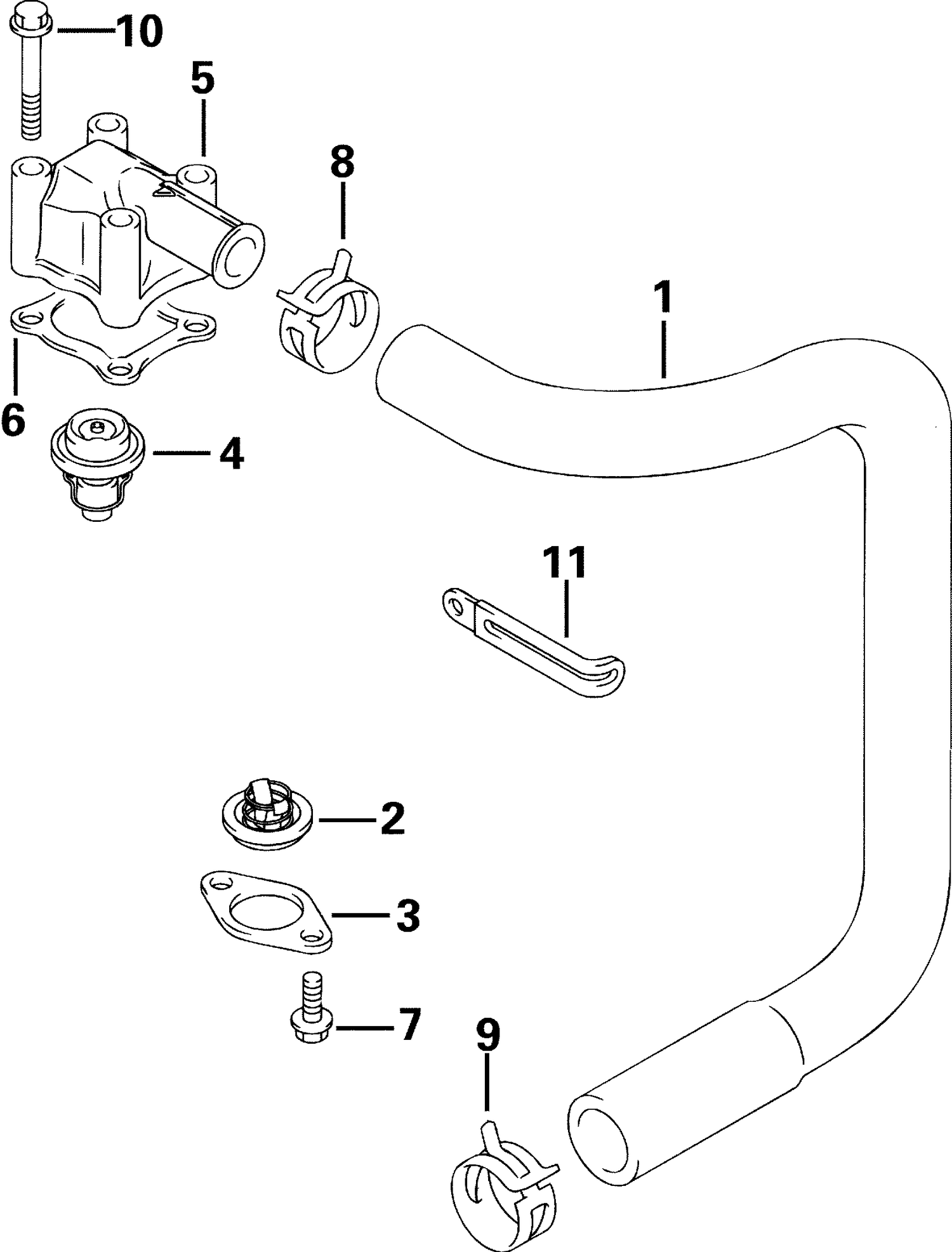

THERMOSTAT
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5031922 | HOSE, Water return |
| 2 | 5032471 | VALVE, WATER PRESS This part replaces 5030740. |
| 3 | 5030741 | COVER, Water pressure valve |
| 4 | 5030742 | THERMOSTAT |
| 4 | 5031758 | THERMOSTAT (60 Deg C) |
| 4 | 5031762 | PIVOT, Throttle lever |
| 5 | 5031994 | HOUSING, Thermostat |
| 6 | 5032285 | GASKET, THERMOSTAT COVER |
| 8 | 5030581 | CLAMP |
| 9 | 5030582 | CLAMP |
| 10 | 5030991 | BOLT |
