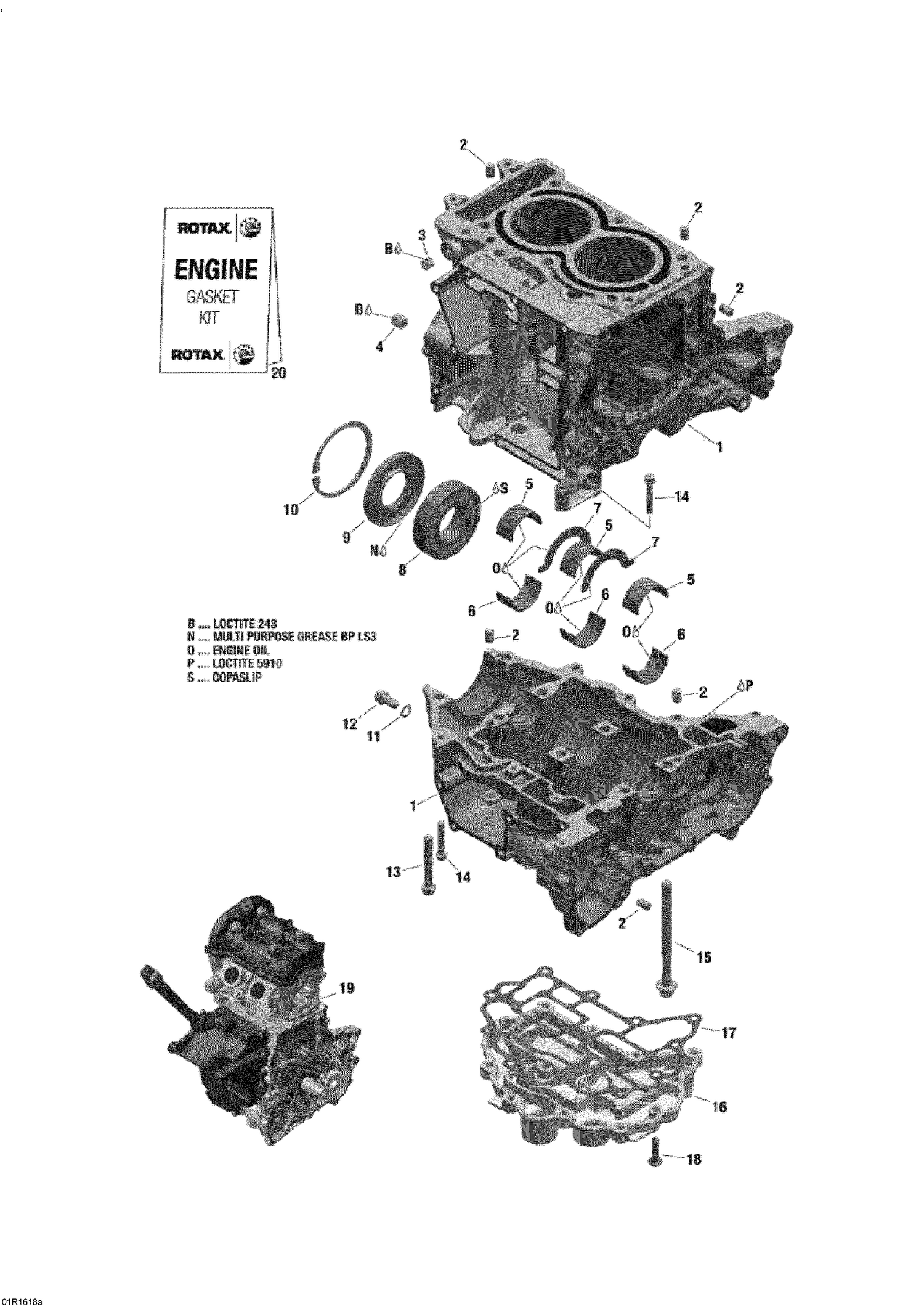

| Ref | Part Number | Description |
|---|
| B |
Not |
Available As Spare Part - Loctite 243 |
| N |
Not |
Available As Spare Part - Multipurpose Grease BP LS3 |
| O |
Not |
Available As Spare Part - Engine Oil |
| P |
Not |
Available As Spare Part - Loctite 5910 |
| 2 |
420632010 |
Center Pin 8 X 12 |
| 5 |
420933180 |
Cushion |
| 6 |
420933185 |
Cushion |
| 7 |
420933140 |
Ring Half |
| 8 |
420832232 |
Ball Bearing |
| 10 |
420845790 |
Retaining Ring |
| 16 |
420911124 |
Oil Sump This part replaces 420911122. |
| 19 |
420060203 |
Long Block 602 This part replaces 420060202. |
| 20 |
420686024 |
Gasket Set Engine 602 This part replaces 420686022. |
