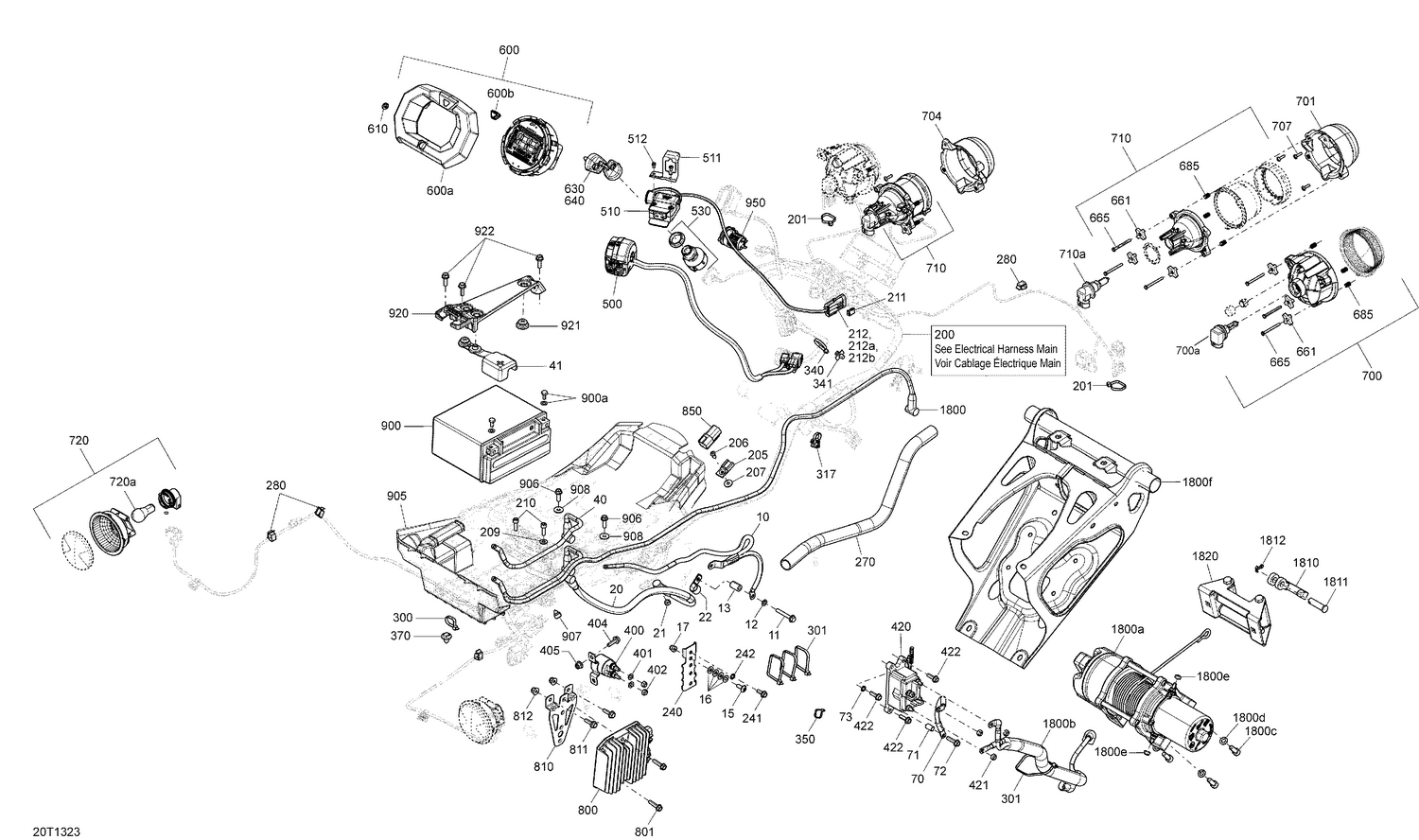

10- Electrical System
Parts (71)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 710004382 | Ground Cable This part replaces 710001747. |
| 11 | 207564044 | Hex. Flange Screw M6 X 40, Scotch Grip |
| 12 | 234161601 | Lock Washer Helical M6 |
| 13 | 517203200 | Spacer |
| 15 | 250000223 | Torx Screw M6 X 16 |
| 16 | 224061121 | Flat Washer |
| 17 | 232361493 | Domed Nut M6 |
| 20 | 710001750 | POSITIVE CABLE - Call your local BRP dealership |
| 21 | 232561414 | Elastic Stop Nut M6 |
| 22 | 518321570 | Open Clamp |
| 40 | 710004376 | Positive Cable This part replaces 710001749. |
| 41 | 710006729 | Battery Cable Cap This part replaces 710002569. |
| 200 | 710003623 | WIRING HARNESS MAIN - Call your local BRP dealership |
| 201 | 293750002 | Tie Wrap 142 mm |
| 205 | 270000141 | Clip |
| 206 | 390402300 | Pop Rivet 3/16" |
| 207 | 391301600 | Washer |
| 209 | 224061121 | Flat Washer |
| 210 | 205562044 | Socket Head Screw M6 X 20, Scotch Grip |
| 212a | 278000281 | Female Terminal Housing, 3 Circuits |
| 212b | 278000216 | Wire Seal |
| 240 | 710002567 | BRACKET - Call your local BRP dealership |
| 241 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 242 | 234461608 | External Serrated Lock Washer 6 mm |
| 270 | 710003260 | Protective Tubing |
| 280 | 414227300 | Clip |
| 300 | 414115200 | Tie-Rap 180 mm |
| 301 | 293750008 | Tie Wrap 368 mm |
| 317 | 710002896 | Tie-Rap Clip |
| 340 | 293750008 | Tie Wrap 368 mm |
| 341 | 293750009 | Tie-Rap 173 mm |
| 350 | 293750001 | Tie Wrap 94 mm |
| 370 | 293730040 | Mount Dart |
| 400 | 710007777 | Starter Relay This part replaces 710001364. |
| 401 | 234161601 | Lock Washer Helical M6 |
| 402 | 232561414 | Elastic Stop Nut M6 |
| 404 | 207662084 | Hex. Flange Screw M6 X 20 |
| 405 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 500 | 703500920 | Switch Kit This part replaces 710003062. |
| 530 | 710008400 | Ignition Switch This part replaces 710002327. |
| 600a | 710002092 | Trim Ring |
| 600b | 710001473 | Button |
| 610 | 704904615 | BRP Logo13 mm This part replaces 704901270. |
| 630 | 710000817 | Black, Electronic Key |
| 640 | 710002183 | Grey, Electronic Key |
| 661 | 572106600 | Handle |
| 665 | 250000718 | Hex. Screw K40 X 45 This part replaces 241044540. |
| 685 | 517168600 | Spring |
| 700 | 710006177 | Low Beam This part replaces 710002191. |
| 700a | 715900141 | Bulb 12V 55W |
| 701 | 710002291 | RH High Front Housing |
| 704 | 710002292 | LH High Front Housing |
| 707 | 250000723 | Phillips Screw K40 X 16 This part replaces 250000084. |
| 710 | 710002525 | High Beam Ass'y |
| 710a | 415129249 | Halogen Bulb |
| 720a | 520000758 | Bulb |
| 800 | 710001191 | Voltage Regulator |
| 801 | 210262550 | Hex. Flange Forming Screw M6 X 25 This part replaces 210262580. |
| 810 | 710001752 | Rectifier Support |
| 811 | 207662044 | Hex. Flange Screw M6 X 20 |
| 812 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 850 | 710003006 | Housing |
| 900a | 250000282 | Battery Bolt Kit This part replaces 295500849. |
| 905 | 710008370 | Battery Support This part replaces 710003325. |
| 906 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 907 | 293830005 | Rubber Bumper |
| 908 | 234062670 | Stainless Steel Flat Washer |
| 920 | 710009129 | Retaining Plate This part replaces 710002404. |
| 921 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 922 | 207662084 | Hex. Flange Screw M6 X 20 |
| 950 | 710001248 | DC Outlet |
