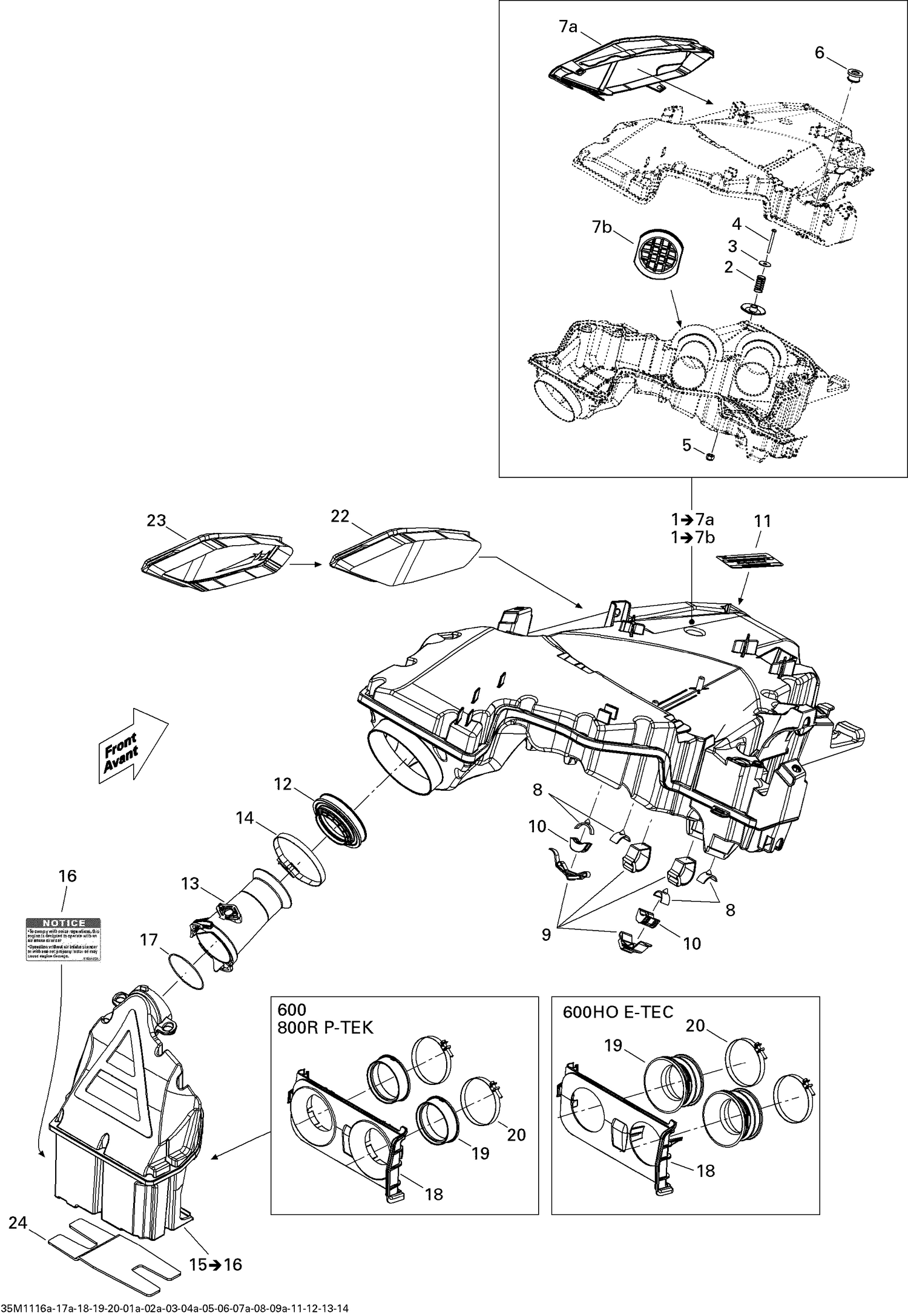

02- Air Intake System 600HO ETEC
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 508000576 | Spring |
| 3 | 224060201 | Flat Washer |
| 4 | 205444086 | Socket Head Screw M4 X 40 |
| 5 | 232541414 | Elastic Stop Nut M4 |
| 6 | 508000574 | Grommet |
| 7a | 508000568 | Air Intake Filter |
| 8 | 508000537 | Stopper |
| 9 | 508000820 | Velcro Strip This part replaces 508000532. |
| 10 | 508000572 | Bumper |
| 11 | 516004566 | Caution Decal, Hot Parts |
| 12 | 508000567 | Boot |
| 13 | 508000662 | Flute |
| 14 | 514052924 | Norma Clamp |
| 16 | 516004572 | DECAL, AIR INTAKE - Call your local BRP dealership |
| 17 | 293300140 | O'RING - Call your local BRP dealership |
| 20 | 508000346 | Gemi Clamp |
| 22 | XXX | Not Available As Spare Parts |
| 23 | XXX | Not Available As Spare Parts |
