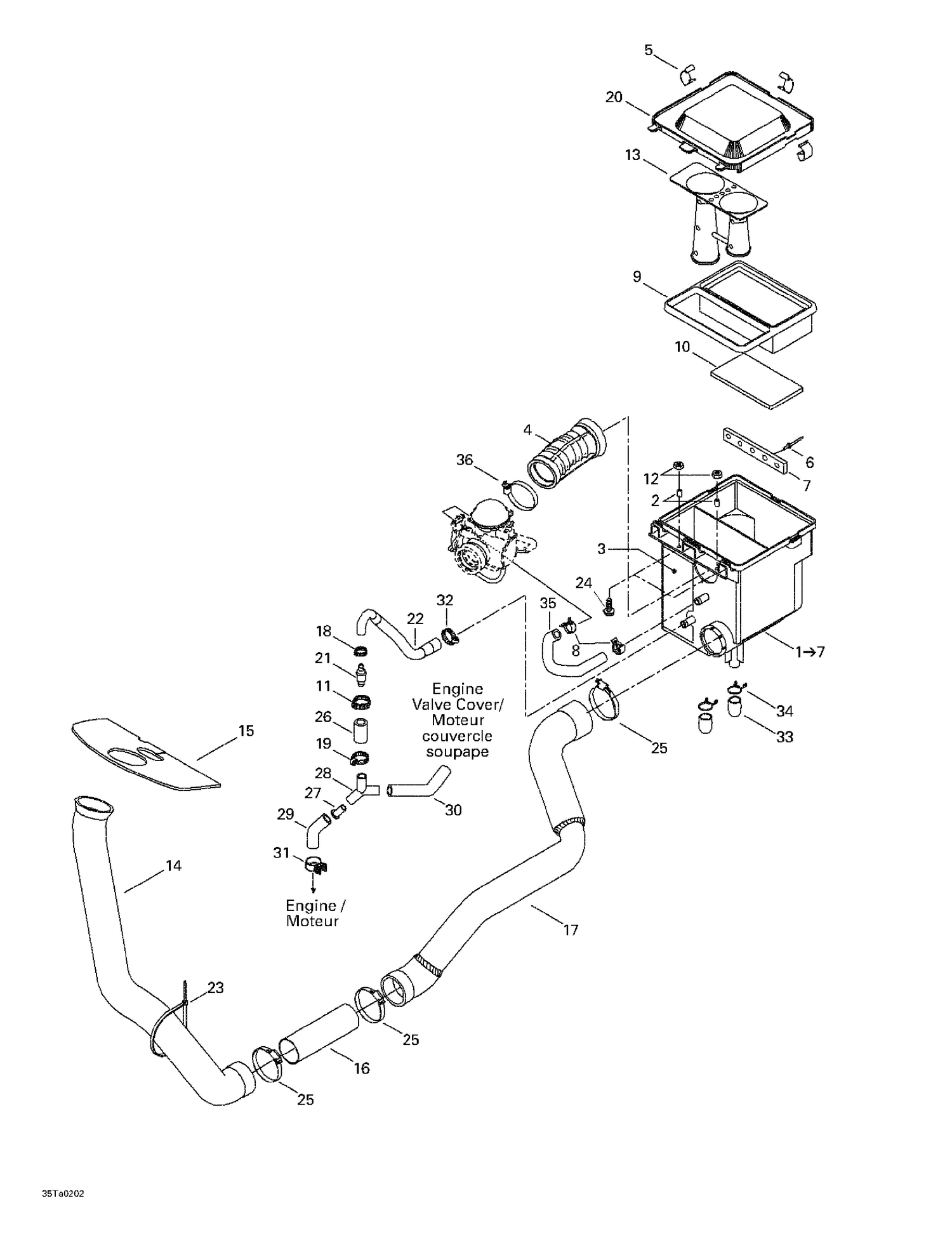

02- Air Intake Silencer
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 2 | Not | Available As Spare Part - Support Bushing |
| 3 | 707800014 | Heat Protector |
| 4 | 707800051 | Intake Adaptor |
| 5 | 707800013 | Cover Bracket |
| 6 | 293150030 | Pop Rivet 3/16 |
| 7 | Not | Available As Spare Part - Reinforcement |
| 8 | 293650110 | Norma Clamp |
| 9 | 707800002 | AIR FILTER - Call your local BRP dealership |
| 10 | 707800015 | Foam |
| 11 | 293650099 | Crimp Clamp |
| 12 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 13 | 707800012 | Air Intake Tube |
| 14 | 707800009 | Front Air Intake Tube |
| 15 | 707800020 | Deflector |
| 16 | 707800011 | Sleeve |
| 17 | 707800034 | Rear Air Intake Tube |
| 18 | 293650012 | Oetiker Clamp |
| 19 | 293650051 | Tridon Gear Clamp |
| 20 | 707800017 | Muffler cover |
| 21 | 707800027 | PCV Valve |
| 22 | 707800045 | Vent Hose |
| 23 | 293750008 | Tie Wrap 368 mm |
| 24 | 207662044 | Hex. Flange Screw M6 X 20 |
| 25 | 293650023 | Tridon Clamp |
| 26 | 707800039 | Vent Hose |
| 27 | 711222590 | Fitting |
| 28 | 711874380 | Y Fitting |
| 29 | 711222600 | Formed Hose |
| 30 | 711222610 | Formed Hose |
| 31 | 711251222 | Gear Clamp |
| 32 | 293650172 | Tridon Gear Clamp This part replaces 293650037. |
| 33 | 707800006 | Drain Tube |
| 34 | 707800005 | Clip Retainer |
| 35 | 707800052 | Vent Hose |
