Home / BRP / STERN DRIVE / 1998 / 5 / 502BPBYC 1998 / LOWER GEARCASE -- DUAL PROP

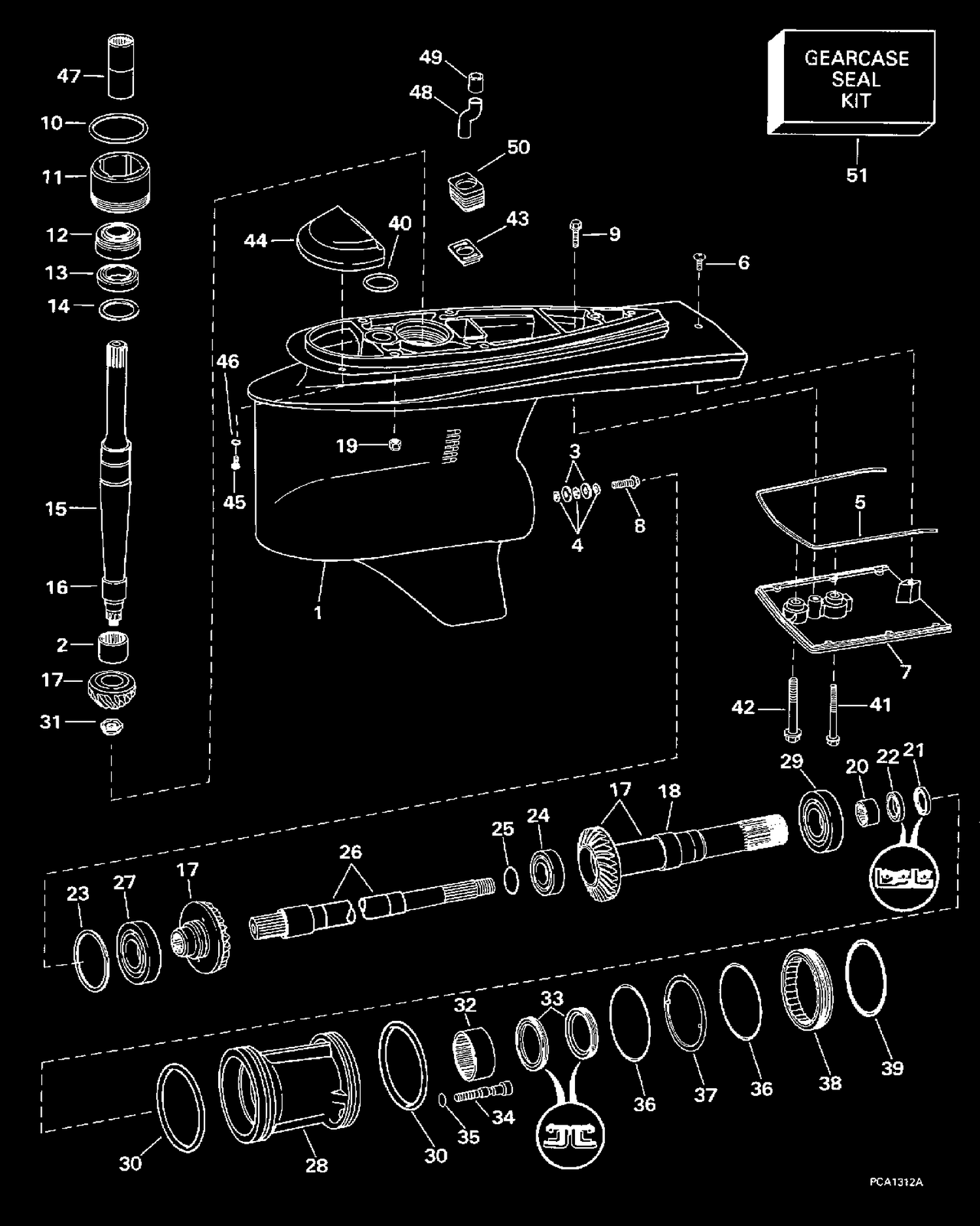

LOWER GEARCASE -- DUAL PROP

LOWER GEARCASE -- DUAL PROP

Parts (64)

RefPart NumberDescription
1 3858260 G'Case & Brg Ay This part replaces 3855514.
2 0184654 BEARING, Lower driveshaft
3 0854096 MAGNET
4 0955893 WASHER, Magnet
5 3854898 SEAL, Exhaust cover
6 3855504 SCREW, Exhaust cover, rear
7 3855544 COVER, Exhaust
8 0309905 SCEW,Cylinder head This part replaces 3855578.
9 3855819 SCREW, Exhaust cover, front
10 3852866 O-RING, Support housing
11 3855636 RETAINER, Bearing
12 3854250 BEARING, Driveshaft, upper
13 3854249 BEARING, Driveshaft, lower
14 3852889 SHIM, Pinion position, 0.003 in.
14 3852890 SHIM, Pinion position, 0.004 in.
14 3852891 SHIM, Pinion position, 0.005 in.
14 3852892 SHIM, Pinion position, 0.010 in.
15 3855492 DRIVESHAFT, Vertical
16 0184682 INNER RING
17 3851304 GEAR SET, 1.78, 17:29
17 3851309 GEAR SET, 1.95, 16:30
18 0184683 RACE, Bearing
19 3857827 Nut This part replaces 0941885.
20 0183272 BEARING, Outer propeller shaft
21 0853807 SEAL, Rear inner prop shaft
22 0853808 SEAL, Forward inner prop shaft
23 3855008 SHIM, Inner gear, 0.002 in.
23 3855009 SHIM, Inner gear, 0.004 in.
23 3855010 SHIM, Inner gear, 0.006 in.
23 3855011 SHIM, Inner gear, 0.008 in.
23 3855012 SHIM, Inner gear, 0.016 in.
23 3855071 SHIM, Inner gear, 0.003 in.
23 3855072 SHIM, Inner gear, 0.005 in.
23 3855073 SHIM, Inner gear, 0.010 in.
24 0184691 BEARING, Outer gear
25 3855796 SHIM, Outer gear, 0.002 in.
25 3855797 SHIM, Outer gear, 0.003 in.
25 3855798 SHIM, Outer gear, 0.005 in.
25 3855799 SHIM, Outer gear, 0.010 in.
26 3851205 PROPELLER SHAFT, Inner
27 3854482 BEARING, Inner propeller shaft gear
28 3851234 HOUSING, Propeller shaft
29 0184765 BEARING, Outer propeller shaft
30 3854625 O-RING, Propeller shaft hsg.
31 0852212 NUT, Pinion gear
32 0183859 BEARING, Outer propeller shaft
33 0851407 SEAL, Outer propeller shaft
34 3851329 SCREW, Drain
35 0955981 O-RING, Drain screw
36 0946438 O-RING, Propeller shaft retainer
37 3851246 RETAINER, Bearing housing
38 3851327 RING, Retaining
39 3854624 O-RING, Retaining ring
40 3852959 O-RING, Oil passage
41 3852349 SCREW, Gear housing
42 3852960 SCREW, Gear housing
43 3854601 RETAINER, Seal
44 3855411 ANODE, Gearcase
47 3852268 DRIVESHAFT, Intermediate
48 3860252 Tube This part replaces 3854795.
49 3852315 SEAL, Water supply tube
50 3854595 SEAL, Water supply tube
3855907 3855907 GEARCASE ASSY., 1.78, 17:29
3855908 3860765 G'Case Ay This part replaces 3855908.
