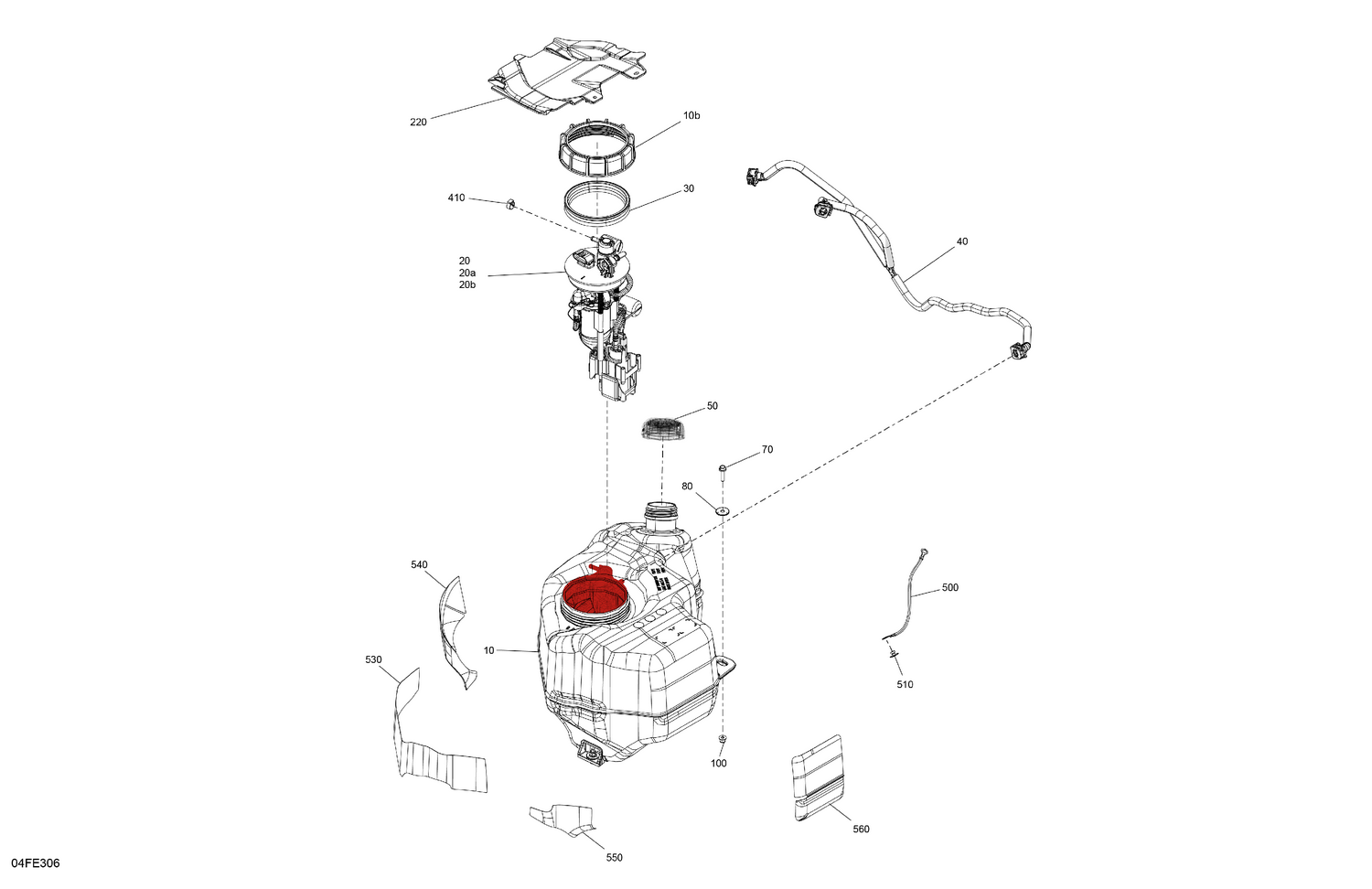

02- Engine - Fuel
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 250100062 | Special Nut M130 |
| 20a | 709001390 | Fuel Pre-Filter |
| 20b | 709001695 | Fuel Level Sensor This part replaces 709001391. |
| 30 | 293250514 | Pump Gasket |
| 40 | 709001369 | Fuel Tank Hose |
| 50 | 709000868 | Fuel Cap |
| 70 | 207662554 | Hex. Flange Screw M6 X 25 |
| 80 | 709001343 | Shouldered Bushing |
| 100 | 233261466 | Hex. Flange Elastic Nut M6 |
| 220 | 709001104 | Panel |
| 410 | 293650046 | Oetiker Clamp |
| 500 | 278003272 | Ground Wire |
| 510 | 293150291 | Black, Pop Rivet 3/16 X ,425 |
| 530 | 709001417 | Heat Shield |
| 540 | 709001418 | Heat Shield |
| 550 | 709001419 | Heat Shield |
