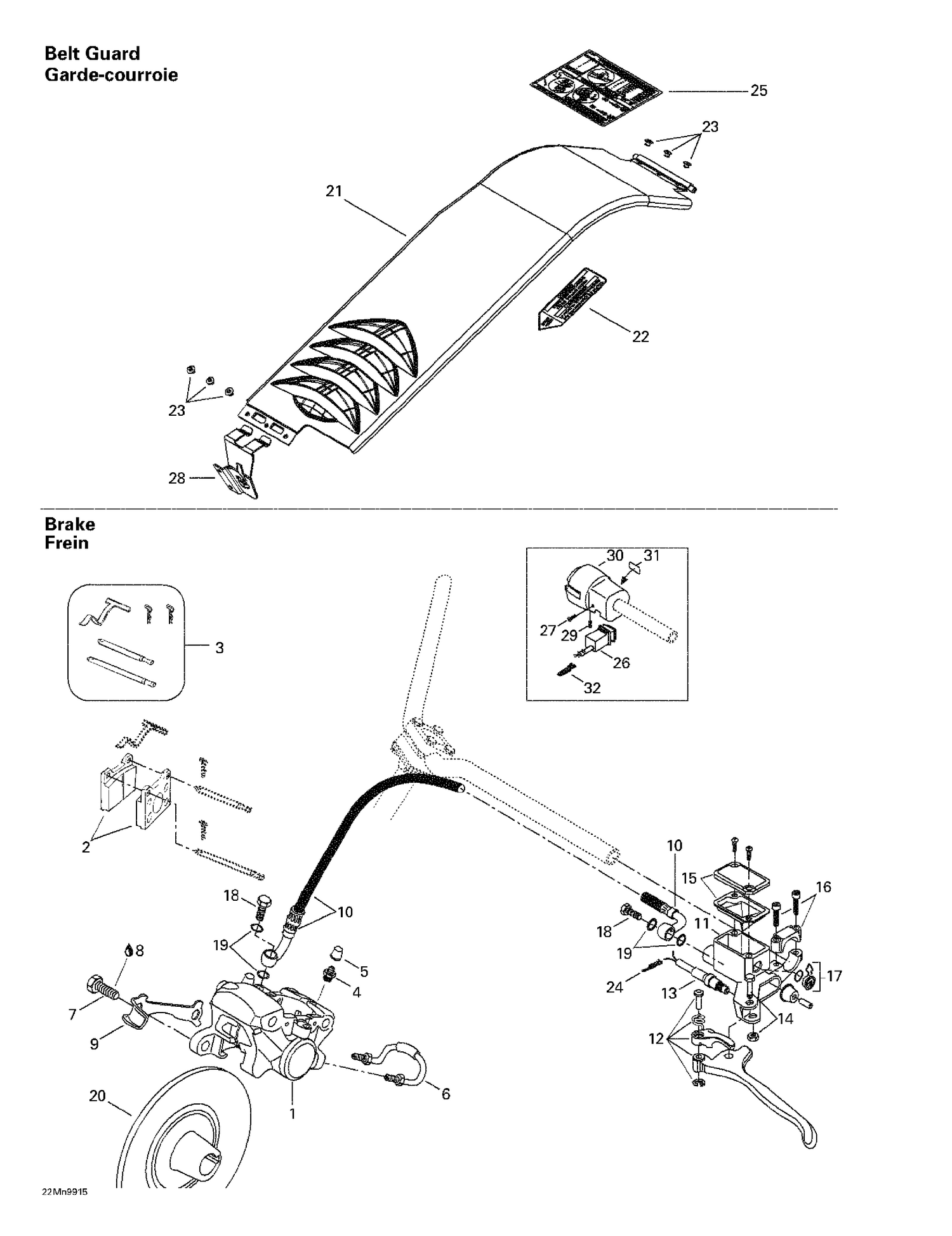

06- Hydraulic Brake And Belt Guard
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 415084600 | Brake Pad Kit This part replaces 414990000. |
| 3 | 414990700 | KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership |
| 4 | 414989800 | BLEEDER SCREW - Call your local BRP dealership |
| 5 | 414989700 | BOOT-QTS 20 - Call your local BRP dealership |
| 6 | 414989900 | RIGID TUBING - Call your local BRP dealership |
| 7 | 207103544 | Hex. Screw M10 X 35 |
| 8 | 293800060 | Loctite 243, 10 ml This part replaces 293800015. |
| 9 | 507029900 | Locking Tab |
| 10 | 507032237 | HOSE - Call your local BRP dealership |
| 12 | 507032428 | LEVER - Call your local BRP dealership This part replaces 415075300. |
| 13 | 415127696 | Microswitch Ass'y |
| 14 | 415030000 | Pin Ass'y |
| 15 | 415029900 | Cap |
| 16 | 507032477 | Clamp And Screw Kit This part replaces 415029800. |
| 17 | 414990600 | WINDOW - Call your local BRP dealership |
| 18 | 414920500 | Banjo Bolt |
| 19 | 414920600 | Washer |
| 20 | 507031300 | BRAKE DISK - Call your local BRP dealership |
| 22 | 516002670 | WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership This part replaces 516000132. |
| 23 | 390402200 | Pop Rivet 3/16" |
| 24 | 515175232 | Male Terminal |
| 25 | 516000252 | Adjustment Decal |
| 26 | 515175393 | Switch |
| 27 | 414473200 | Screw |
| 28 | 417300001 | Bracket |
| 29 | 414440800 | Socket Set Screw M8 X 10 |
| 30 | 515175307 | Brake Housing |
| 31 | 415025500 | Switch Decal |
