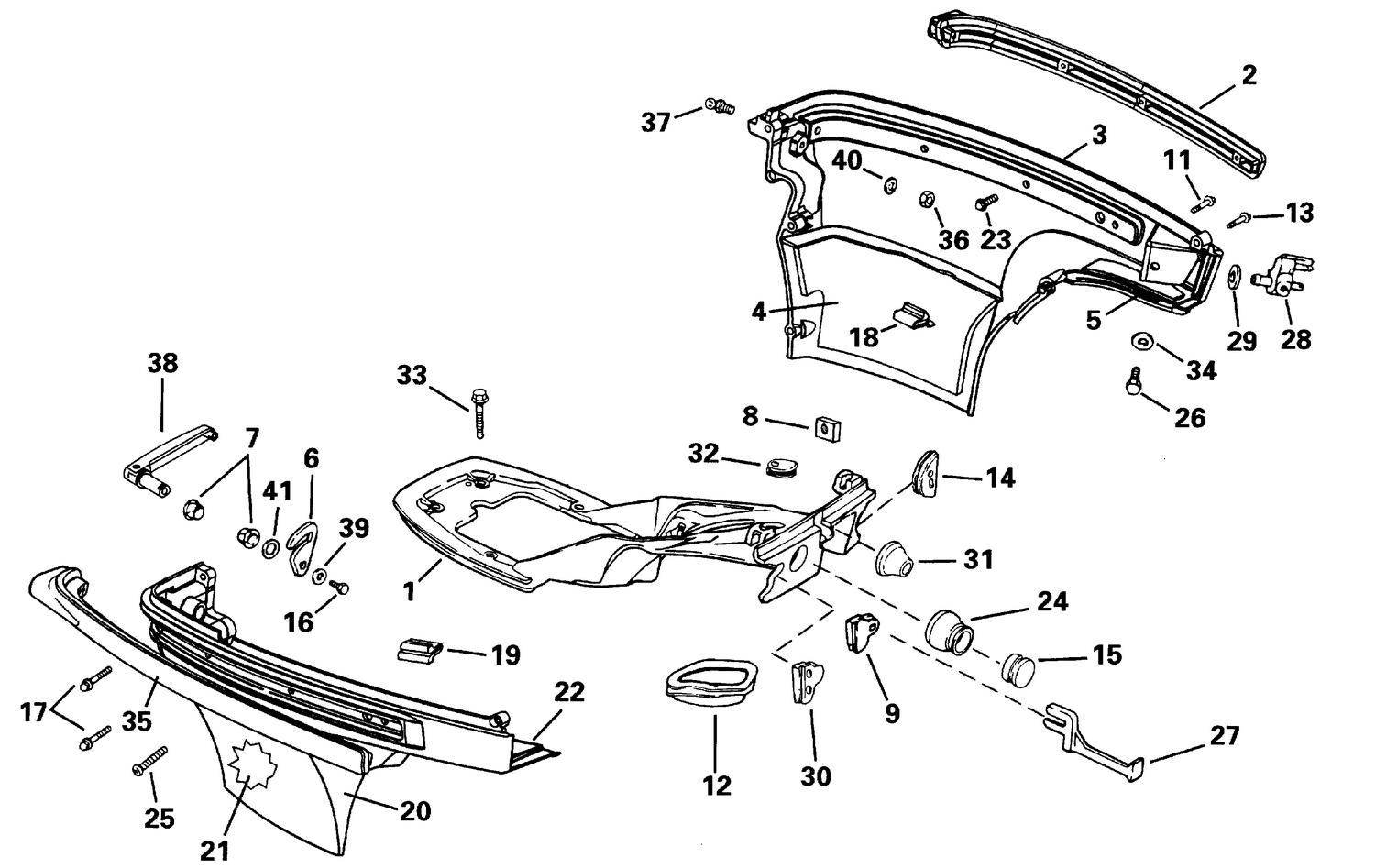

| Ref | Part Number | Description |
|---|
| 1 |
0343745 |
BRACKET, Panel |
| 2 |
0342292 |
BUMPER, Cover, port |
| 3 |
0438024 |
ENGINE COVER, Lower, port |
| 6 |
0335570 |
HOOK, Front & rear |
| 11 |
0340071 |
SCREW, Cover to bracket |
| 12 |
0338242 |
GROMMET, Shift rod, bottom |
| 13 |
0340071 |
SCREW, Cover to bracket |
| 16 |
0335200 |
VIS, capteur position de vilebrequin vers support |
| 17 |
0340071 |
SCREW, Cover to bracket |
| 18 |
0338202 |
SEAL, Cover to bracket, port |
| 19 |
0338286 |
SEAL, Cover to bracket, starboard |
| 20 |
0438025 |
ENGINE COVER, Lower, starboard |
| 23 |
0512731 |
SCREW, Bumper |
| 25 |
0343562 |
SCREW, Cover, rear, lower |
| 35 |
0342136 |
BUMPER, Cover, stbd. |
| 38 |
0437780 |
HANDLE & SHAFT ASSY. |
