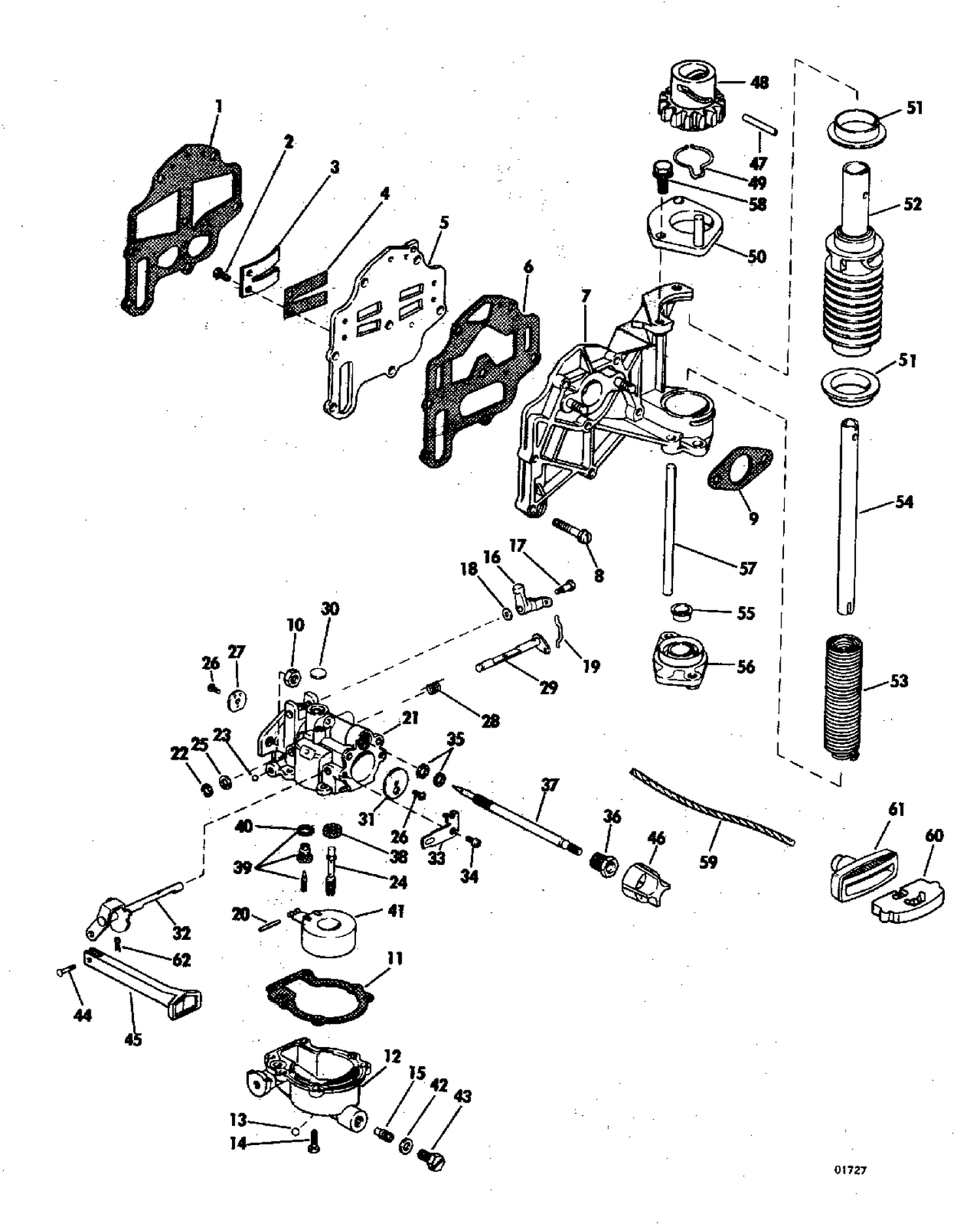

| Ref | Part Number | Description |
|---|
| 1 |
0304114 |
GASKET, Plate to c'case |
| 2 |
0303761 |
SCREW |
| 3 |
0202668 |
STOP, Leaf |
| 4 |
0202667 |
LEAF |
| 5 |
0307216 |
PLATE, Leaf |
| 6 |
0320982 |
GASKET, Manifold This part replaces 0304116. |
| 7 |
0388449 |
MANIFOLD, Intake This part replaces 0383027. |
| 8 |
0305346 |
SCREW |
| 9 |
0303437 |
GASKET |
| 10 |
0306397 |
NUT |
| 12 |
0379687 |
FLOAT CHAMBER |
| 14 |
0307045 |
NOZZLE, High speed |
| 15 |
0315140 |
ORIFICE PLUG |
| 16 |
0312832 |
CAM FOLLOWER |
| 19 |
0330192 |
LINK, Cam follower This part replaces 0312830. |
| 20 |
0300096 |
HINGE PIN |
| 21 |
0383662 |
BODY ASSY |
| 22 |
0203949 |
E RING LINK This part replaces 0202755. |
| 24 |
0315139 |
NOZZLE, High speed |
| 27 |
0311756 |
THROTTLE VALVE |
| 31 |
0313588 |
VALVE, Choke |
| 32 |
0380225 |
CHOKE SHAFT AND LEVER |
| 33 |
0311348 |
SPRING, Choke |
| 34 |
0306373 |
COTTER PIN, Reverse lock |
| 37 |
0313240 |
NEEDLE, Slow speed |
| 38 |
0302984 |
GASKET |
| 43 |
0307832 |
PLUG, Screw |
| 44 |
0382778 |
PIN, Solenoid This part replaces 0303738. |
| 45 |
0205500 |
KNOB, Choke |
| 46 |
0205231 |
KNOB, Control shaft This part replaces 0205483. |
| 47 |
0309686 |
ROLL PIN |
| 48 |
0318447 |
PINION This part replaces 0311189. |
| 49 |
0309736 |
SPRING |
| 50 |
0311277 |
BEARING HEAD |
| 51 |
0311256 |
BUSHING |
| 52 |
0387509 |
SPOOL This part replaces 0311222. |
| 53 |
0314500 |
MAIN SPRING |
| 54 |
0311257 |
RETAINER, Spring |
| 55 |
0311259 |
BUSHING |
| 56 |
0314501 |
PLATE, Spring retainer |
| 57 |
0311284 |
GUIDE, Rope |
| 58 |
0311762 |
SCREW, Hex head |
| 60 |
0389713 |
ANCHOR, Rope to handle This part replaces 0304323. |
| 61 |
0205971 |
HANDLE |
| 0377928 |
0377928 |
LEAF PLATE ASSEMBLY |
| 0383031 |
0383031 |
REWIND STARTER ASSY |
| 0383661 |
0383661 |
CARBURETOR ASSEMBLY COMPLETE |
