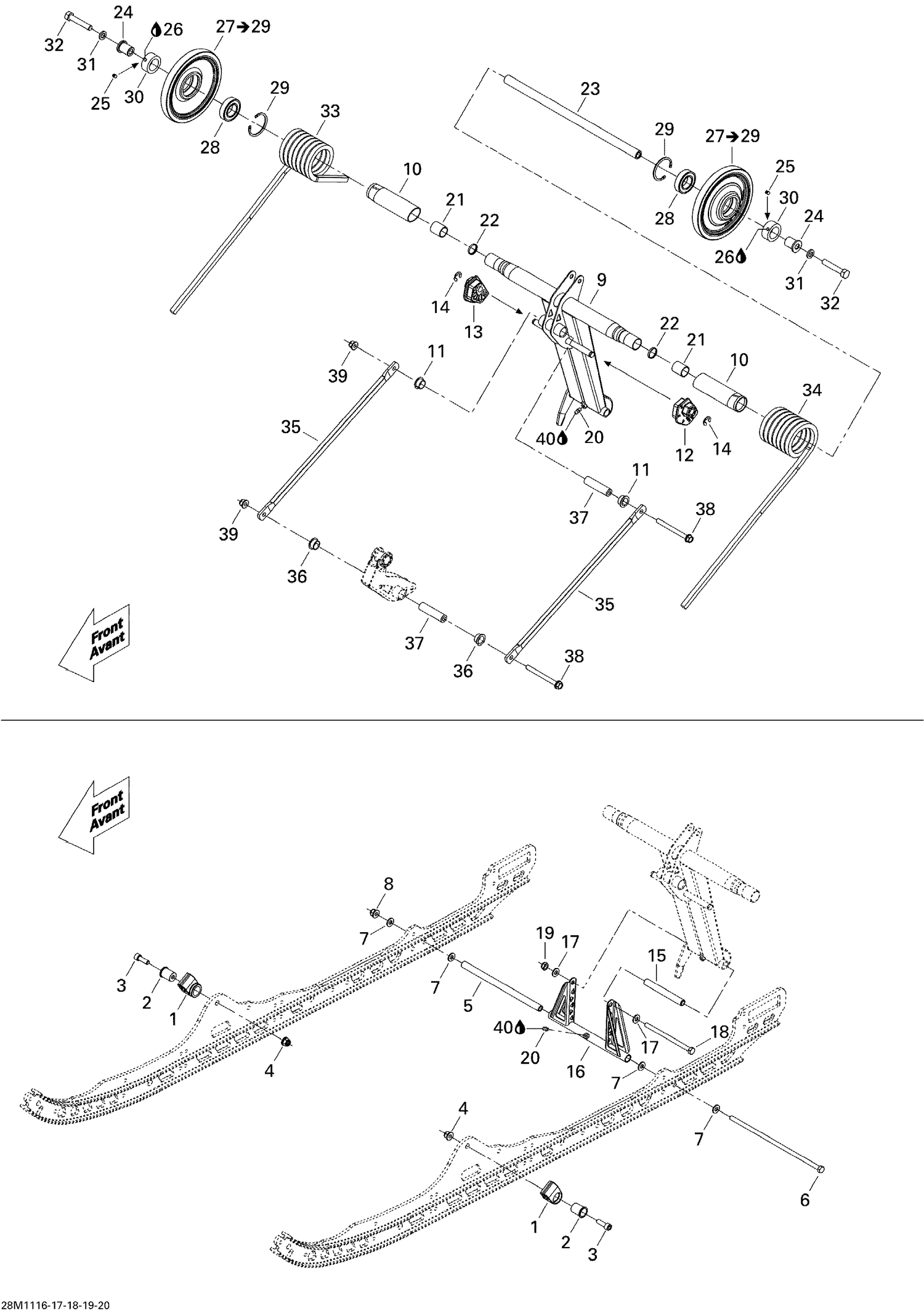

08- Rear Arm
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 861805547 | Spring Support Kit This part replaces 503191183. |
| 2 | 861805547 | Spring Support Kit This part replaces 503190754. |
| 3 | 205082544 | Socket Head Screw M8 X 25 |
| 4 | 250100131 | Elastic Flange Nut M8 |
| 5 | 503189156 | Pivot Arm Axle |
| 6 | 503192440 | Bolt M8 X 248mm |
| 7 | 503192494 | Washer |
| 8 | 250100131 | Elastic Flange Nut M8 |
| 9 | 503191762 | Rear Arm |
| 10 | 572080700 | Bushing |
| 11 | 503191555 | Swivel Bushing |
| 12 | 503191565 | LH Cam Adjuster |
| 13 | 503191566 | RH Cam Adjuster |
| 14 | 293370013 | E-Circlip |
| 15 | 503144300 | Upper Axle, Pivot Arm |
| 16 | 503191209 | Pivot Arm |
| 17 | 503189157 | Washer |
| 18 | 732601197 | Bolt M8, Short |
| 19 | 232581414 | Hex. Elastic Stop Nut M8 |
| 20 | 408200700 | Grease Fitting |
| 21 | 503191556 | Extended Bushing |
| 22 | 503191651 | Washer |
| 23 | 503191215 | Upper Shaft |
| 24 | 503191262 | Bushing |
| 25 | 206260844 | Socket Set Screw M6 X 8 |
| 26 | 293800060 | Loctite 243, 10 ml |
| 28 | 503193548 | Ball Bearing This part replaces 503191982. |
| 29 | 415129371 | Retaining Ring |
| 30 | 503168800 | Retaining Ring |
| 31 | 503192496 | Washer |
| 32 | 250000469 | HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership |
| 33 | 503192080 | RH Spring |
| 34 | 503192081 | LH Spring |
| 35 | 503191148 | ROD_LINK - Call your local BRP dealership |
| 36 | 503191555 | Swivel Bushing |
| 37 | 503190643 | Axle Bar (Long) |
| 38 | 207688544 | Hex. Flange Screw |
| 39 | 233281414 | Hex. Flange Elastic Nut M8 |
