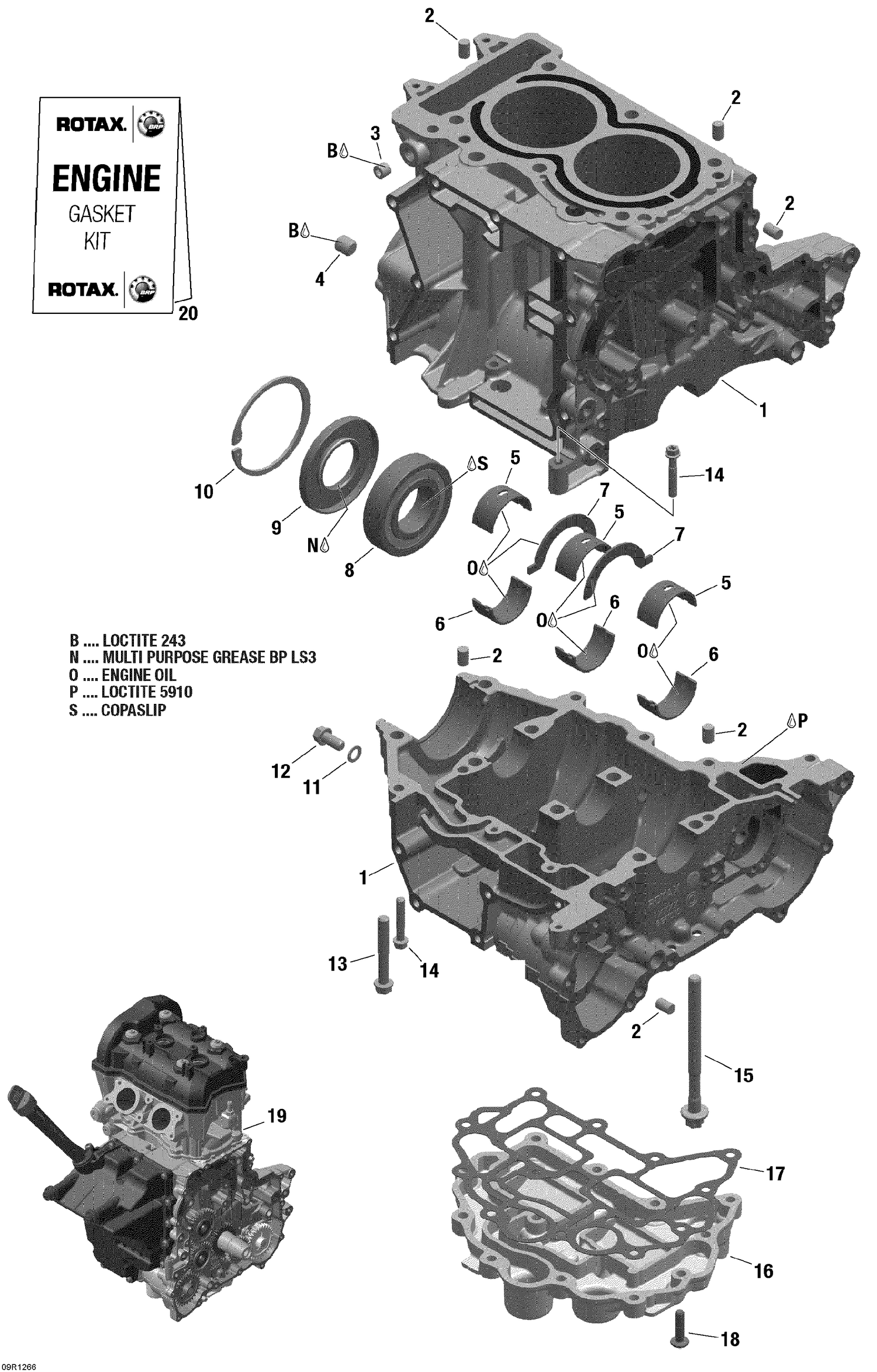

01- Engine Block
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10 ml |
| N | Not | Available As Spare Part - MULTIPURPOSE GREASE BP LS3 |
| O | 293600112 | Synthetic Oil 4T 12X1 L. |
| P | 293800081 | Loctite 5910, 300 ml |
| 2 | 420632010 | Center Pin 8 X 12 |
| 5 | 420933180 | Plain Bearing Half 36X40X19 |
| 6 | 420933185 | Plain Bearing Half 36X40X19 |
| 7 | 420933140 | Ring Half 40,5X60X1,95 |
| 8 | 420832232 | Ball Bearing |
| 10 | 420845790 | Retaining Ring 72x2,5 DIN 472 |
| 16 | 420911124 | Oil Sump This part replaces 420911120. |
| 19 | 300060201 | Engine 602 ACE |
| 20 | 420686024 | Gasket Set Engine 602 This part replaces 420686020. |
