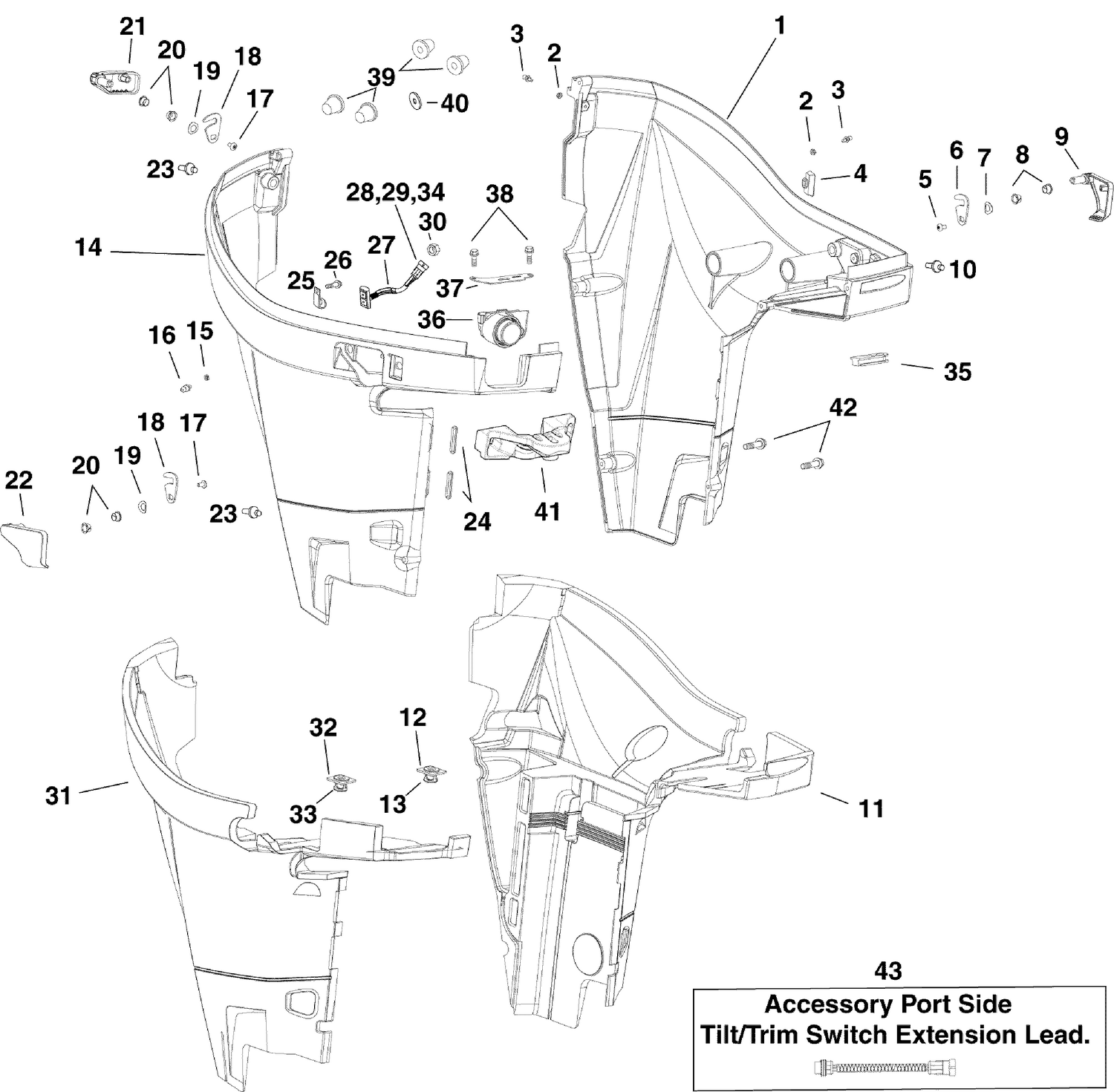

LOWER ENGINE COVER
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5005205 | LOWER COVER Assy, "White" |
| 14 | 5005206 | LOWER COVER Assy, "White" |
| 14 | 5006432 | LOWER COVER Assy, "BLUE" |
| 36 | 0351277 | GROMMET, Fuel & electric |
| 37 | 0351463 | BRACKET, Grommet to lower cover |
| 39 | 0349557 | MOUNT |
| 40 | 0349556 | Washer |
| 41 | 0351073 | GROMMET, Steering arm |
| 42 | 0325115 | SCREW, Oil tank/EMM mount |
