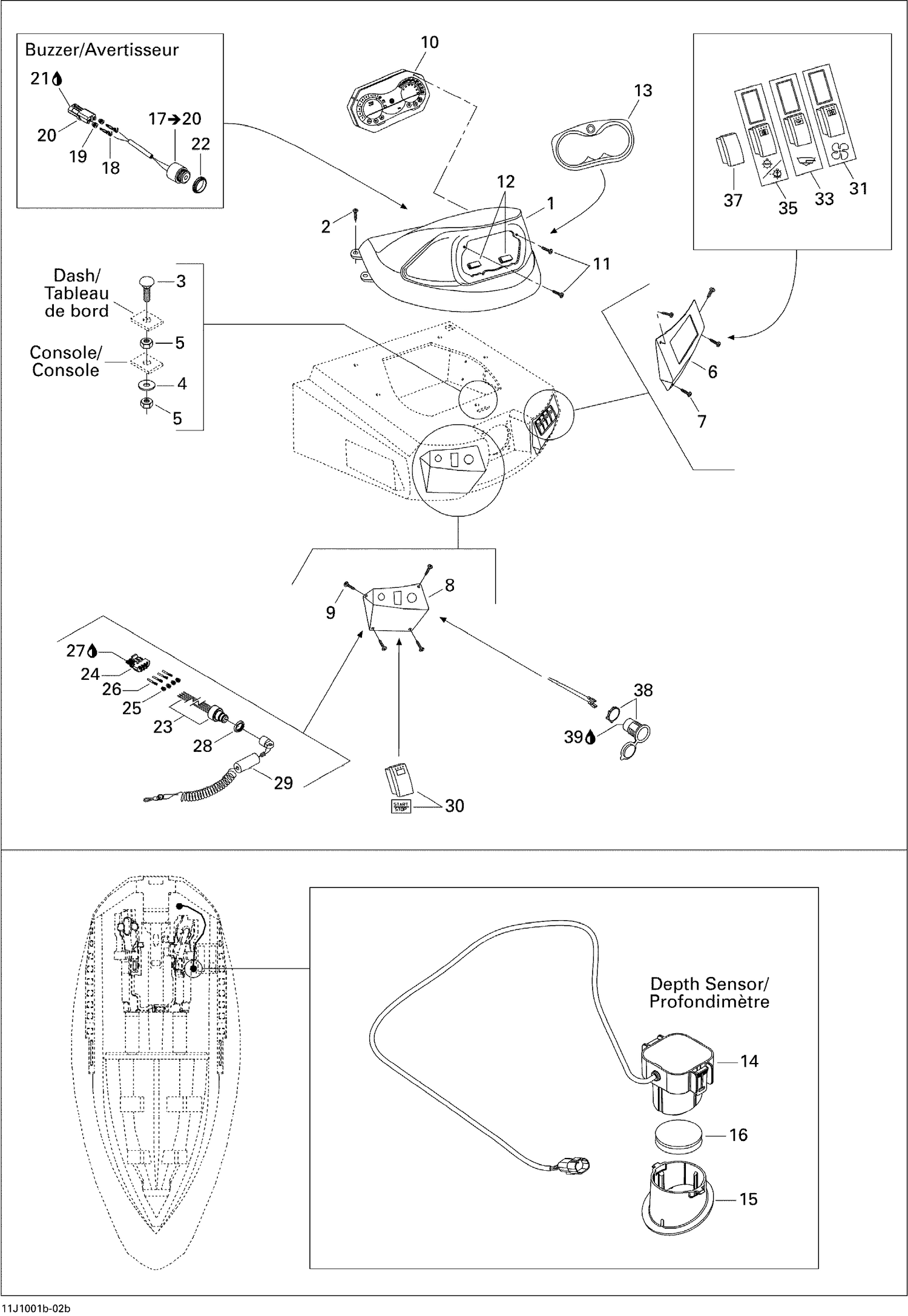

| Ref | Part Number | Description |
|---|
| 1 |
204471300 |
DASH - Call your local BRP dealership |
| 2 |
204100058 |
Phillips Tapping Screw |
| 3 |
204000130 |
Elevator Bolt |
| 4 |
204100089 |
FLAT WASHER 9/32? - Call your local BRP dealership |
| 5 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 6 |
204471302 |
RH SWITCH PANEL - Call your local BRP dealership |
| 7 |
250000092 |
Phillips Tapping Screw 3.5 X 19 |
| 8 |
204471301 |
LH SWITCH PANEL - Call your local BRP dealership |
| 9 |
250000092 |
Phillips Tapping Screw 3.5 X 19 |
| 10 |
204471378 |
Cluster Gauge |
| 11 |
241141660 |
Hex. Flange Screw K40 X 16 |
| 12 |
293830113 |
TRIM - Call your local BRP dealership |
| 13 |
278002144 |
Gauge Bezel, Chrome |
| 14 |
278001995 |
DEPTH SENSOR - Call your local BRP dealership |
| 15 |
278001994 |
Depth Sensor Base |
| 16 |
293550042 |
Gel Pad |
| 18 |
278000222 |
Male Terminal |
| 19 |
278000218 |
Wire Seal |
| 20 |
278000217 |
Female Housing, 2 Circuits |
| 21 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 22 |
278000707 |
Buzzer Nut |
| 23 |
278002351 |
Safety Switch This part replaces 278002295. |
| 24 |
278000395 |
Male Housing, 4 Circuits |
| 25 |
278000218 |
Wire Seal |
| 26 |
278000223 |
Female Terminal |
| 27 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 28 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 29 |
204471206 |
Safety Lanyard |
| 30 |
204471178 |
START/STOP SWITCH - Call your local BRP dealership |
| 31 |
204470011 |
VENTILATION SWITCH ASS'Y - Call your local BRP dealership |
| 33 |
204470099 |
BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership |
| 35 |
204470100 |
LIGHT SWITCH ASS'Y - Call your local BRP dealership |
| 37 |
204470596 |
SWITCH PLUG - Call your local BRP dealership |
| 38 |
710001248 |
DC Outlet |
