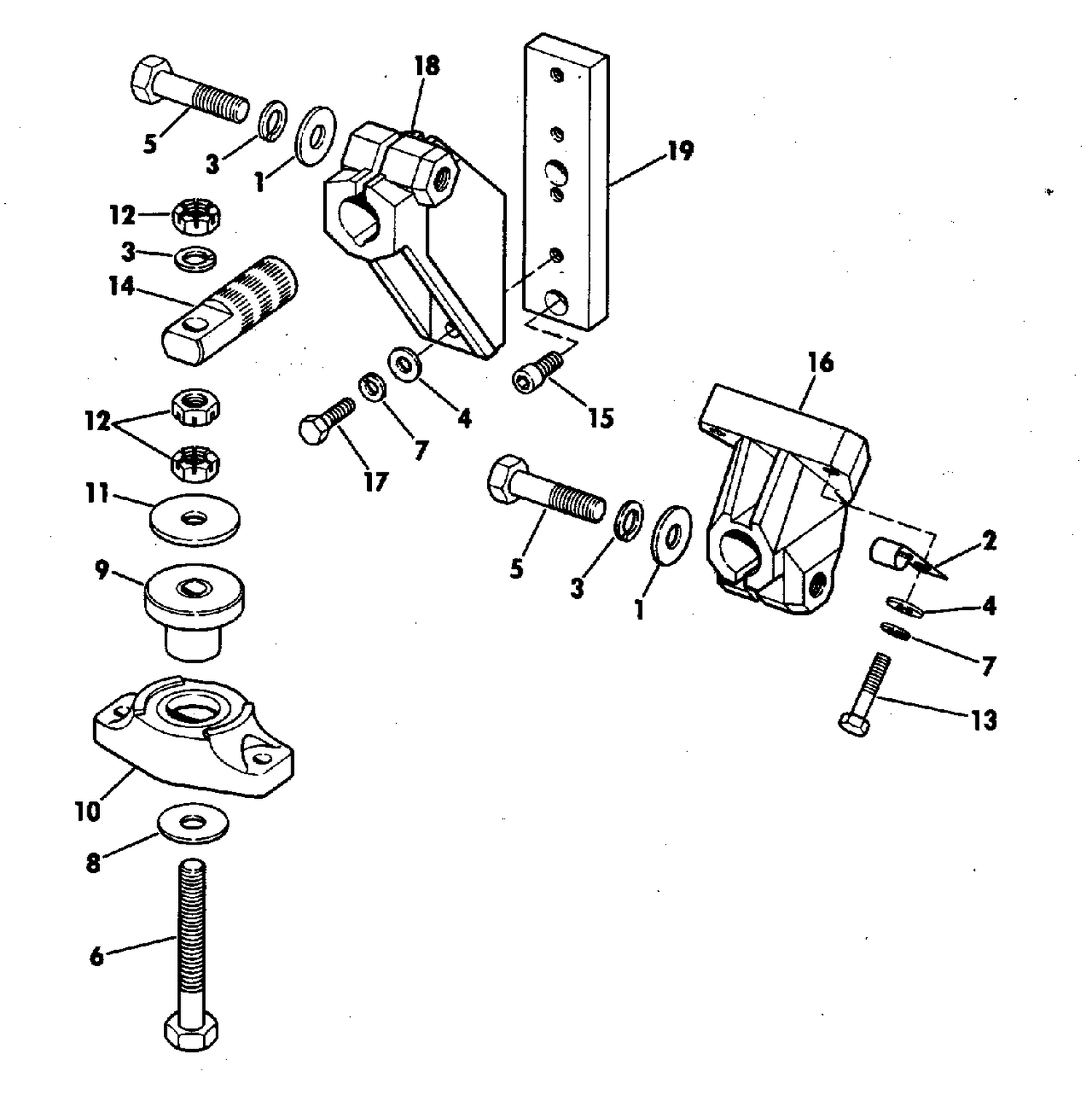

| Ref | Part Number | Description |
|---|
| 1 |
0908197 |
WASHER |
| 3 |
3852090 |
LOCK WASHER This part replaces 0310856. |
| 5 |
0316915 |
SCREW, Mount brackets, front & rear |
| 6 |
0909352 |
BOLT |
| 7 |
0120177 |
L'WASHER, Alternator to brkt |
| 8 |
0909573 |
WASHER, Lower |
| 9 |
0981356 |
RUBBER MOUNT ASSY |
| 10 |
0909351 |
FOOT |
| 11 |
3852428 |
WASHER, Lower This part replaces 0907857. |
| 12 |
0909353 |
LOCKNUT |
| 13 |
0908543 |
SCREW, Bracket to engine, front |
| 14 |
0909354 |
PIN |
| 15 |
0909453 |
SCREW, Plate to transmission |
| 16 |
0909356 |
BRACKET, Engine to mount support, front |
| 18 |
0909295 |
BRACKET, Engine to mount |
