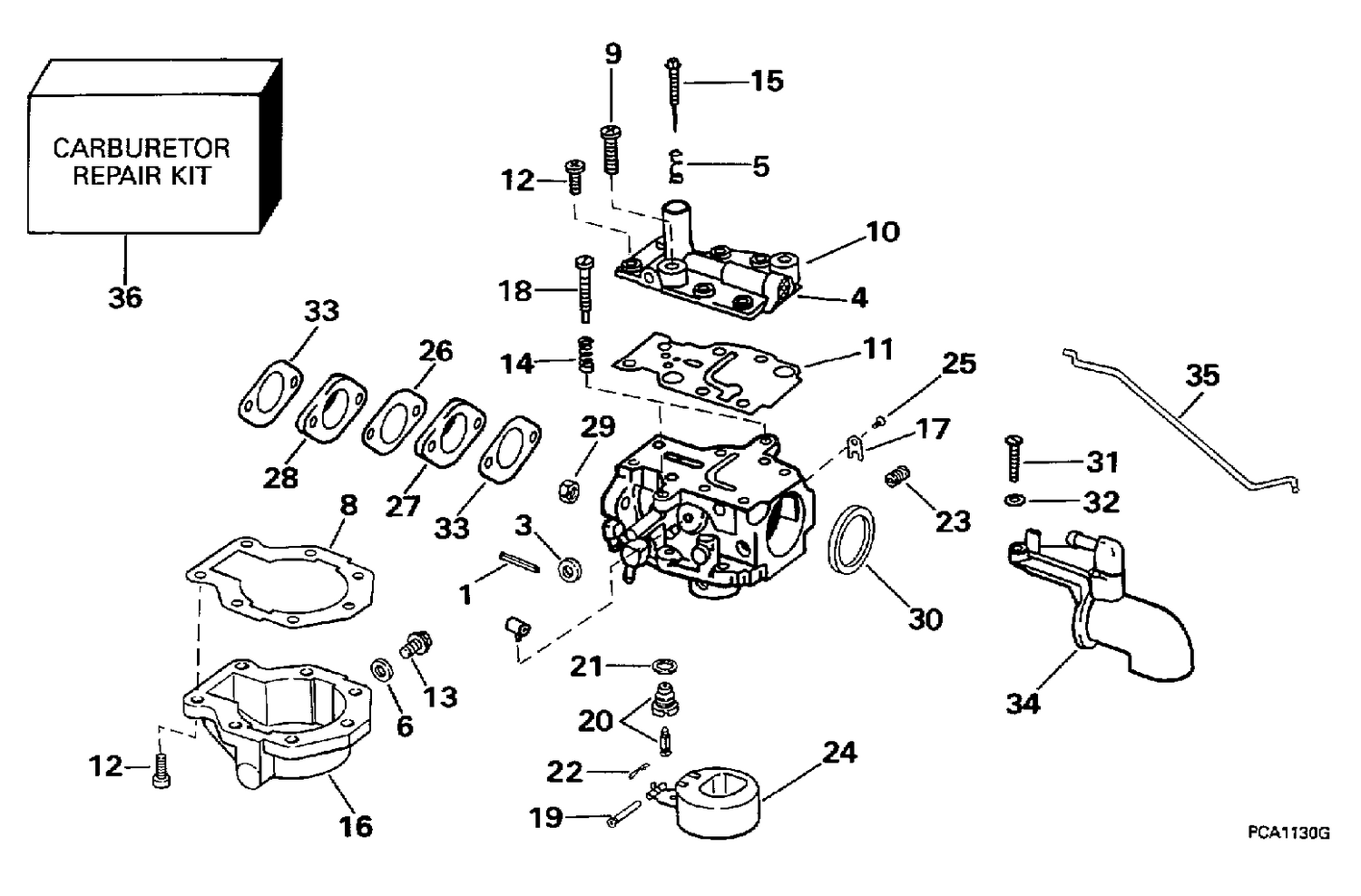

CARBURETOR
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 0437287 | COVER, Carb. body |
| 22 | 0336842 | CLIP, SPRING |
| 23 | 0328535 | HIGH SPEED ORIFICE, No. 41 |
| 26 | 0318932 | JOINT |
| 27 | 0446373 | PLATE, Carburetor |
| 29 | 0446115 | NUT, Carburetor mounting |
| 31 | 0331758 | SCREW, Air horn to carburetor |
| 33 | 0318932 | JOINT |
| 34 | 0445028 | AIR HORN |
| 35 | 0446257 | LINK, Choke |
| 0436915 | 0436915 | CARBURETOR ASSY. |
| 0437216 | 5004499 | Carburetor Ay This part replaces 0437216. |
| 0445021 | 5004509 | Carburetor Ay This part replaces 0445021. |
