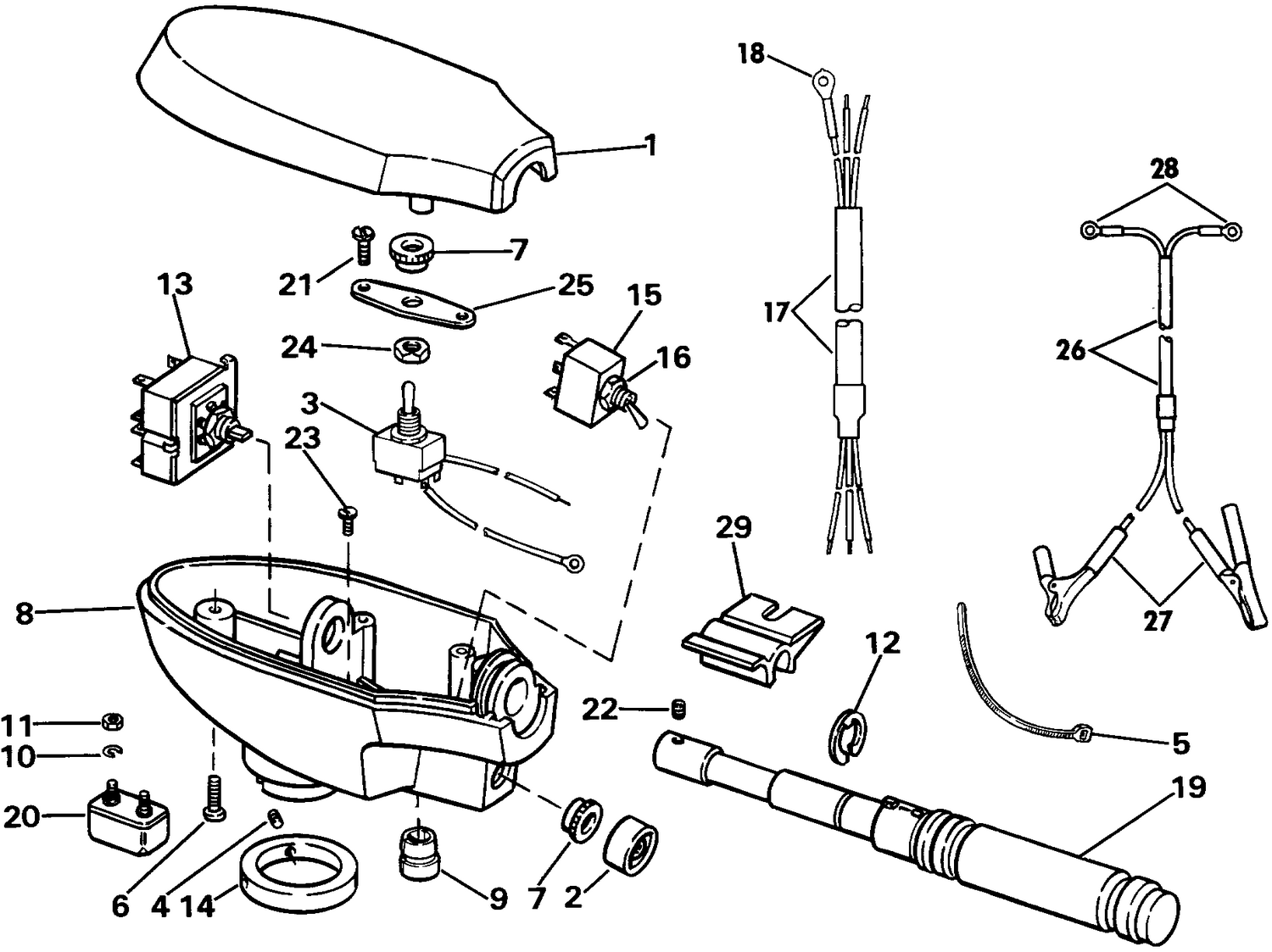

| Ref | Part Number | Description |
|---|
| 1 |
0328962 |
COVER ASSEMBLY |
| 3 |
0582609 |
REVERSE SWITCH & LEAD ASSY |
| 4 |
0328971 |
SET SCREW, Retaining ring |
| 8 |
0328963 |
STEERING HOUSING |
| 8 |
0328964 |
STEERING HOUSING |
| 9 |
0326874 |
BUSHING, Strain relief |
| 12 |
0328970 |
RETAINING RING, Control shaft |
| 13 |
0393711 |
ROTARY SWITCH ASSY. |
| 14 |
0328961 |
RETAINING RING, Motor tube |
| 15 |
0582605 |
SPEED SELECTOR SWITCH |
| 17 |
0393979 |
BATTERY CABLE, 24v bow mount |
| 19 |
0393712 |
CONTROL SHAFT & GRIP |
| 19 |
0393713 |
CONTROL SHAFT & GRIP |
| 20 |
0512218 |
CIRCUIT BREAKER |
| 22 |
0321223 |
SET SCREW |
| 22 |
0329214 |
SET SCREW, Handle to switch |
| 23 |
0329182 |
VIS, borne |
| 25 |
0512358 |
BRACKET SWITCH |
| 26 |
0393710 |
BATTERY CABLE, 12v tran. mount |
| 27 |
0390926 |
BATTERY CLAMP SET |
| 28 |
0512549 |
RING TERMINAL, NO. 10, 12 V |
| 29 |
0328965 |
LEVER, Handle to switch |
| 0210008 |
0210008 |
OWNER'S MANUAL, Evinrude |
| 0394321 |
0394321 |
OWNER'S MANUAL, Johnson |
| 0394955 |
0394955 |
DECAL SET, Johnson |
