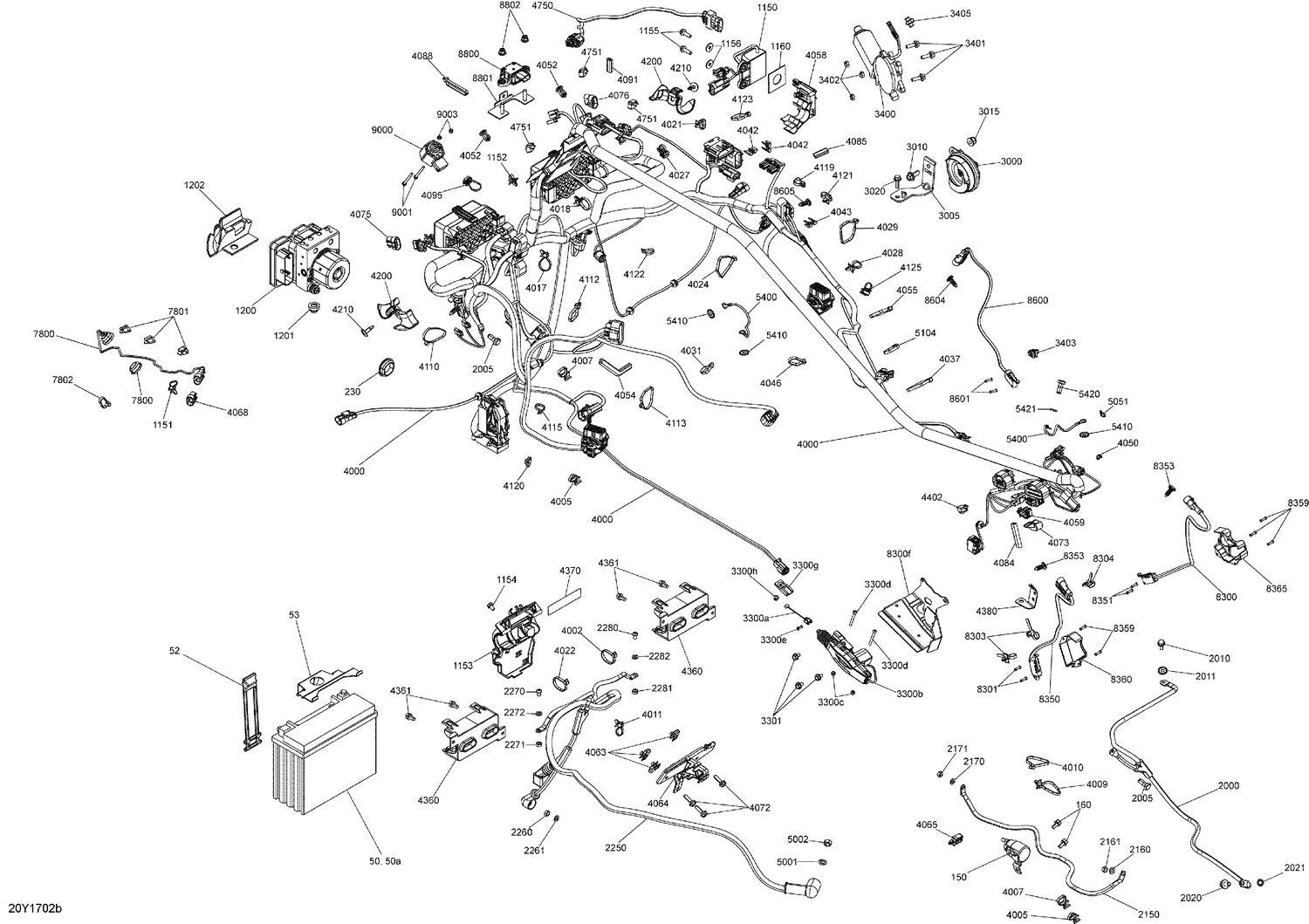

10- Electrical System - General
Parts (128)
| Ref | Part Number | Description |
|---|---|---|
| 50a | 250000282 | Battery Bolt Kit |
| 52 | 520000528 | Latch |
| 53 | 710002893 | Battery Holder |
| 150 | 710007777 | Starter Relay This part replaces 710001364. |
| 160 | 210261250 | Hex. Flange Screw M6 X 12 |
| 230 | 710002858 | Rubber Plug |
| 1150 | 710004916 | Dess Module |
| 1151 | 293750009 | Tie-Rap 173 mm |
| 1152 | 293750009 | Tie-Rap 173 mm |
| 1153 | 710004308 | Wire Support |
| 1154 | 210261050 | Hex. Forming Screw M6 X 10 |
| 1155 | 210262050 | Hexagonal Head Screw |
| 1156 | 234062410 | Flat Washer 6 mm |
| 1160 | 293830091 | Rubber Bumper |
| 1200 | 219800375 | VCM Module |
| 1201 | 710003279 | Shock Damper |
| 1202 | 710003996 | VCM Harness Protector |
| 2000 | 710004733 | Cable Neg |
| 2010 | 207661644 | Hex. Flange Screw M6 X 16 |
| 2011 | 250200041 | Lock Washer Serrated M6 |
| 2020 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip |
| 2021 | 234481608 | Serrated Lock Washer 8 mm |
| 2150 | 710004737 | START CABLE - Call your local BRP dealership |
| 2160 | 234061600 | Stainless Flat Washer M6 |
| 2161 | 232561414 | Elastic Stop Nut M6 |
| 2170 | 234161601 | Lock Washer Helical M6 |
| 2171 | 232061600 | Hex. Nut M6 |
| 2250 | 710004736 | POSITIVE CABLE - Call your local BRP dealership |
| 2260 | 232061600 | Hex. Nut M6 |
| 2261 | 234161601 | Lock Washer Helical M6 |
| 2270 | 205961060 | Socket Head Screw M6 X 10, Scotch Grip |
| 2271 | 232061600 | Hex. Nut M6 |
| 2272 | 234161601 | Lock Washer Helical M6 |
| 2280 | 205961060 | Socket Head Screw M6 X 10, Scotch Grip |
| 2281 | 232061600 | Hex. Nut M6 |
| 2282 | 234161601 | Lock Washer Helical M6 |
| 3000 | 710004229 | HORN - Call your local BRP dealership |
| 3005 | 710005769 | Horn Support This part replaces 710005212. |
| 3010 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip |
| 3300a | 710002889 | Reverse Cable |
| 3300b | 710011269 | Actuator |
| 3300c | 232541414 | Elastic Stop Nut M4 |
| 3300d | 205444086 | Socket Head Screw M4 X 40 |
| 3300e | 390403000 | Pop Rivet 5/32 |
| 3300f | 710005642 | Reverse Actuator Support This part replaces 710002523. |
| 3300g | 270000141 | Clip |
| 3300h | 390402400 | Pop Rivet 3/16" |
| 3301 | 210261050 | Hex. Forming Screw M6 X 10 |
| 3400 | 710007256 | Actuator Motor This part replaces 278003071. |
| 3401 | 207662054 | Hex. Flange Screw M6 X 20 |
| 3402 | 232561434 | Elastic Stop Nut M6 |
| 3403 | 710002896 | Tie-Rap Clip |
| 3405 | 293750009 | Tie-Rap 173 mm |
| 4002 | 414115200 | Tie-Rap 180 mm |
| 4005 | 293750009 | Tie-Rap 173 mm |
| 4007 | 293750009 | Tie-Rap 173 mm |
| 4011 | 293750009 | Tie-Rap 173 mm |
| 4017 | 515175220 | Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 4018 | 515175220 | Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 4021 | 293750009 | Tie-Rap 173 mm |
| 4022 | 414115200 | Tie-Rap 180 mm |
| 4024 | 293750008 | Tie Wrap 368 mm |
| 4027 | 293750058 | Tie Rap 2 Pièces pour Bordure |
| 4028 | 293750009 | Tie-Rap 173 mm |
| 4029 | 293750008 | Tie Wrap 368 mm |
| 4031 | 414115200 | Tie-Rap 180 mm |
| 4037 | 293750008 | Tie Wrap 368 mm |
| 4042 | 710001222 | Lock |
| 4046 | 293750008 | Tie Wrap 368 mm |
| 4050 | 414115200 | Tie-Rap 180 mm |
| 4052 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 4054 | 219704354 | Trim 1000Mm Long |
| 4055 | 293750008 | Tie Wrap 368 mm |
| 4058 | 710004086 | Connector Support |
| 4063 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 4064 | 710004256 | CONNECTOR SUPPORT - Call your local BRP dealership |
| 4072 | 207662044 | Hex. Flange Screw M6 X 20 |
| 4084 | 219704354 | Trim 1000Mm Long |
| 4085 | 219704354 | Trim 1000Mm Long |
| 4088 | 414115200 | Tie-Rap 180 mm |
| 4091 | 219704354 | Trim 1000Mm Long |
| 4095 | 293750063 | Clip Tie-Rap |
| 4110 | 293750008 | Tie Wrap 368 mm |
| 4112 | 515175220 | Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 4113 | 293750008 | Tie Wrap 368 mm |
| 4115 | 293750008 | Tie Wrap 368 mm |
| 4119 | 414115200 | Tie-Rap 180 mm |
| 4120 | 293750008 | Tie Wrap 368 mm |
| 4121 | 293750009 | Tie-Rap 173 mm |
| 4122 | 414115200 | Tie-Rap 180 mm |
| 4123 | 293750008 | Tie Wrap 368 mm |
| 4125 | 293750058 | Tie Rap 2 Pièces pour Bordure |
| 4200 | 710004931 | Harness Holder |
| 4210 | 414745900 | Tuflock Phillips Plastic Screw |
| 4360 | 710004472 | Fuse Holder Support |
| 4361 | 210261250 | Hex. Flange Screw M6 X 12 |
| 4370 | 710003077 | RH/LH Fuse Box Decal |
| 4380 | 710003305 | Connectors Bracket |
| 4402 | 414227300 | Clip |
| 4750 | 710004764 | AAPTS Harness |
| 4751 | 414227300 | Clip |
| 5001 | 234181601 | Lock Washer 8 mm, Stainless |
| 5002 | 232081414 | Hex. Nut M8 |
| 5051 | 414115200 | Tie-Rap 180 mm |
| 5104 | 293750008 | Tie Wrap 368 mm |
| 5400 | 710004849 | Tank Cable |
| 5410 | 250200041 | Lock Washer Serrated M6 |
| 5420 | 207382060 | Hex. Screw M8 X 20, Scotch Grip |
| 5421 | 250200111 | Washer |
| 8300 | 710003412 | Brake Light Switch Ass'y |
| 8301 | 293150150 | Pop Rivet |
| 8303 | 293750009 | Tie-Rap 173 mm |
| 8304 | 515175220 | Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 8350 | 710001379 | Brake Pressure Switch Ass'y |
| 8351 | 293150150 | Pop Rivet |
| 8353 | 710002033 | Connector Holder |
| 8359 | 293150150 | Pop Rivet |
| 8360 | 705601402 | LPS Deflector |
| 8365 | 705601344 | Deflector |
| 8600 | 710001379 | Brake Pressure Switch Ass'y |
| 8601 | 293150150 | Pop Rivet |
| 8604 | 710002033 | Connector Holder |
| 8605 | 710002033 | Connector Holder |
| 8800 | 710002677 | Yaw Rate Sensor |
| 8801 | 710003494 | YRS Holder |
| 8802 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 9000 | 219800354 | Steering Position Sensor This part replaces 709401171. |
| 9001 | 207144044 | Hex. Cap Screw |
