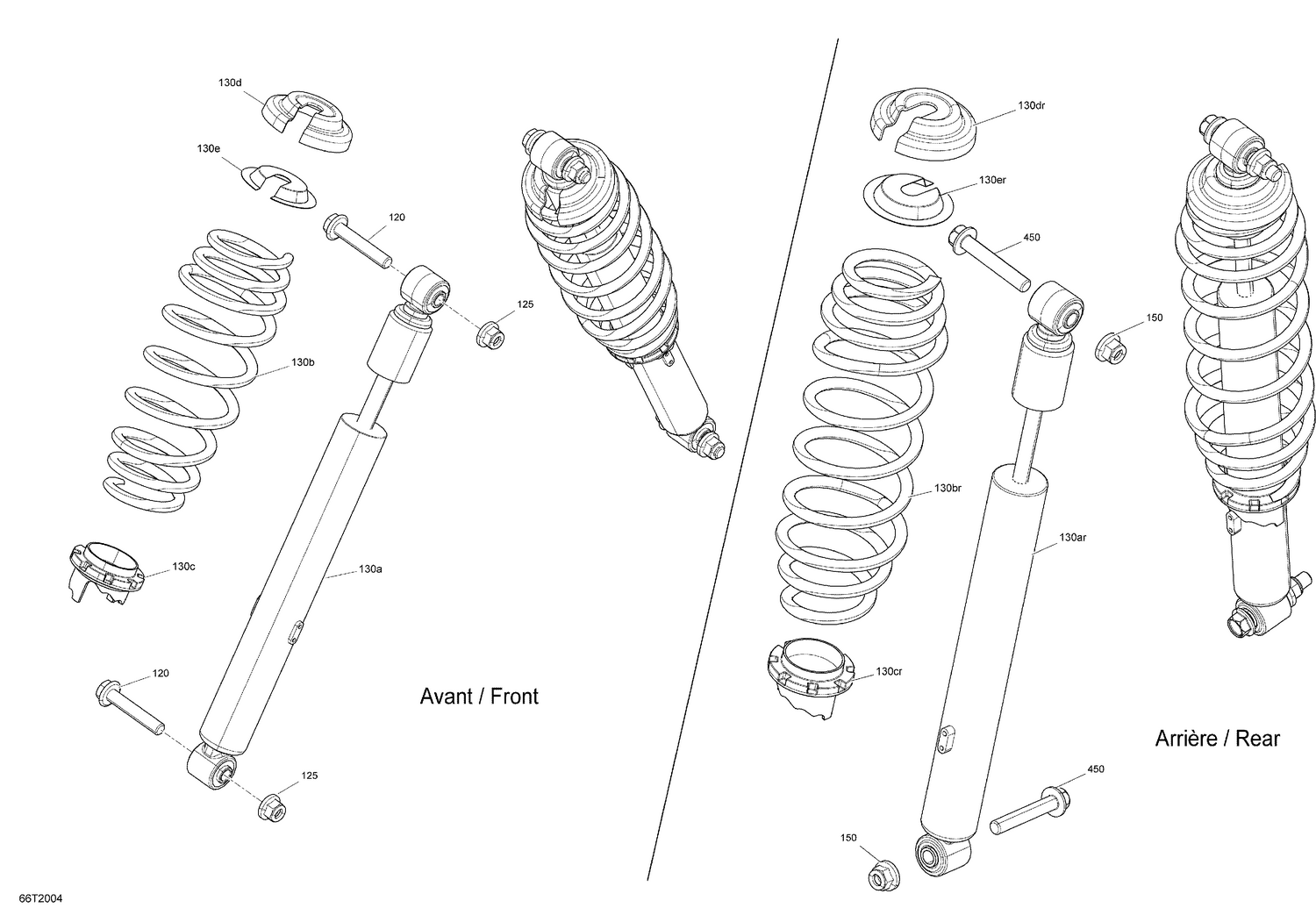

08- Shocks - DPS
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 120 | 207605546 | Hex. Flange Screw M10 X 55 |
| 125 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 130a | 706201163 | Front Shock |
| 130ar | 706001524 | Rear Shock |
| 130b | 706202675 | Black, Spring |
| 130br | 548874840 | Deep Black, Compression Spring This part replaces 706002543. |
| 130c | 706002356 | Adjuster Ring |
| 130cr | 706002356 | Adjuster Ring |
| 130d | 706200881 | Spring Stopper |
| 130dr | 706200881 | Spring Stopper |
| 130e | 706200785 | Cap |
| 130er | 706200785 | Cap |
| 150 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
