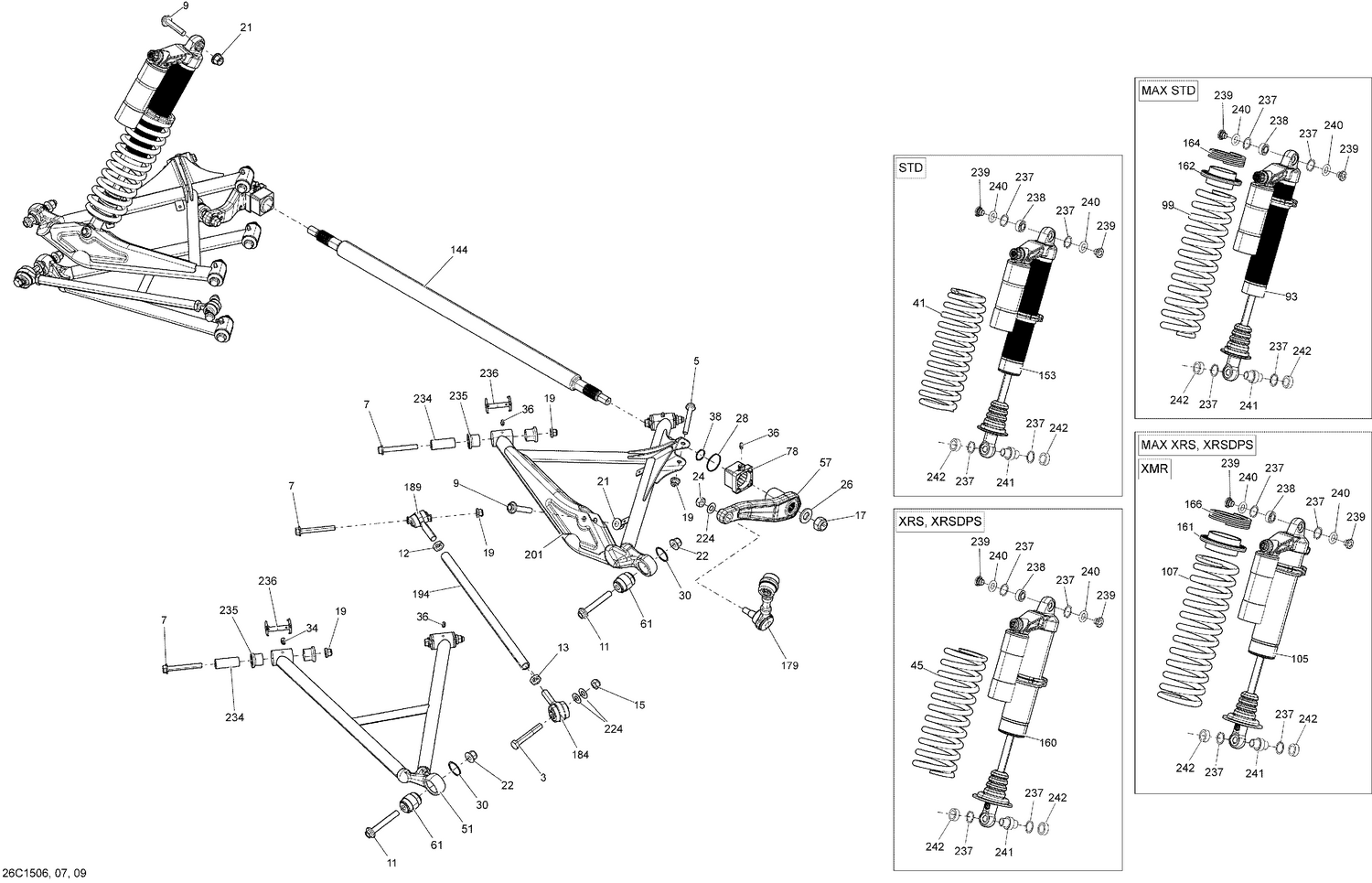

08- Rear Suspension _26C1509
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 207028046 | Hex. Screw M12 X 80 |
| 5 | 207607046 | Hex. Flange Screw M10 X 70 |
| 7 | 207608046 | Hex Flange Screw M10 X 80 |
| 9 | 207626046 | Hex. Flange Screw M12 X 60 |
| 11 | 207628546 | Hex. Flange Screw M12 X 85 |
| 12 | 232175411 | LH Hex. Lock Nut M14 |
| 13 | 232170411 | Hex. Jam Nut M14 |
| 15 | 232521416 | Elastic Stop Nut M12 |
| 17 | 232591414 | Elastic Stop Nut M18 |
| 19 | 233201436 | Hex. Flange Elastic Nut M10 |
| 21 | 233221416 | Elastic Flange Nut M12 |
| 22 | 233221416 | Elastic Flange Nut M12 |
| 24 | 250000047 | Hex. Flange Elastic Nut M12 |
| 26 | 250200045 | Washer |
| 28 | 293300100 | O-Ring |
| 30 | 293370093 | Retaining Ring |
| 34 | 293550056 | Grease Fitting 90° |
| 36 | 408200700 | Grease Fitting |
| 38 | 706000251 | Retaining Ring |
| 41 | XXX | Not Available As Spare Parts |
| 45 | XXX | Not Available As Spare Parts |
| 51 | 706001354 | Black LH Rear Lower Arm |
| 51 | 706001355 | Black RH Rear Lower Arm |
| 57 | 706001371 | Sway Bar Lever |
| 61 | 706001373 | Radial Joint |
| 78 | 706001402 | Sway Bar Housing |
| 115 | XXX | Not Available As Spare Parts |
| 144 | 706001625 | SWAY BAR - Call your local BRP dealership |
| 153 | XXX | Not Available As Spare Parts |
| 160 | XXX | Not Available As Spare Parts |
| 179 | 706001741 | LH Double Ball Joint |
| 179 | 706001742 | RH Double Ball Joint |
| 184 | 706001437 | Ball Joint |
| 189 | 706001798 | Ball Joint |
| 189 | XXX | Not Available As Spare Parts |
| 194 | 706002081 | Adjustment Rod |
| 224 | 706200281 | Hardened Washer This part replaces 250200086. |
| 233 | XXX | Not Available As Spare Parts |
| 234 | 706201590 | Sleeve |
| 235 | 706204409 | Suspension Arm Bushing This part replaces 706201659. |
| 236 | 706201660 | Wear Plate |
| 237 | 715900252 | Retaining Ring |
| 238 | 715900266 | Spherical Bearing |
| 239 | 715900267 | Internal Bushing |
| 240 | 715900268 | O-Ring Bushing |
| 241 | 715900330 | Spherical Bearing |
